Prodig
Stone Fork
Description

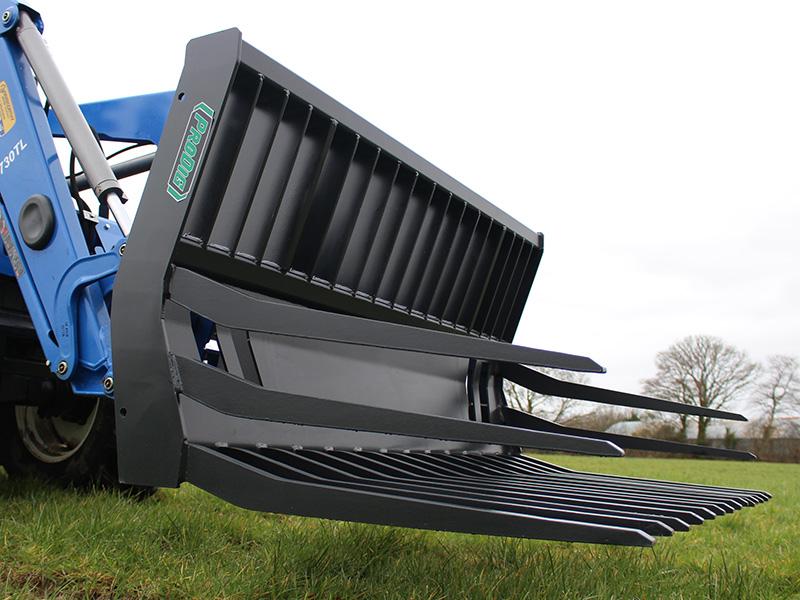

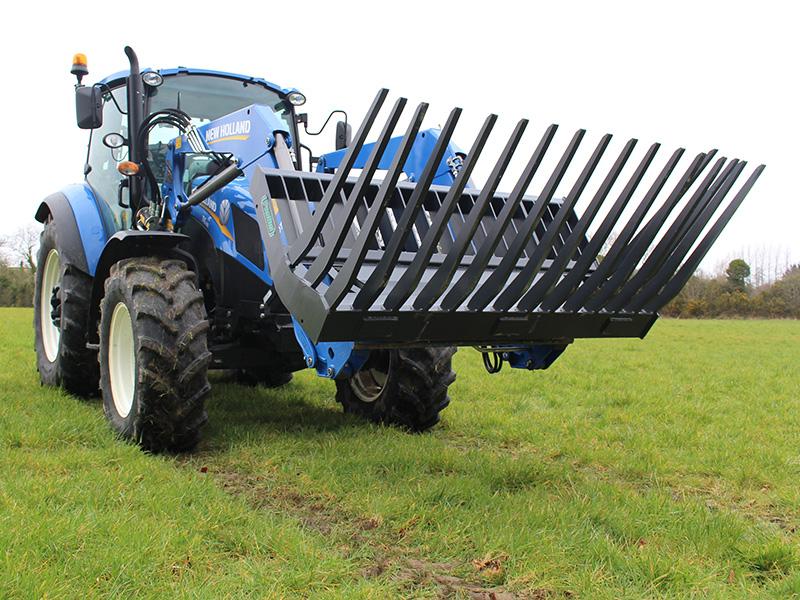

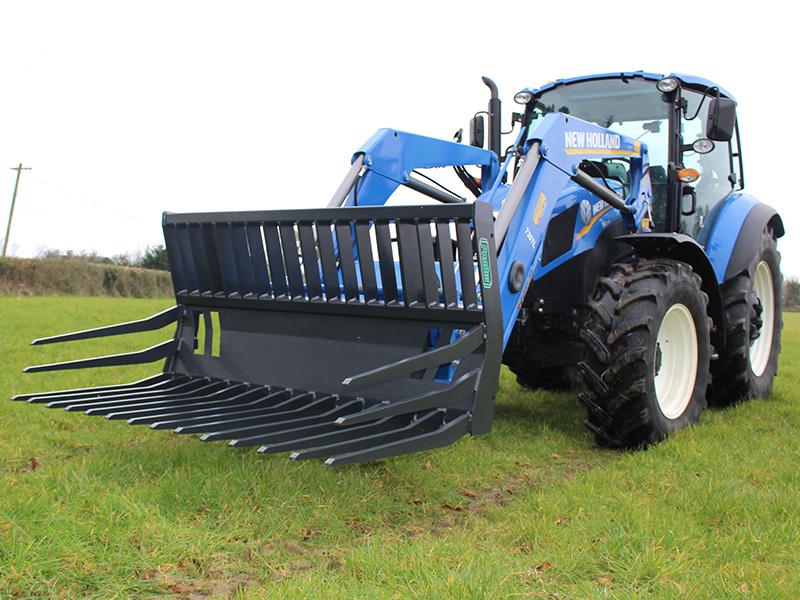

The Prodig Stone Fork has a uniquely designed Hardox cranked tine which allows the fork to move through soil more efficiently. The forks design allows it to be attached to a tractor’s three point linkage as well as front loader.

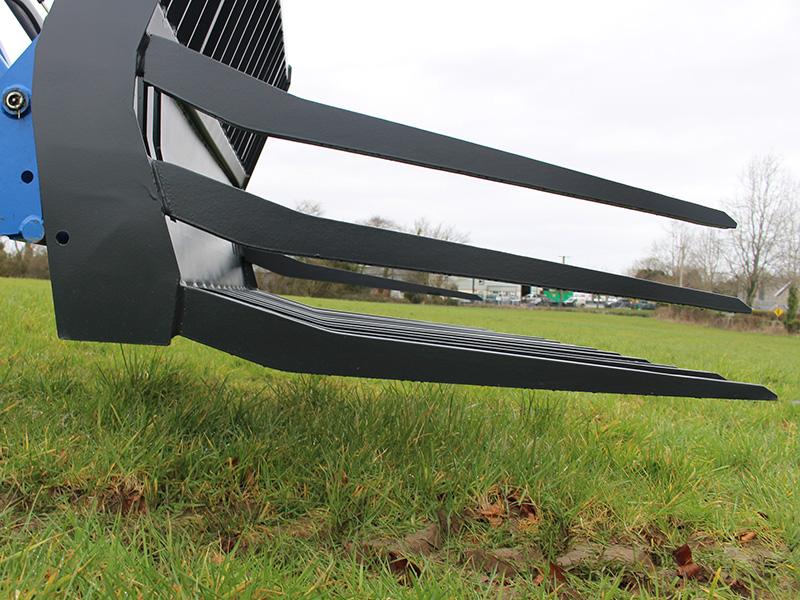

- Manufactured with unique cranked 25mm Hardox tines which easily slide under stones in soil.
- Forks available in widths from 1.8m to 2.5m.

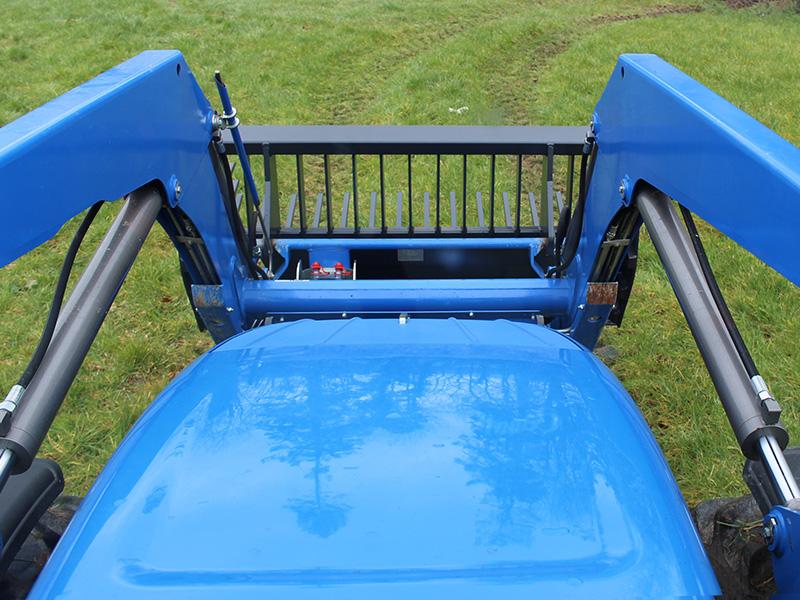

- Heavy duty fork back with top vision grid to view all tines when loading.
- Engineered and fabricated bottom section for superior structural strength and rigidity.

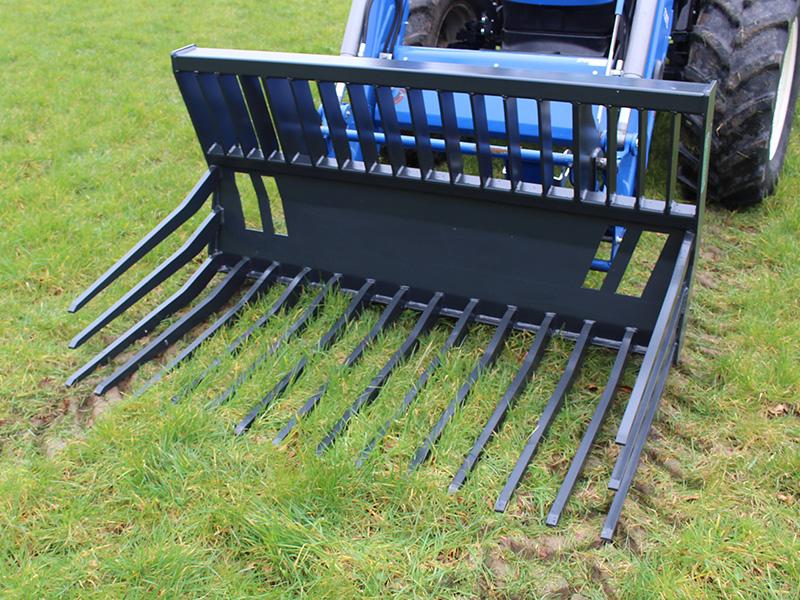

- Fitted with side tines for better load retention.

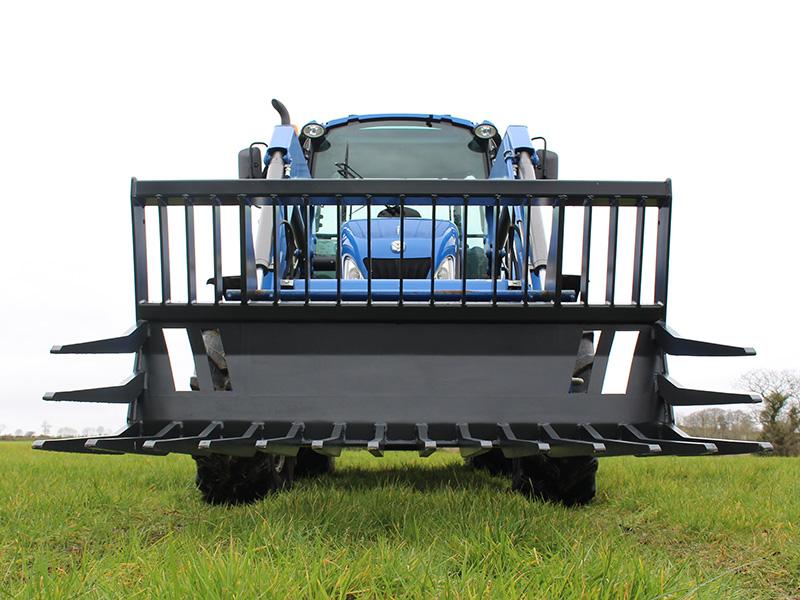

- See through fork construction to aid in visibility during use.

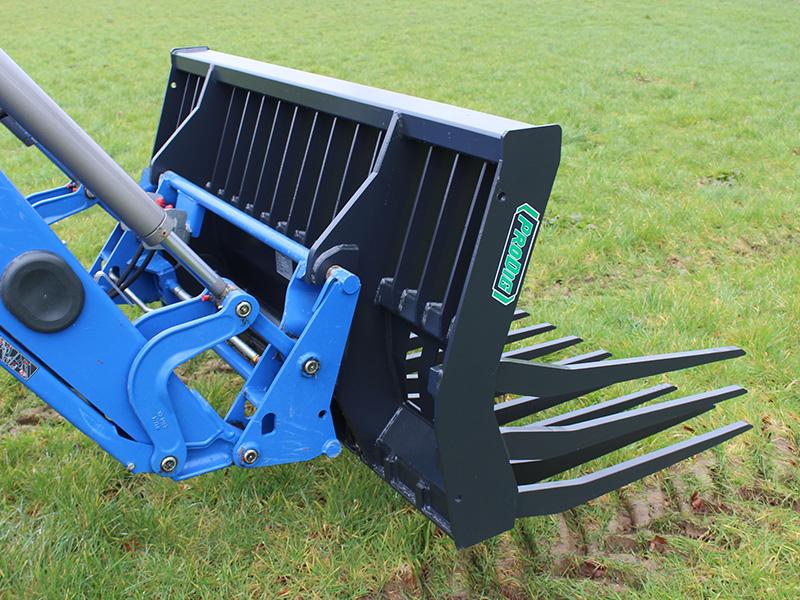

- Available with bolt on hitch system to fit all machines.
- Max machine lifting capacity: 5000kg
Technical Data
| STONE FORK | SF1800 | SF2200 | SF2500 | |
| Width (mm) | A | 1800 | 2200 | 2500 |
| Height (mm) | B | 885 | 885 | 1150 |
| Depth (mm) | C | 1145 | 1145 | 1145 |
| Weight (kg) | 390 | 440 | 533 | |
| Back (mm) | 6 | 6 | 6 | |
| Tine lenght (mm) | 996 (39”) | 996 (39”) | 996 (39”) | |
| Tine Width (mm) | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | |
| Number of tines | 18 | 22 | 25 | |
| Tine spacing | 100 | 100 | 100 |
All measurements approx. (±5mm, ±5kg).
Weight includes Bolt On Frame.
Weight excludes brackets as these vary.
