Pallet Forks
Description

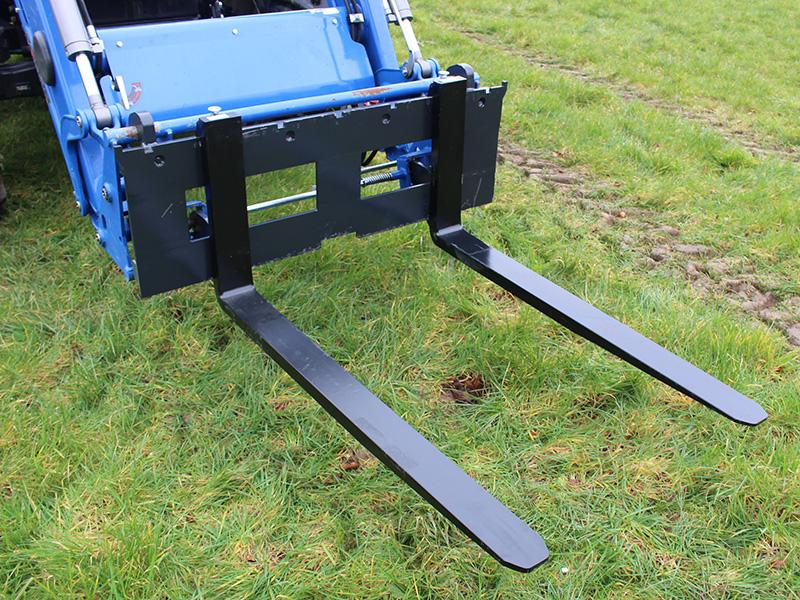

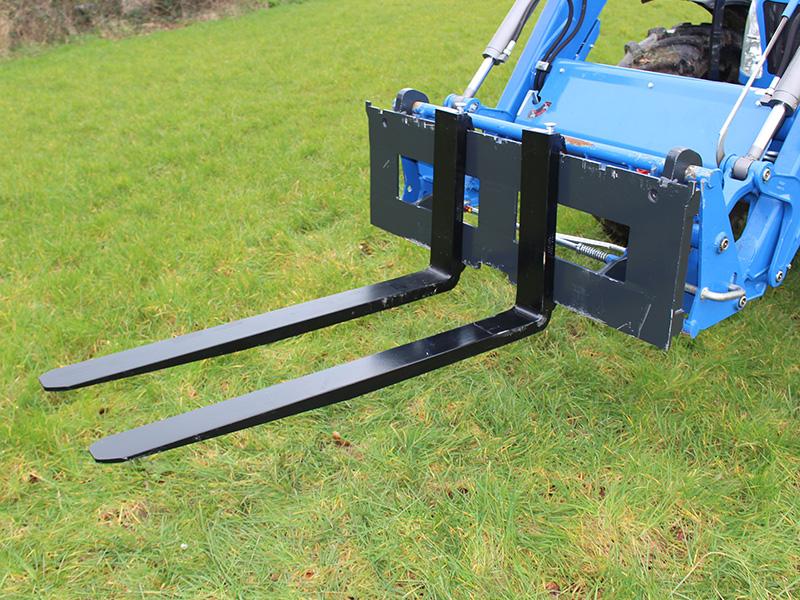

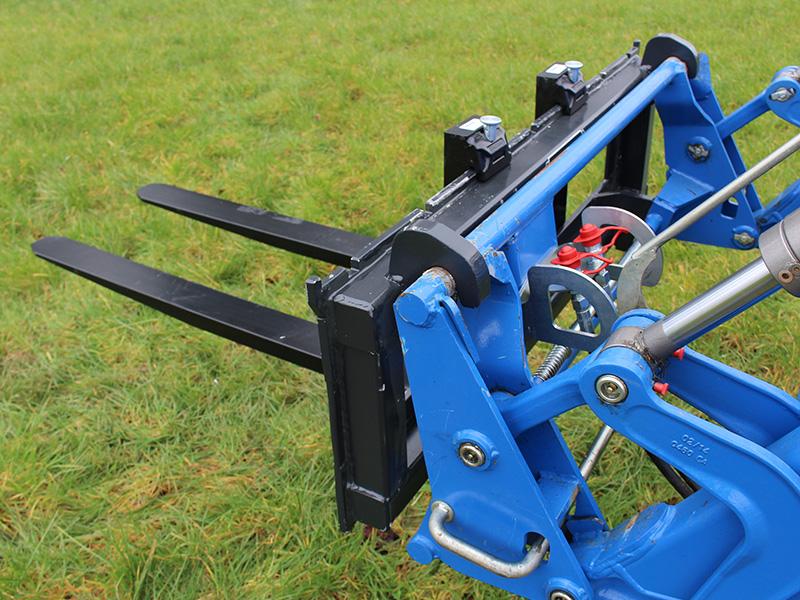

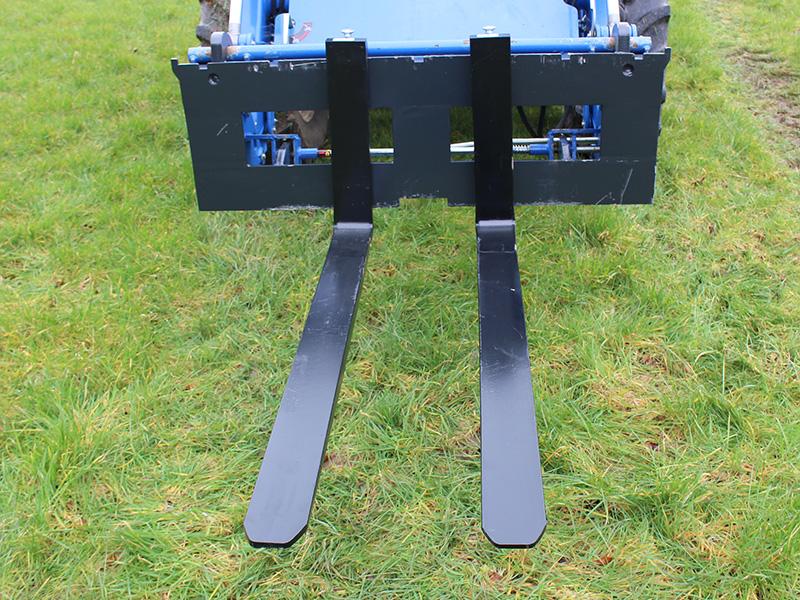

The Prodig Pallet Forks are a heavy-duty certified set of forks that can be used in the Agri, construction and recycling sectors.
- Ideal attachment for Tractors and Industrial Loaders for safe loading and unloading.
- Available from 2 tonne up to 10 tonne.
- Fully certified forks with spring loaded locking pins for secure width adjustment.
- Heavy duty fork back with heavy top and bottom rail.

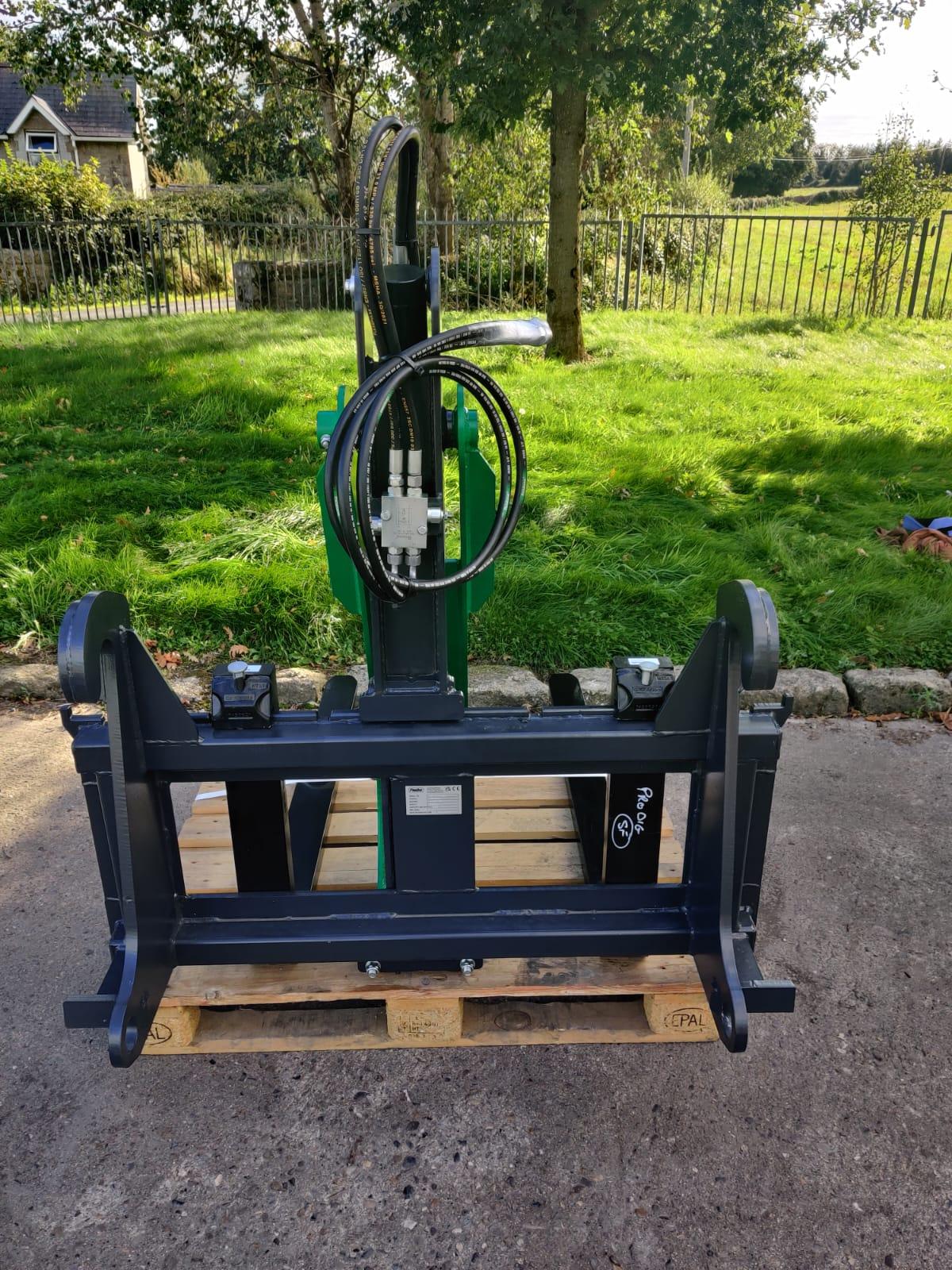

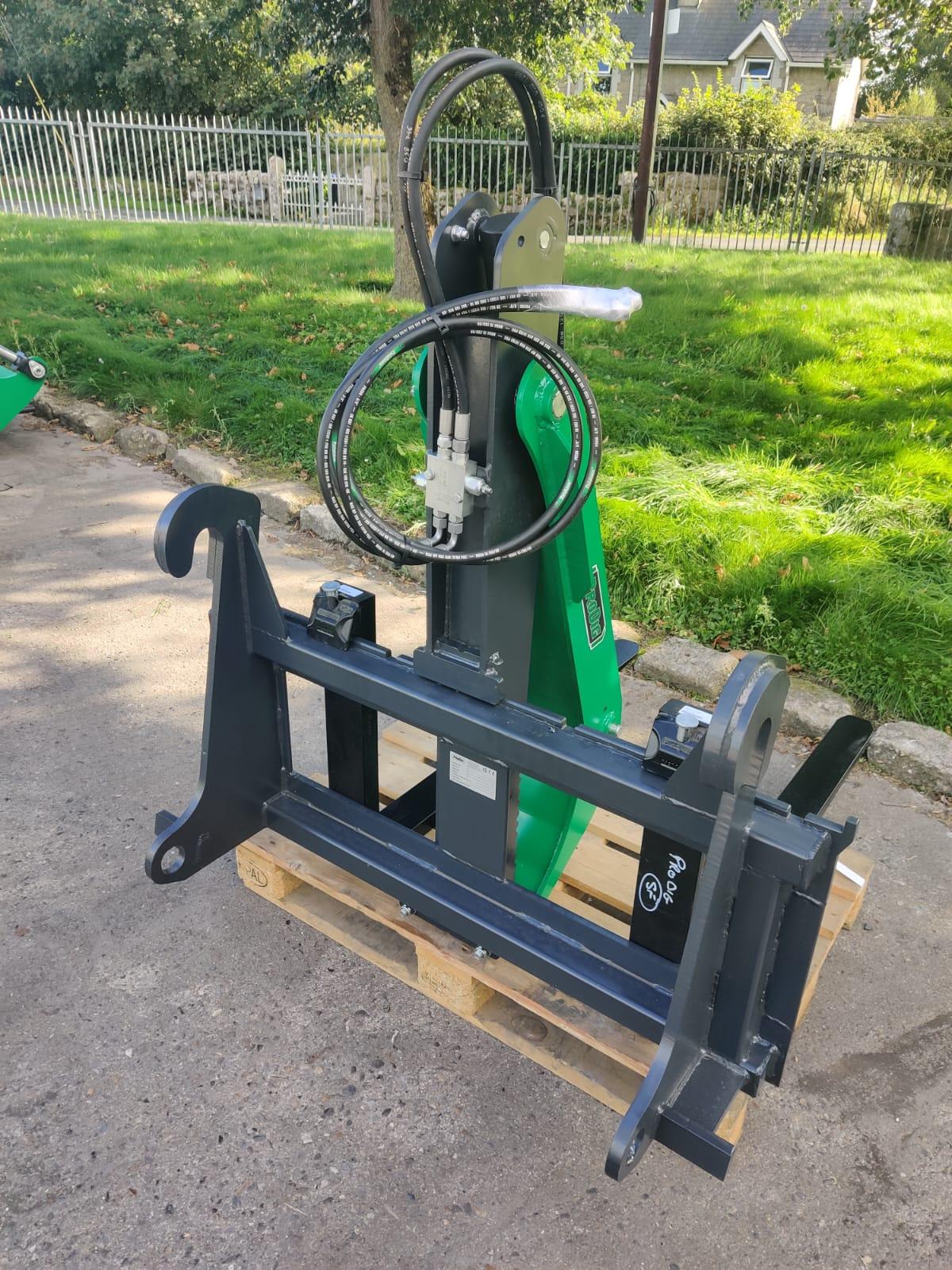

- Welded hitch brackets to suit all machines including excavators.

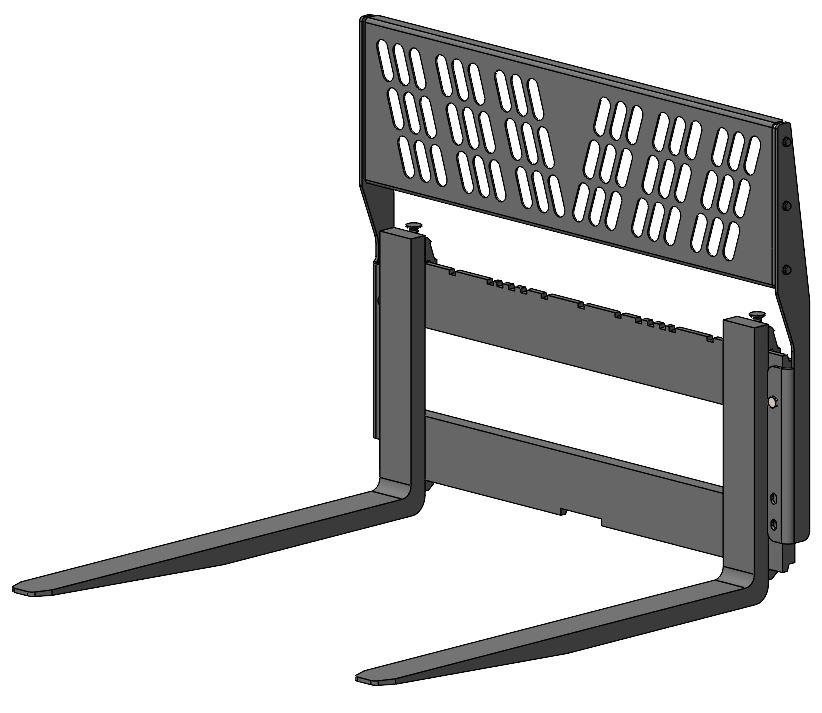

- Optional bolt on spill frame load guard can be fitted to any type of fork carriage.

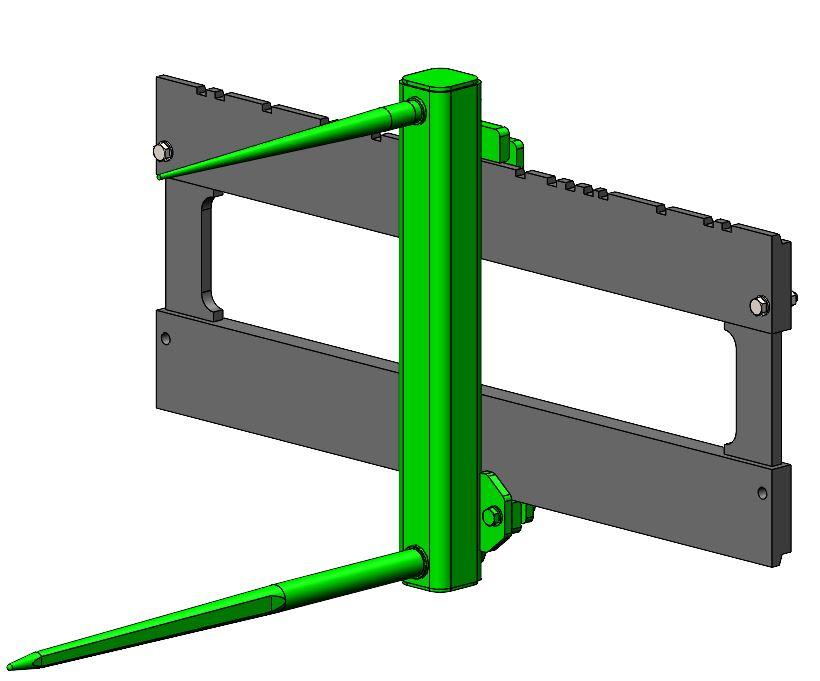

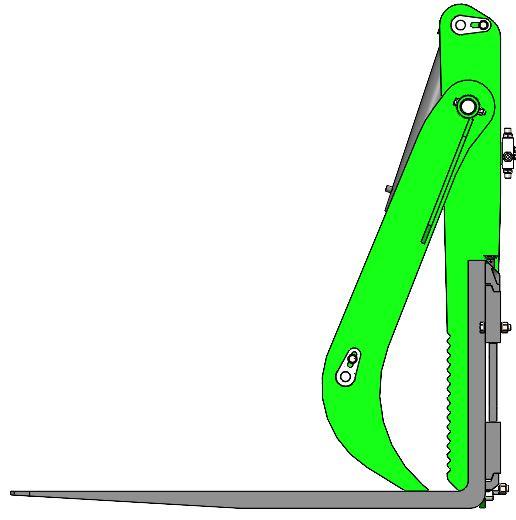

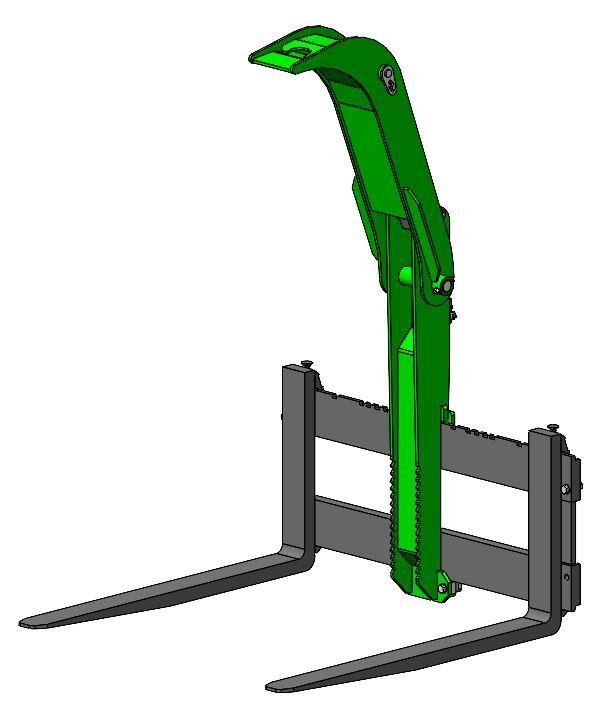

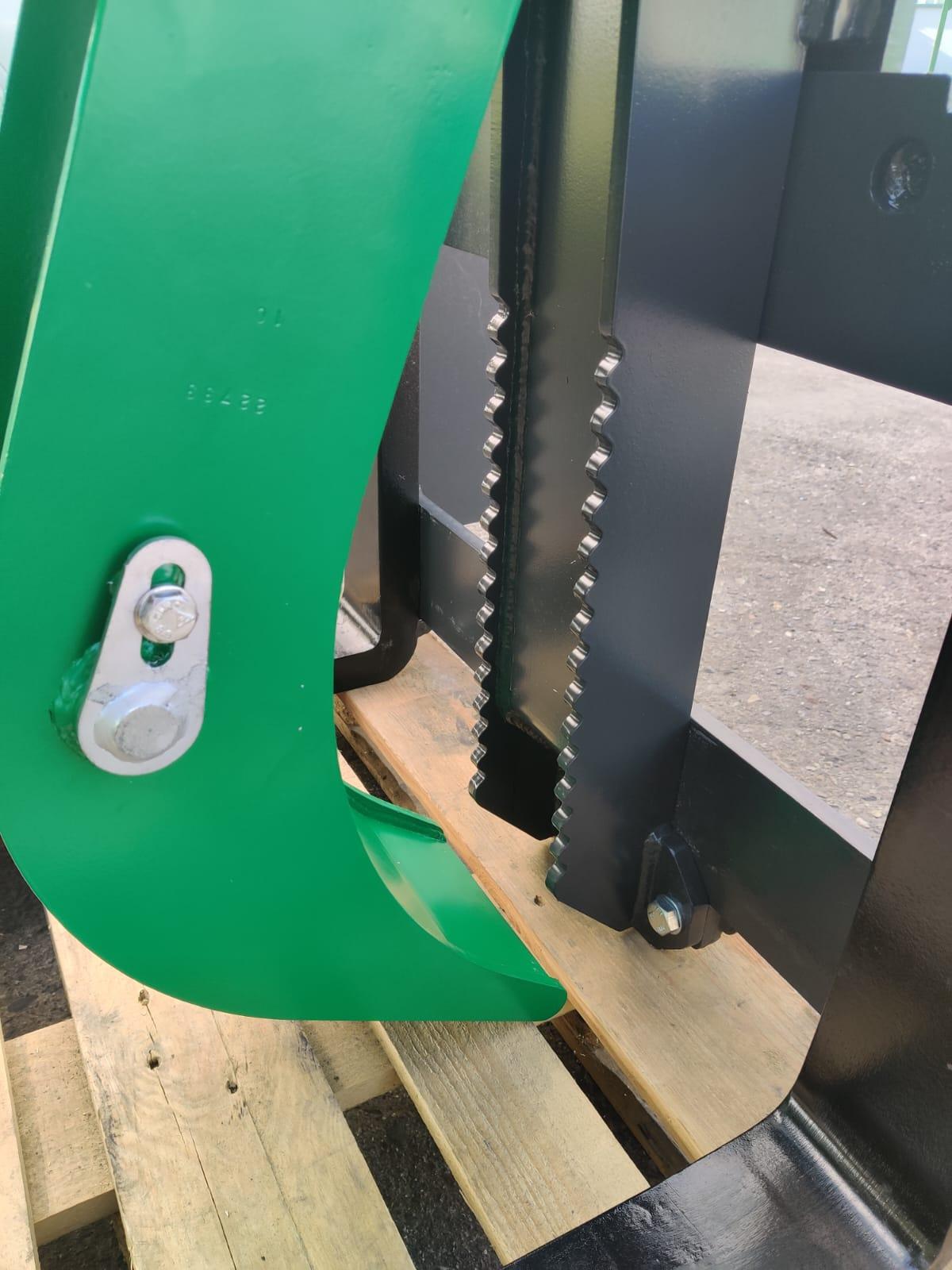

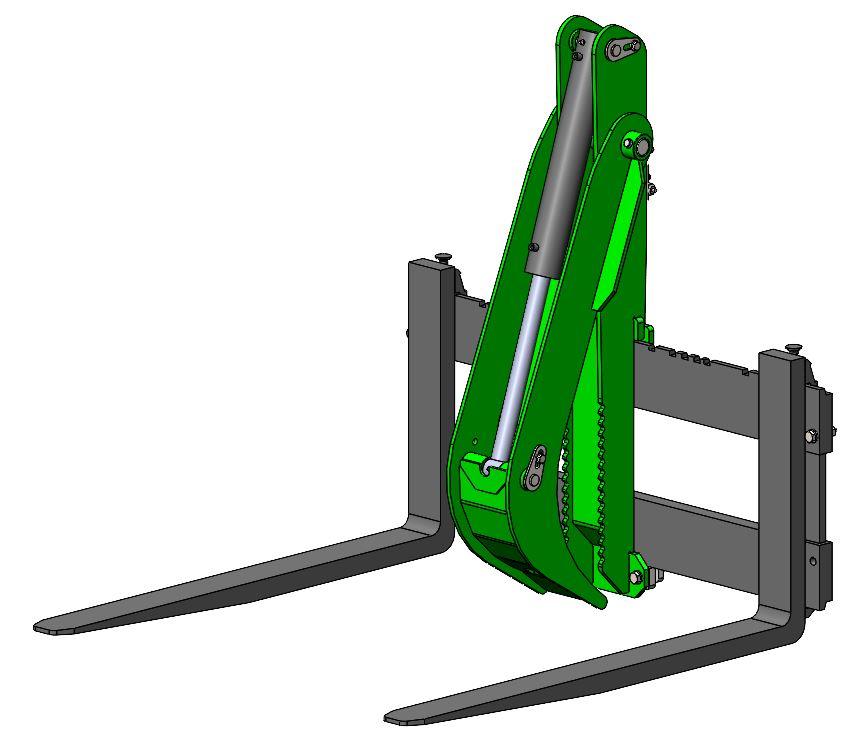

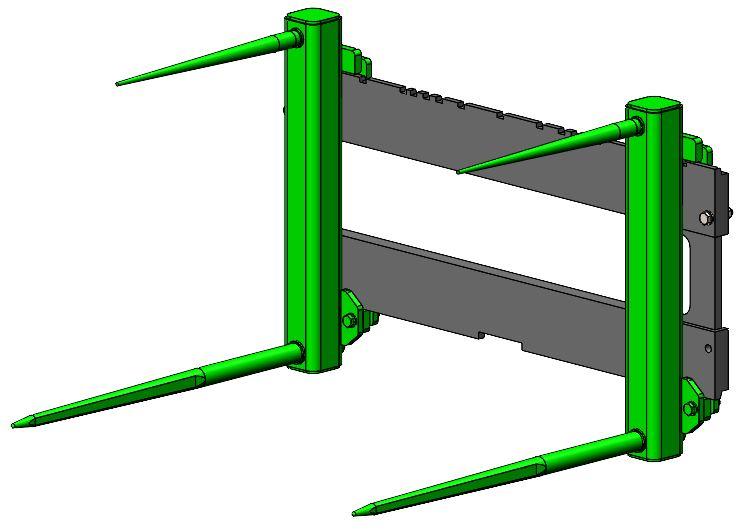

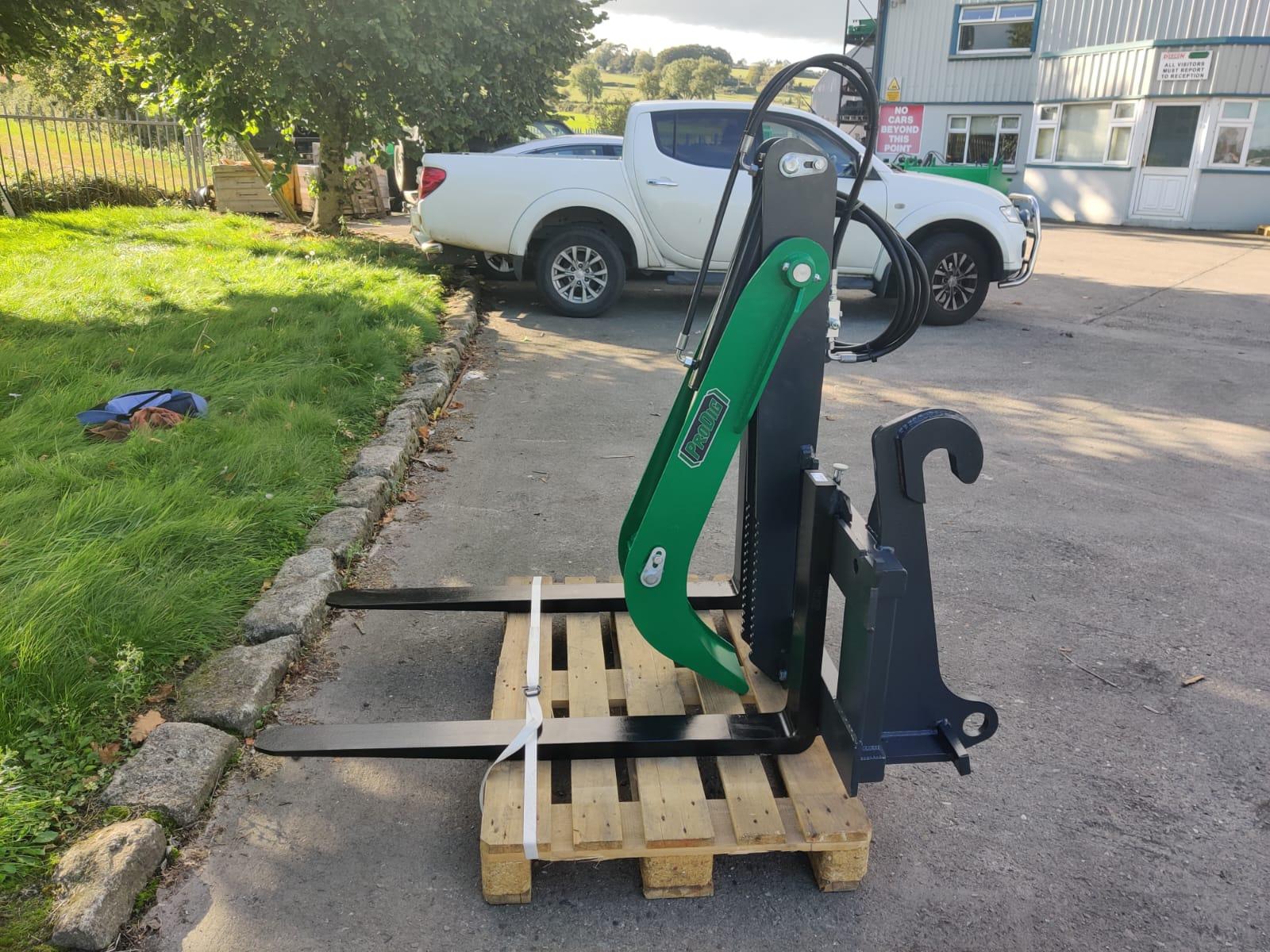

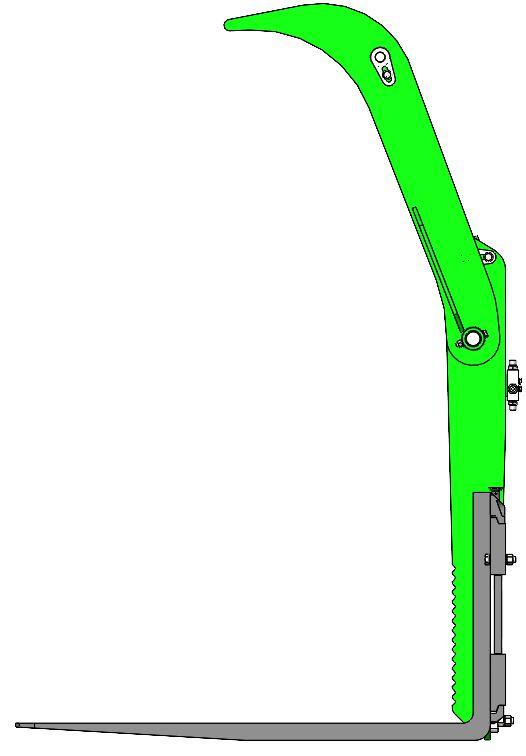

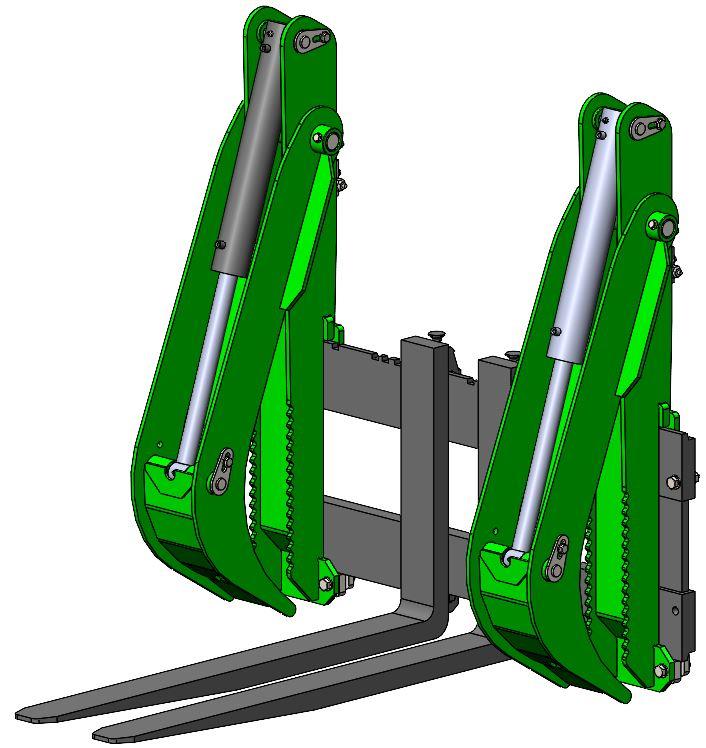

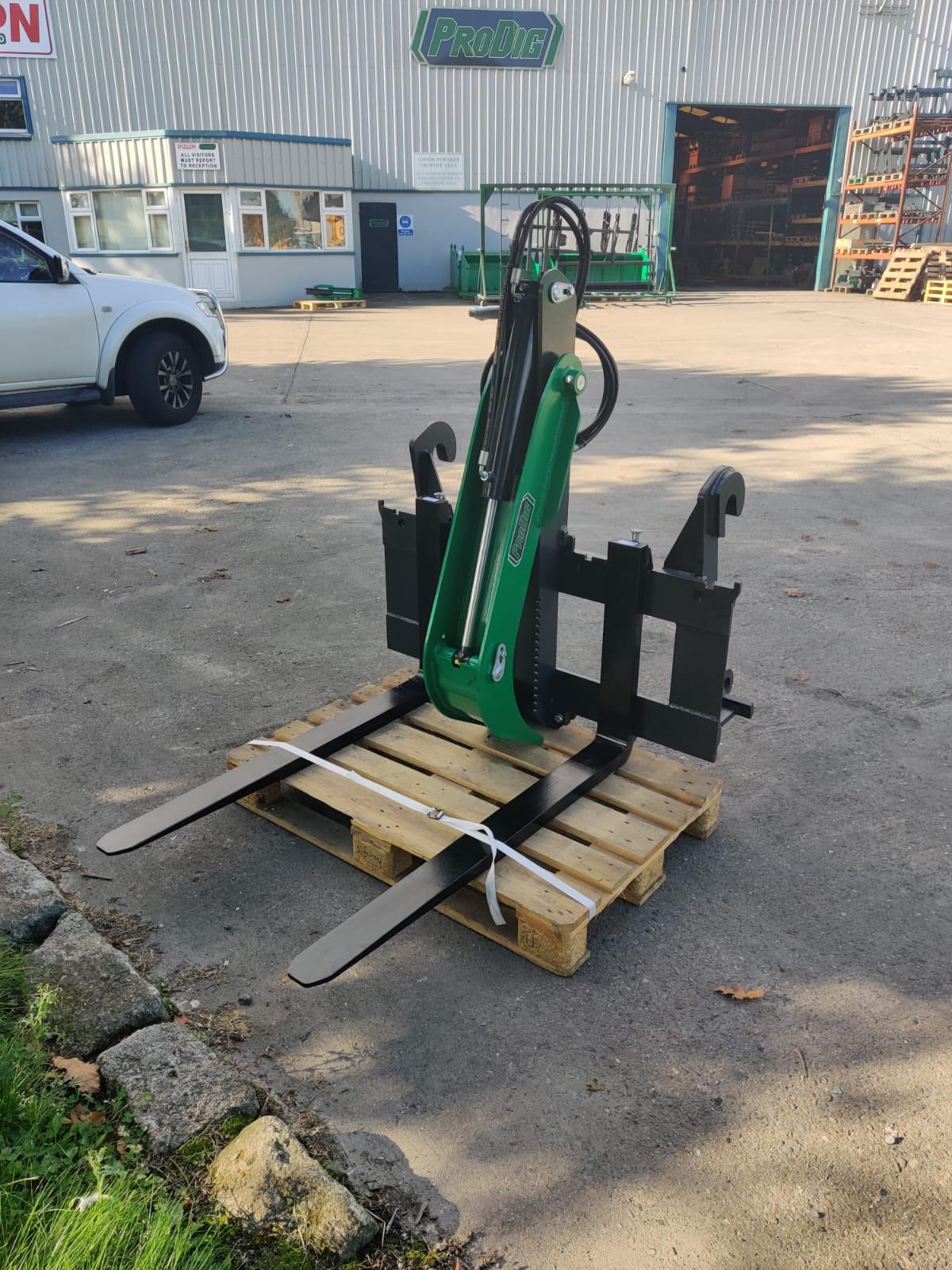

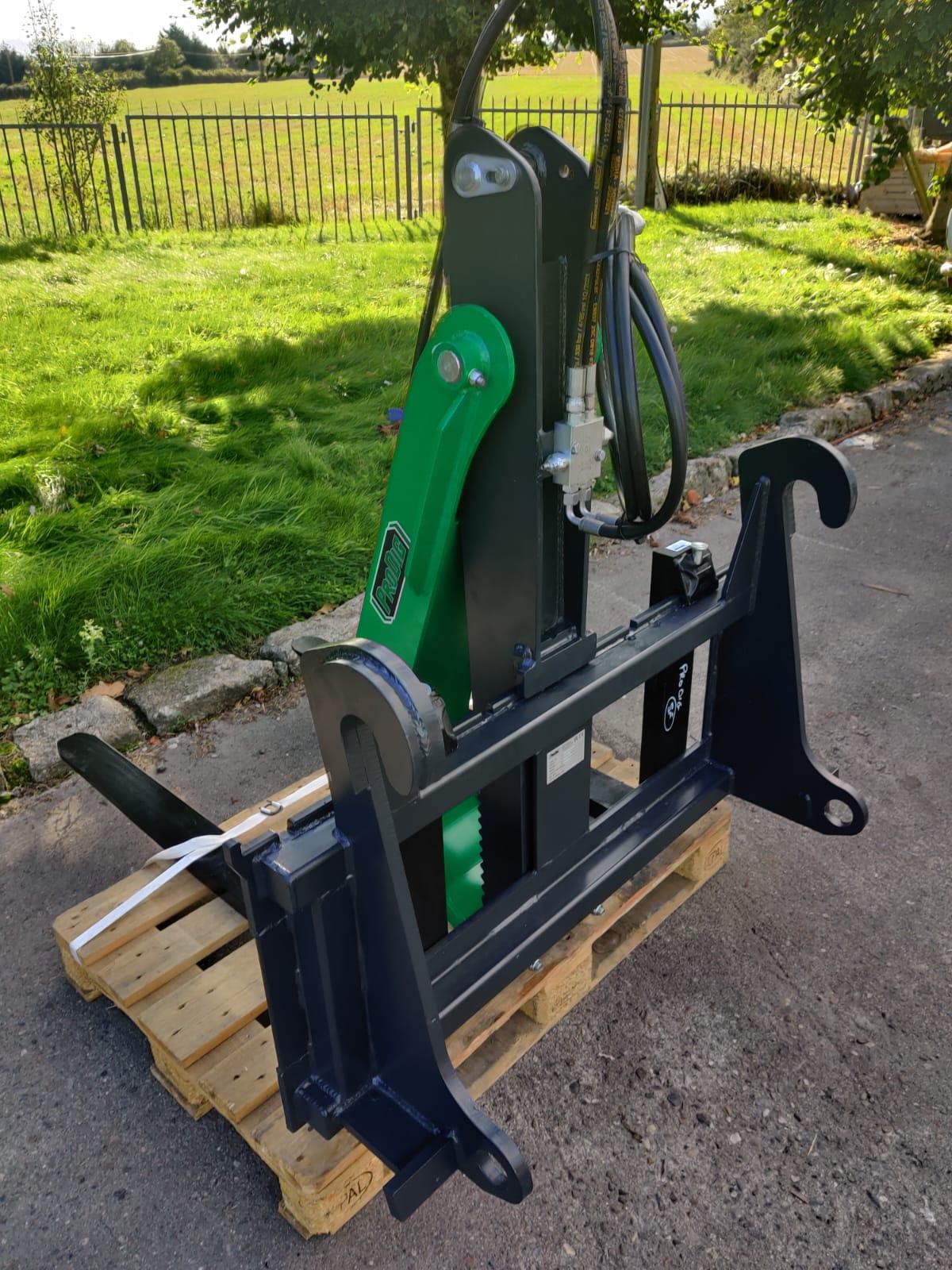

- Log grab and bale spike can be fitted to any class 2 or 3 carriage frame. Can be sold separately.
- All forks and frames comply to ISO 2328.
Technical Data
| Pallet Forks | PF 2000 | PF 3000 | PF 4900 | PF 7000 | PF 10000 |
| Spec of Fork Carriage | |||||
| Carriage Class (ISO 2328) | Class 2 | Class 3 | Class 3 | Class 4 | Class 4 |
| Height (mm) | 410 | 510 | 510 | 635 | 635 |
| Width (mm) | 1250 | 1250 | 1250 | 1250 | n/a |
| Standard Fork size (mm) | Class 2A -100 x 40 x 1200 | Class 3A -100 x 45 x 1200 | Class 3A – 120x60x1200 | Class 4A – 150x60x1200 | Class 4A – 150x75x1200 |
| Max Lif Capacity (KG) | 2000 | 3000 | 4900 | 7000 | 10000 |
| Log Grab Weight (kg) | 117 | 117 | 117 | n/a | n/a |
| Bale Spike Weight (kg) | 34 | 37 | 37 | n/a | n/a |
| Bolt On Spill Frame Weight (kg) | 25 | 25 | 25 | n/a | n/a |
All measurements approx (±5mm, ±5kg), Bracket weights vary
