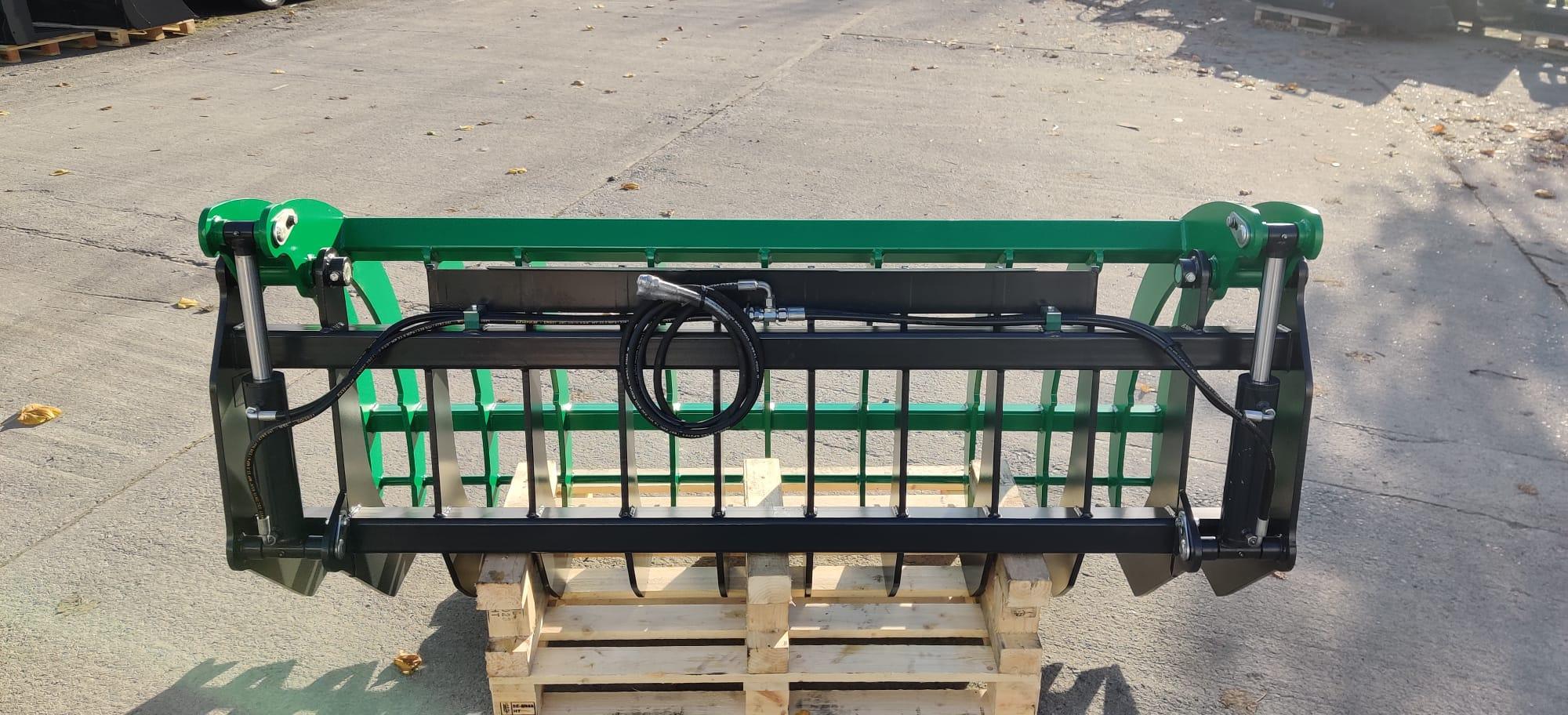

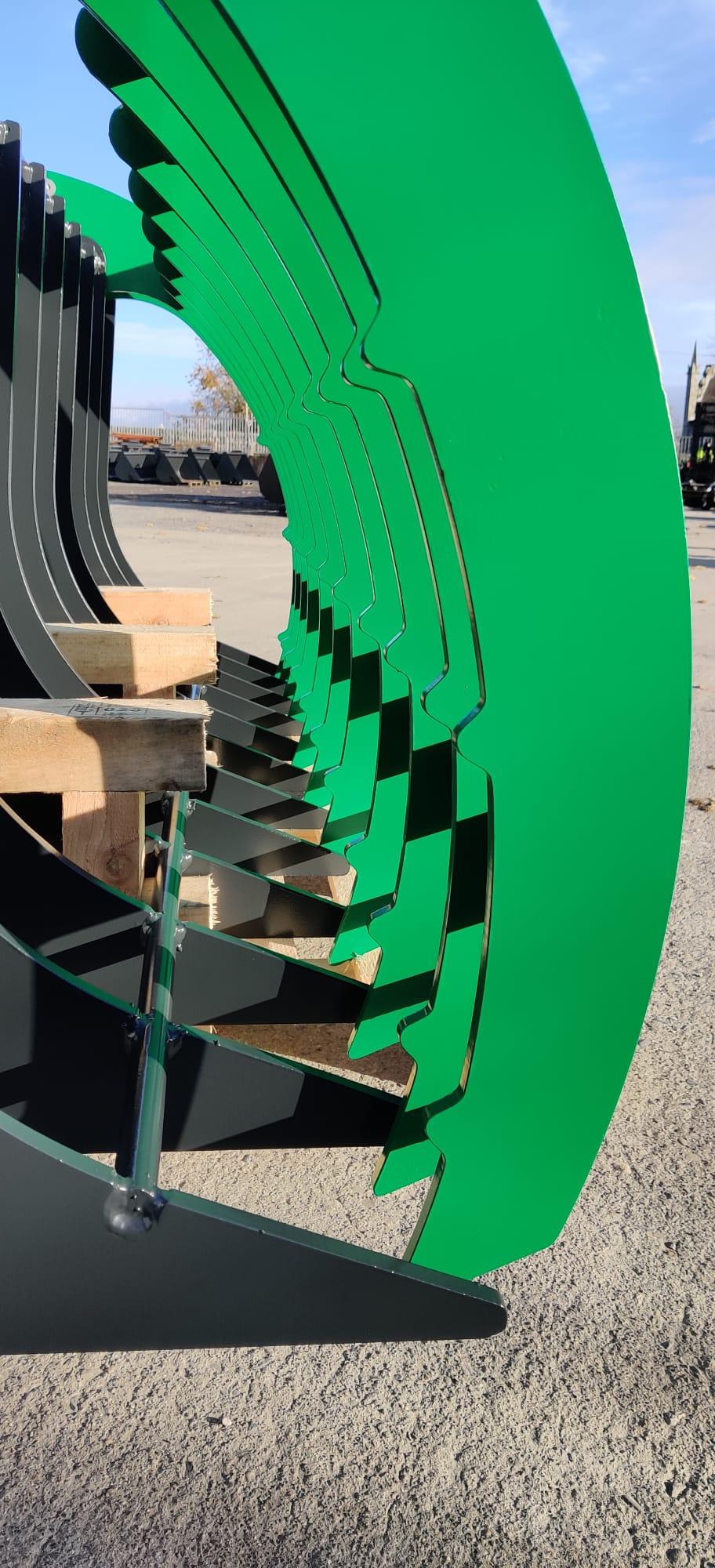

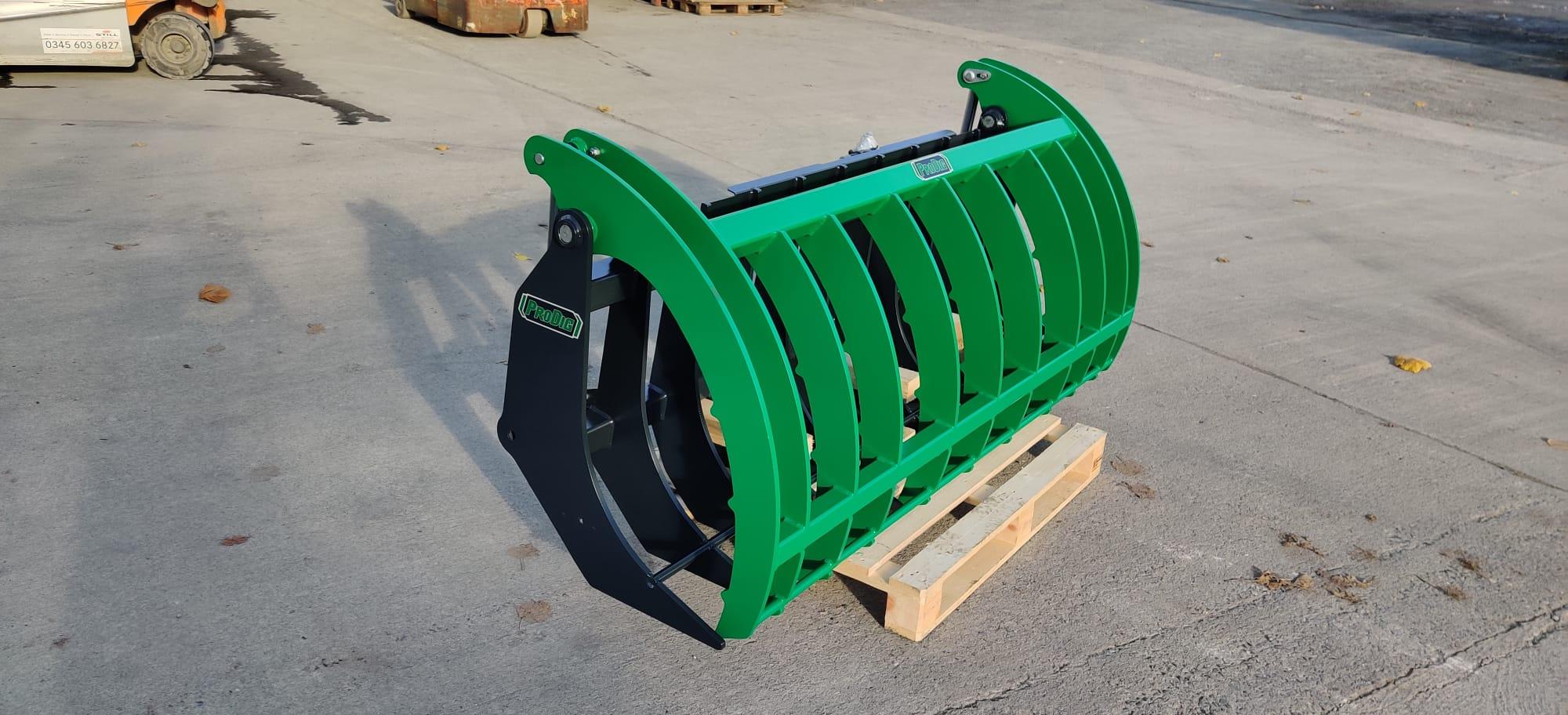

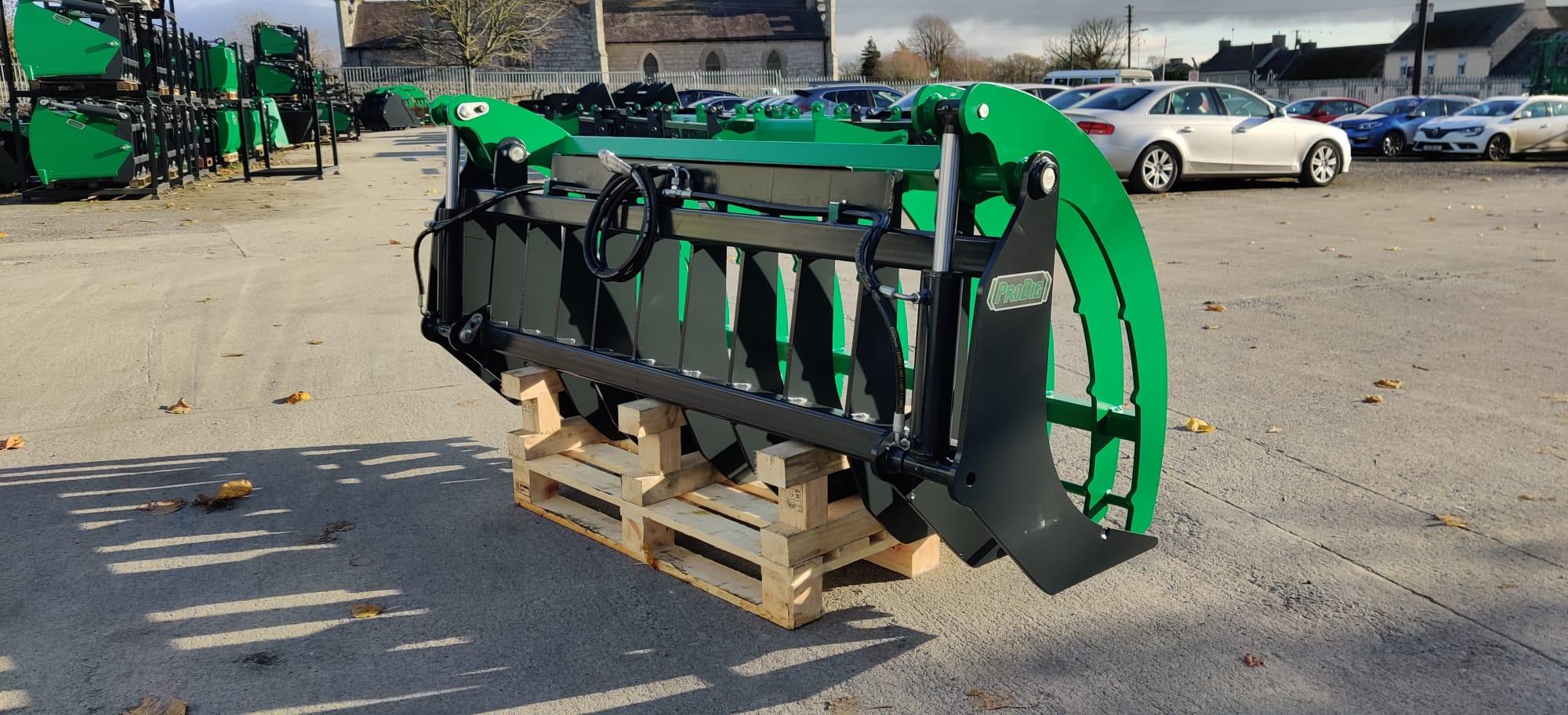

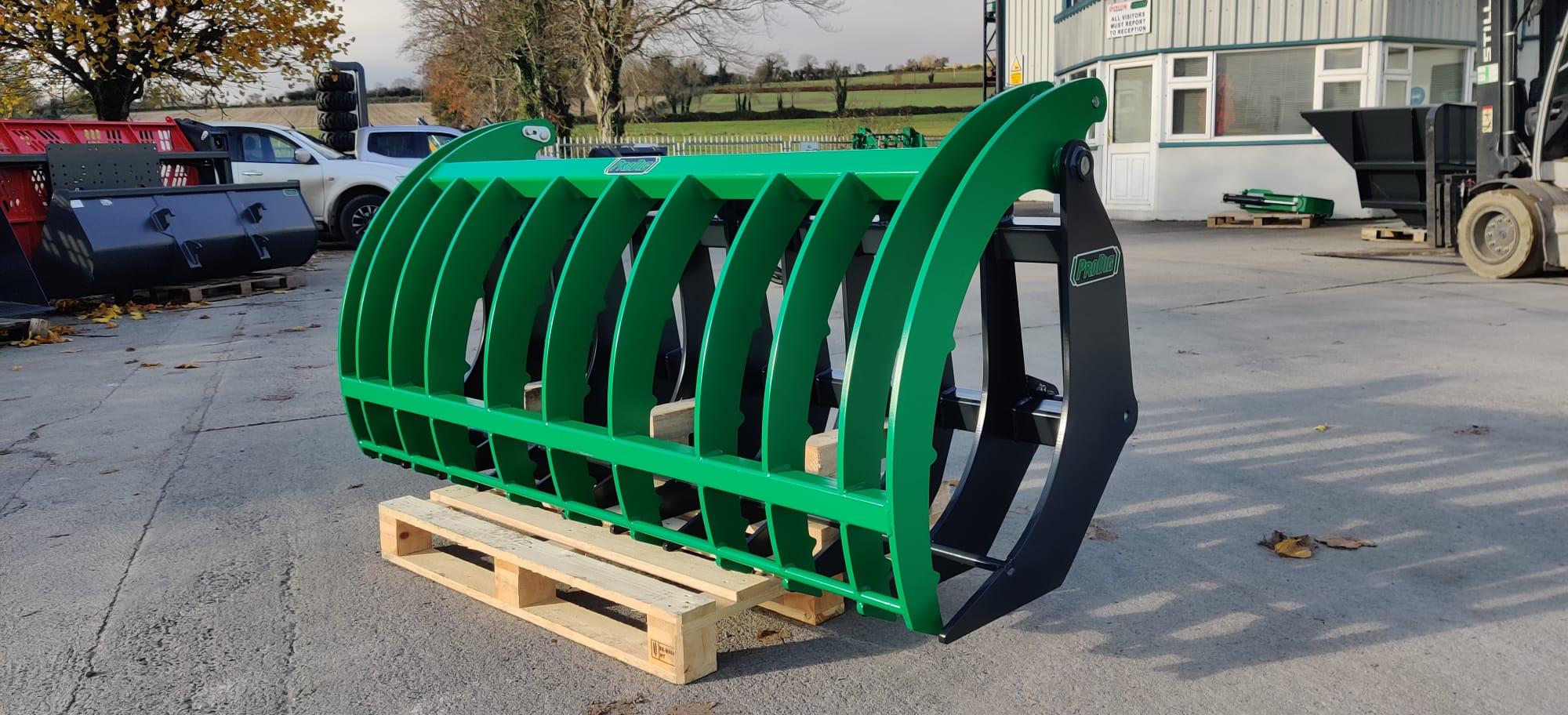

Root Rake

Description

The Prodig Root Rake is designed specifically for clearing land, ground leveling, and moving materials away. The root rake can be used for a number of applications & tasks, these include: moving rocks, logs and hay bales, root rake, removal of pruning’s & rubbish and much more.

• Root Rakes are available in widths from 1.8m to 2.5m.
• Ideal for efficient handling rocks, logs, hay bales, root rake, pruning’s, rubbish, etc.
• Wide opening grab for large items (1300mm)
• Heavy duty 15mm Hardox used in grapple and fork tine construction.
• Interlocking tines to provide additional grip when dealing with smaller items.
• See through fork construction to aid in visibility during use.

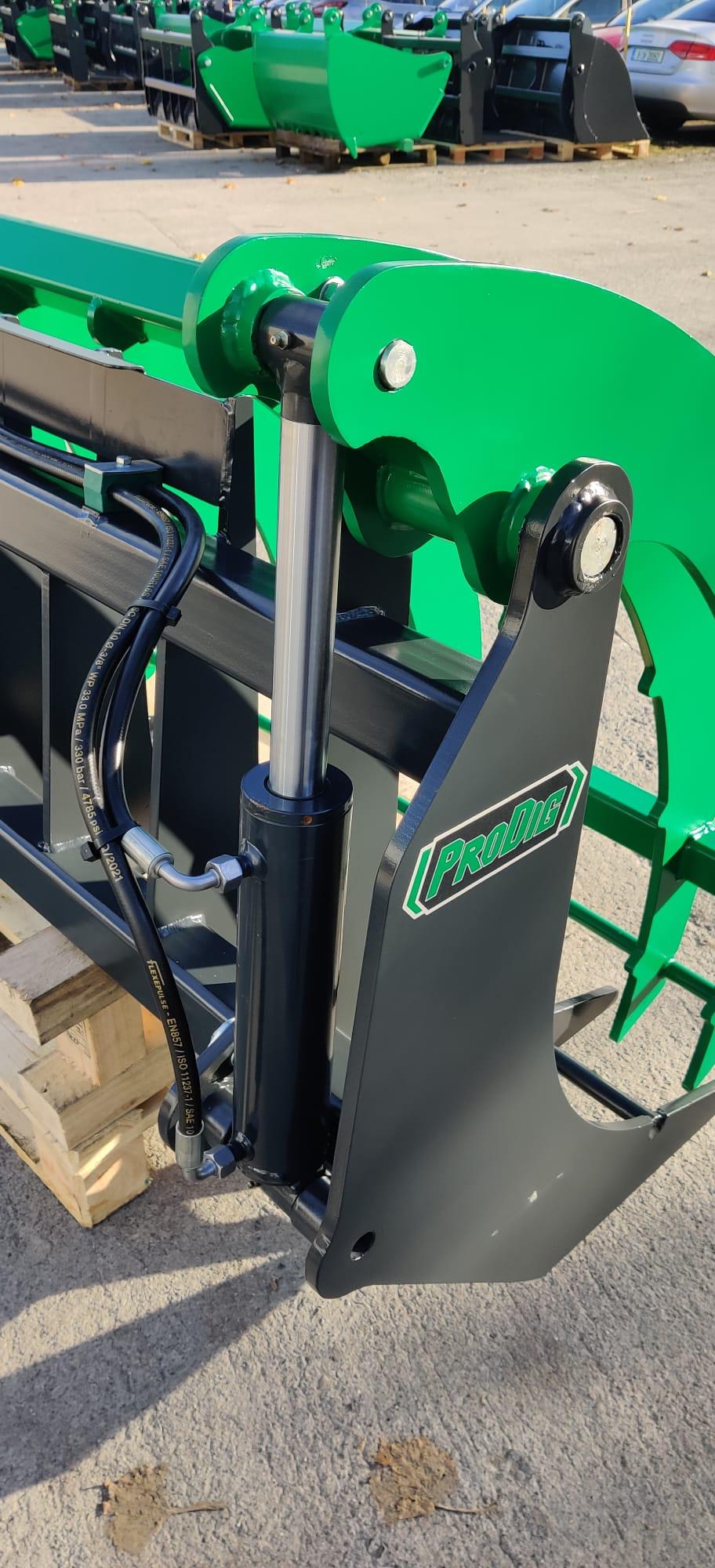

• Rear mounted hydraulic cylinders to protect the cylinders and prevent damage from material.
• Tine tips braced to provide additional support at the end of the tine to prevent bending.
• 40mm pivot pins.
• All moving parts fitted with greasing points.
• Bolt on hitch brackets to suit all machines.
• Max machine lifting capacity: 5000kg

Technical Data

All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve.
**This information depends on the type of material and serves as guidance only.
