Prodig

Push Off Folding Grass Fork

$5,555.00 $6,666.00
Save 17%
Enquire Now

Description

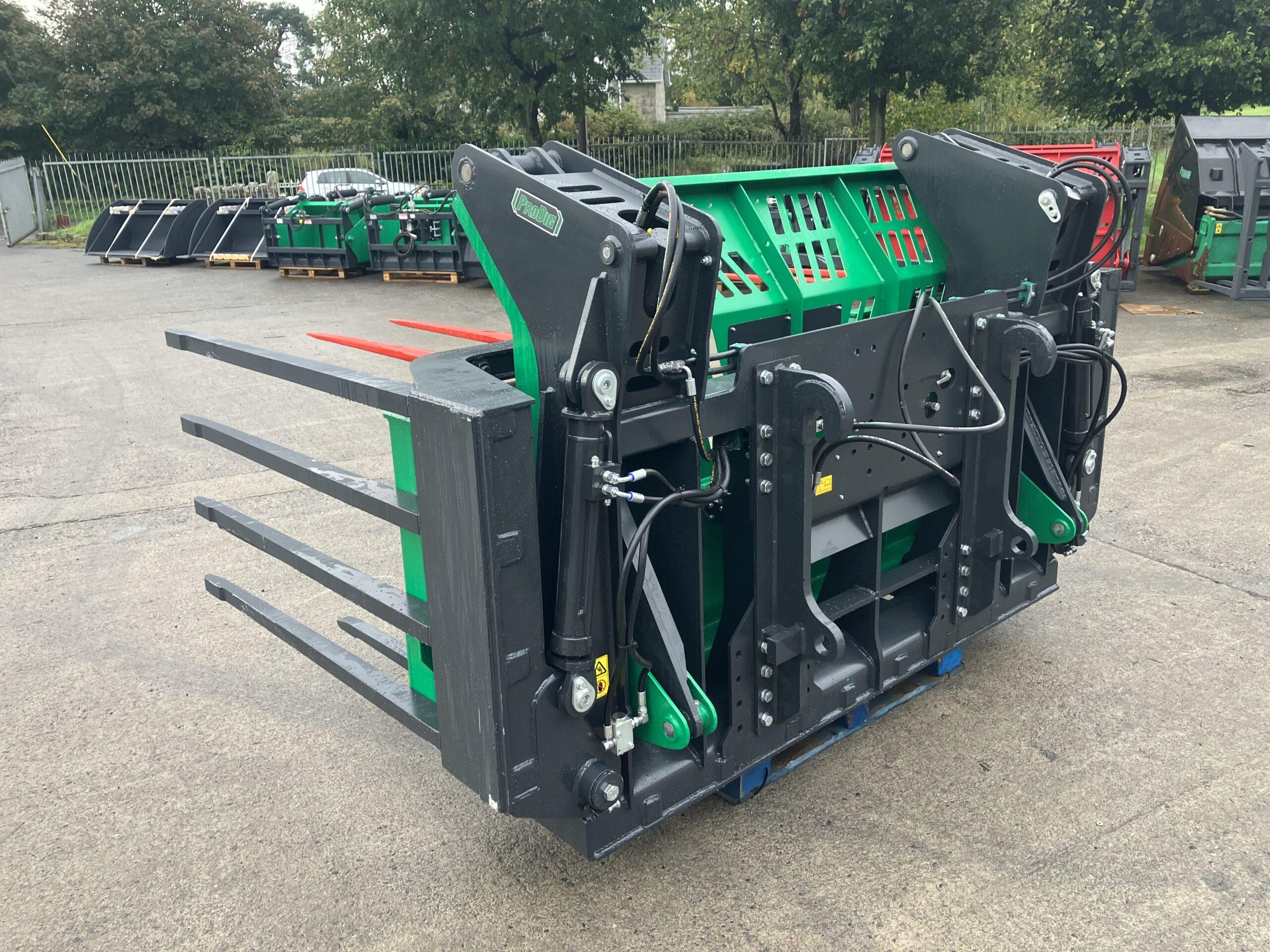

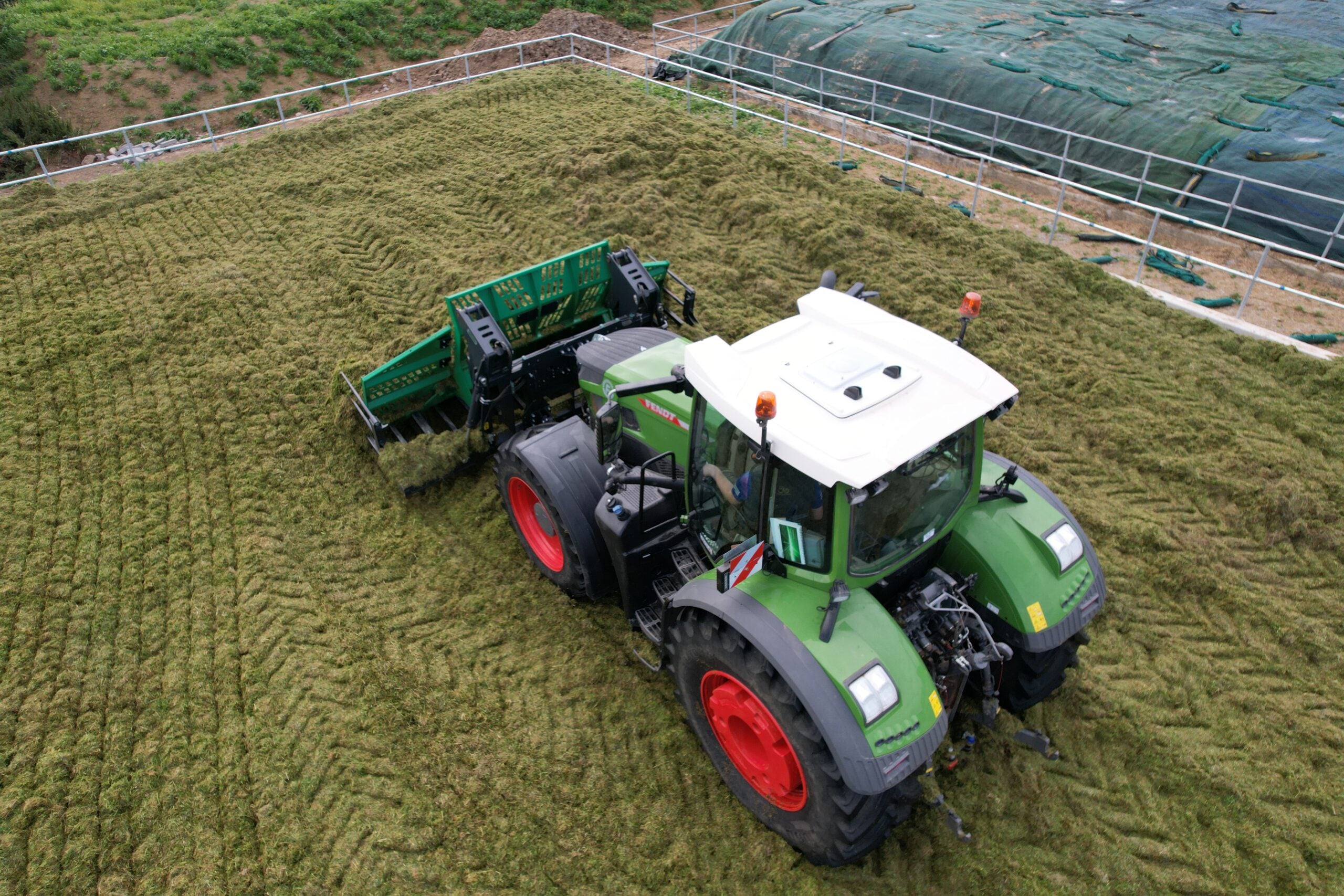

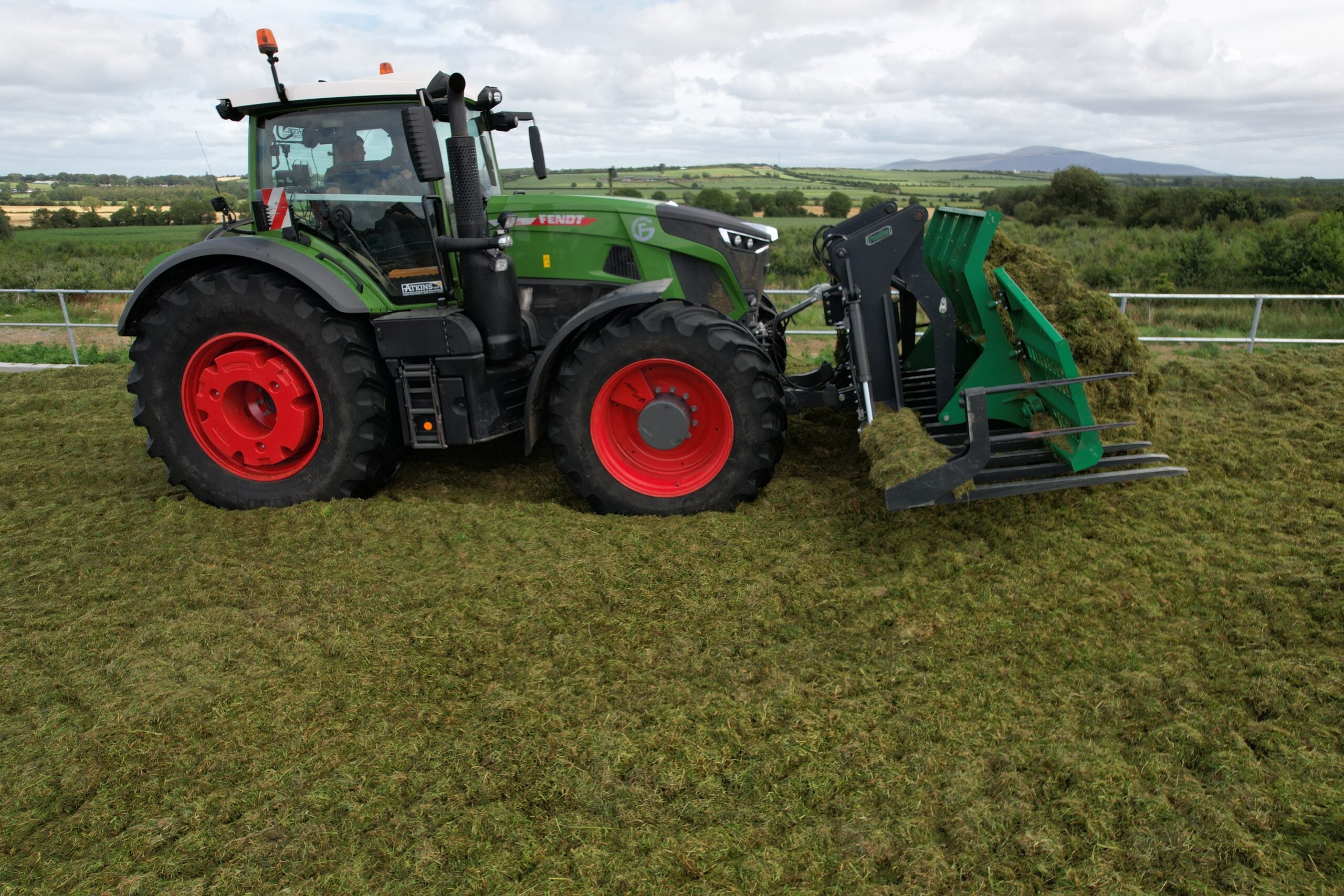

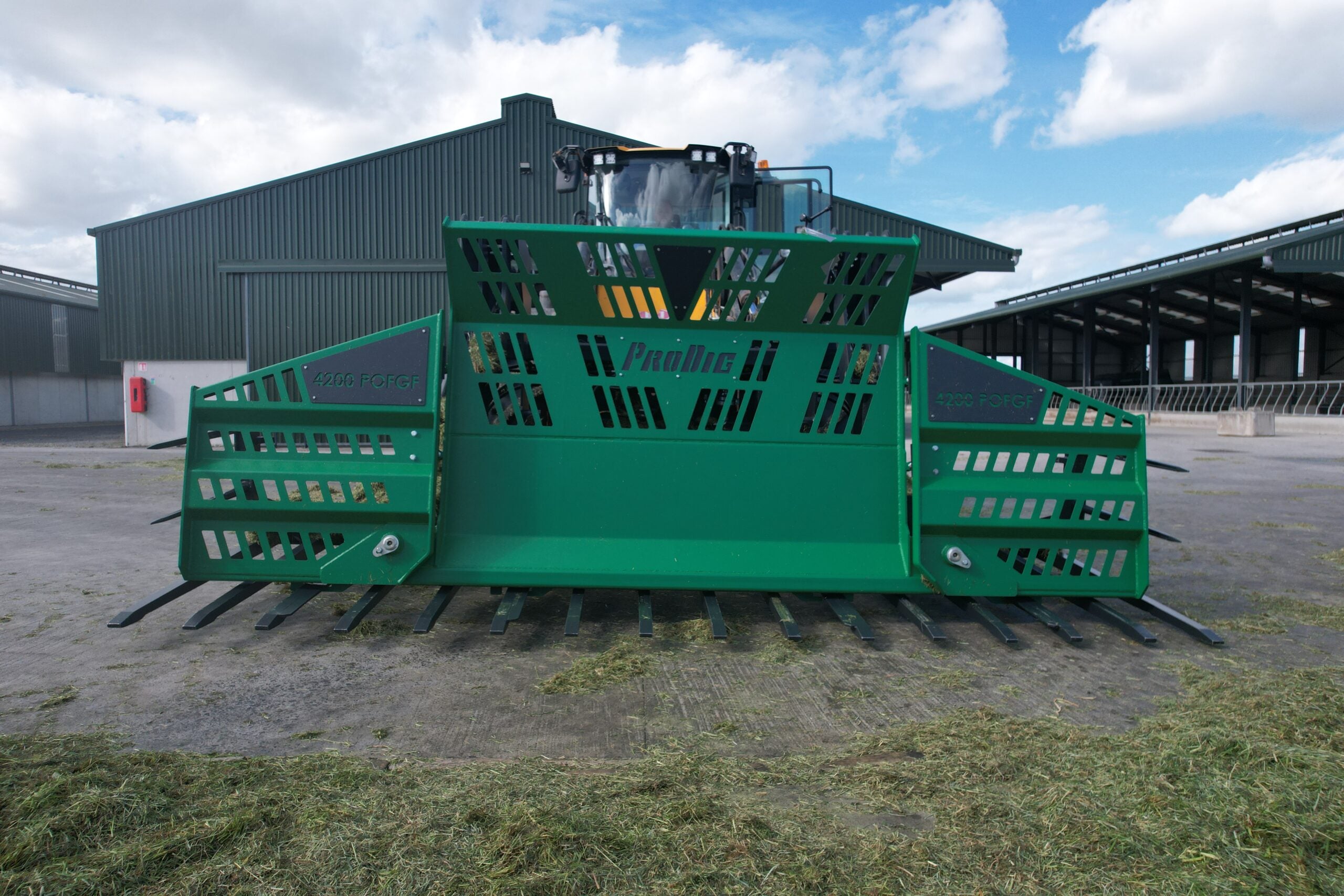

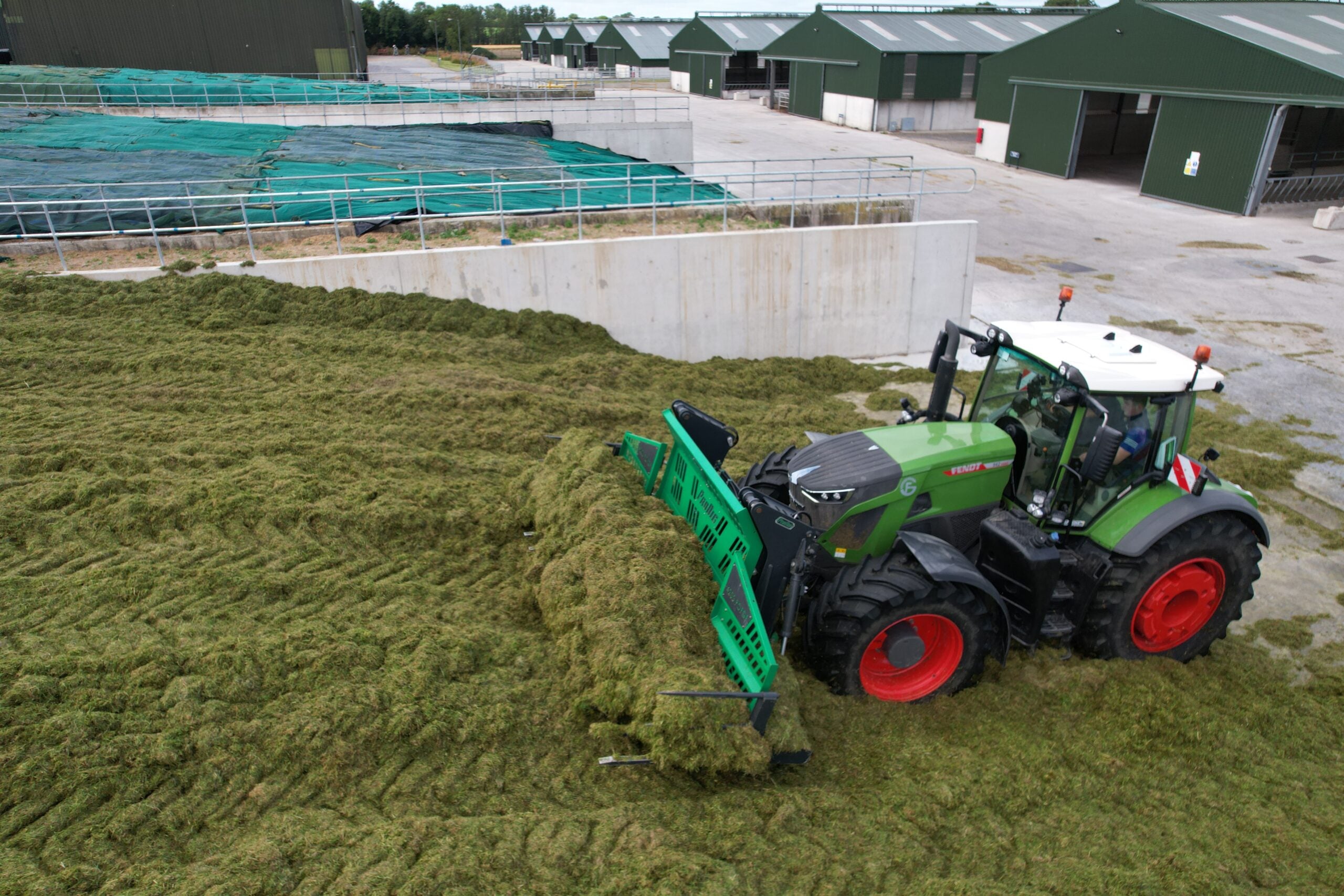

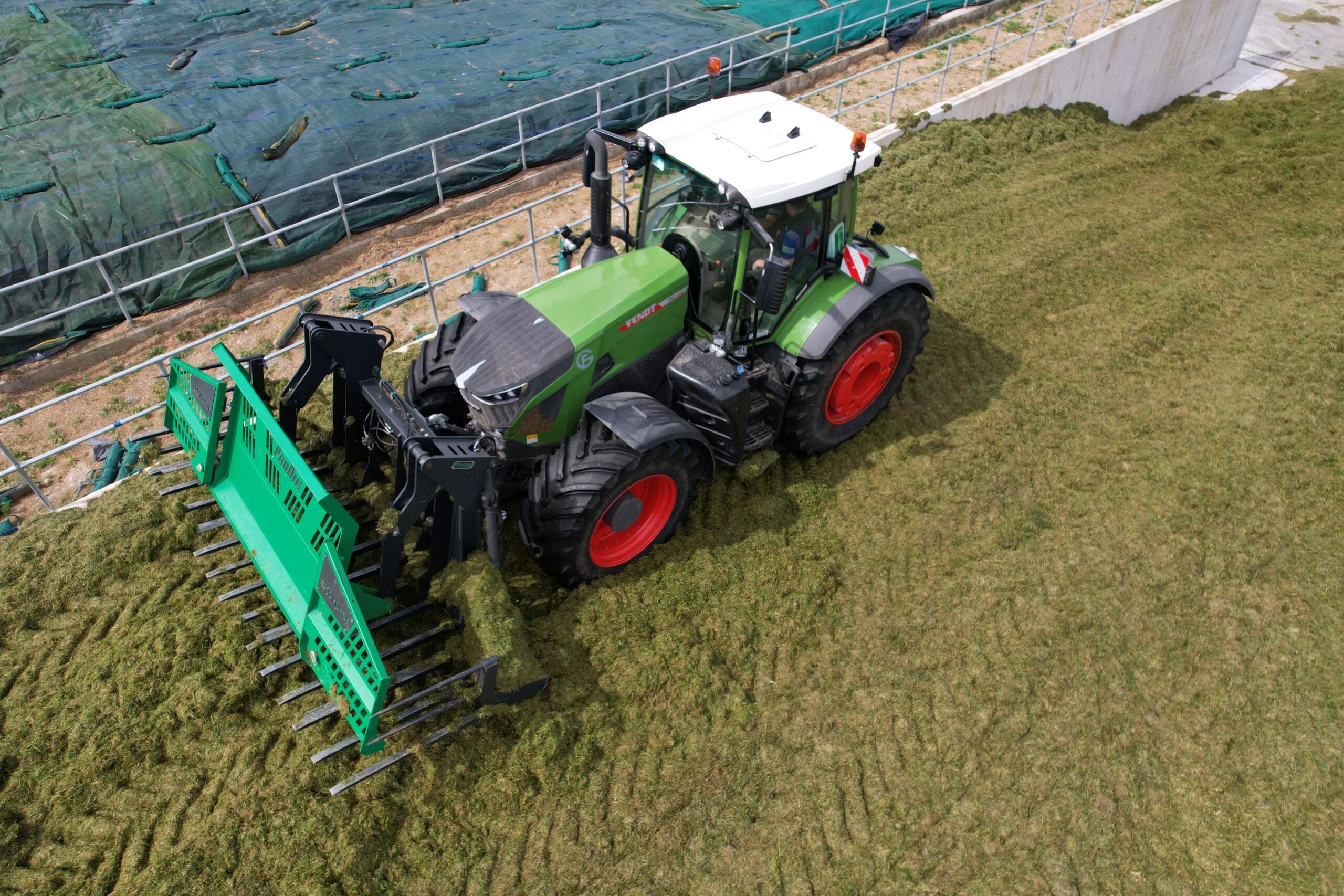

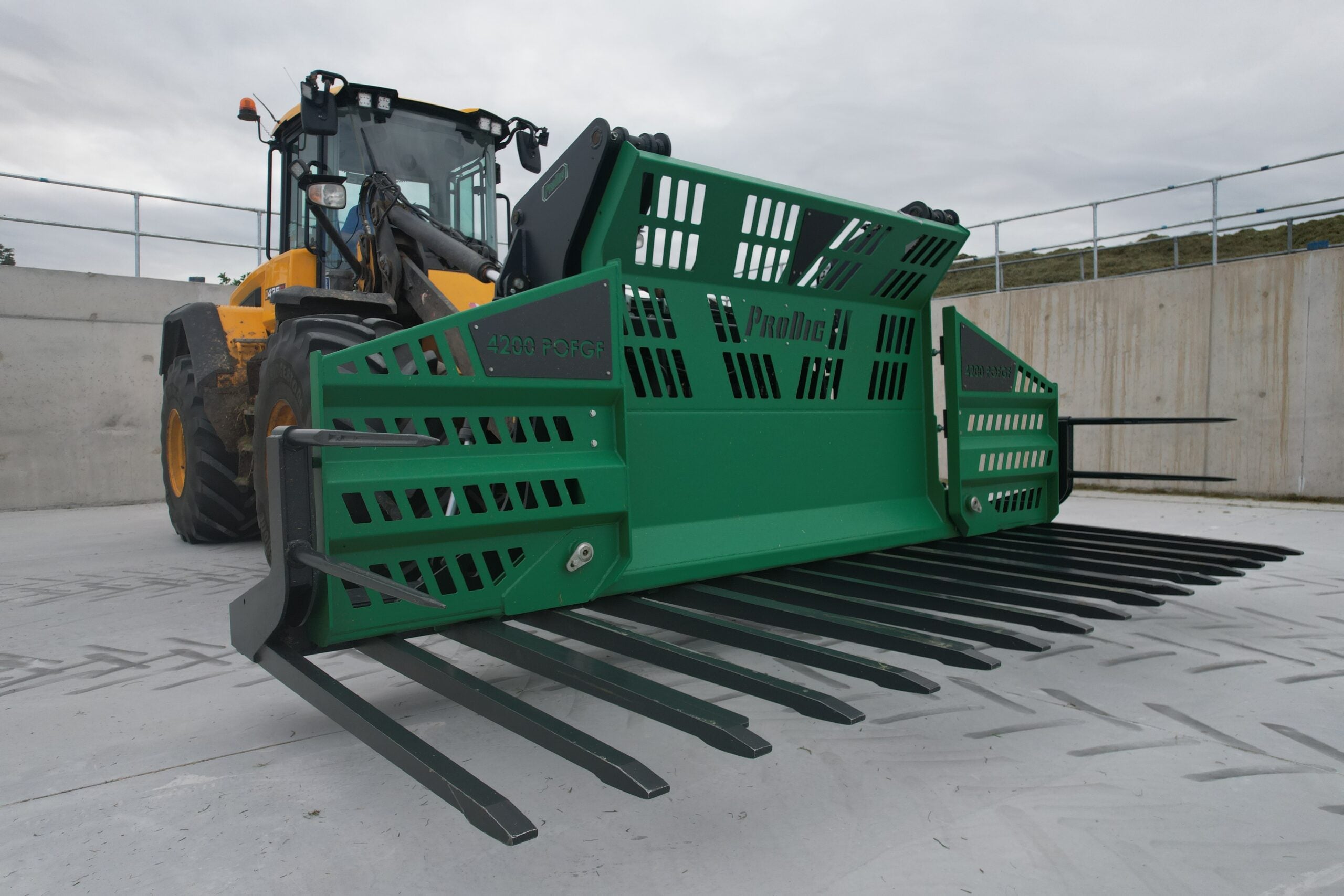

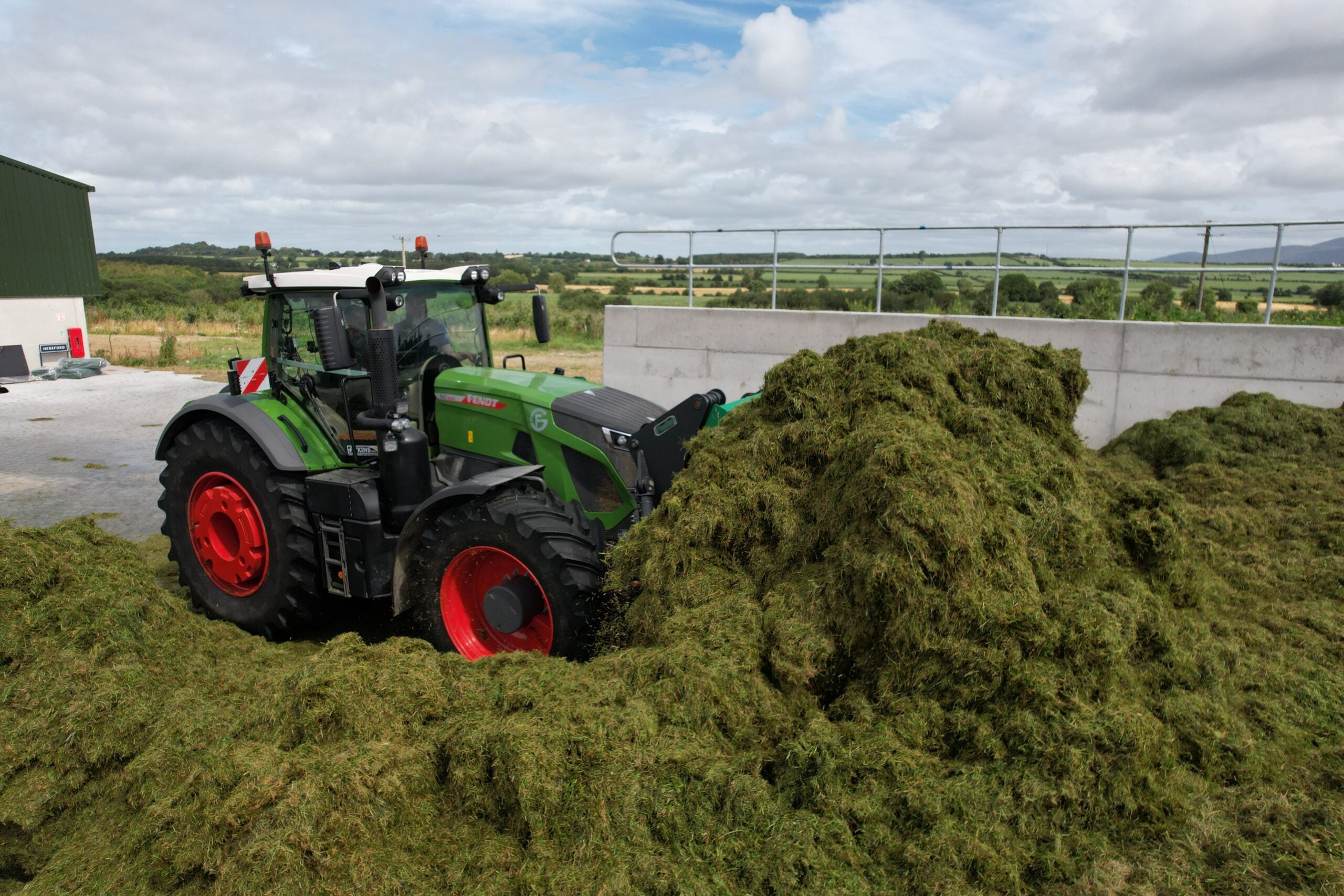

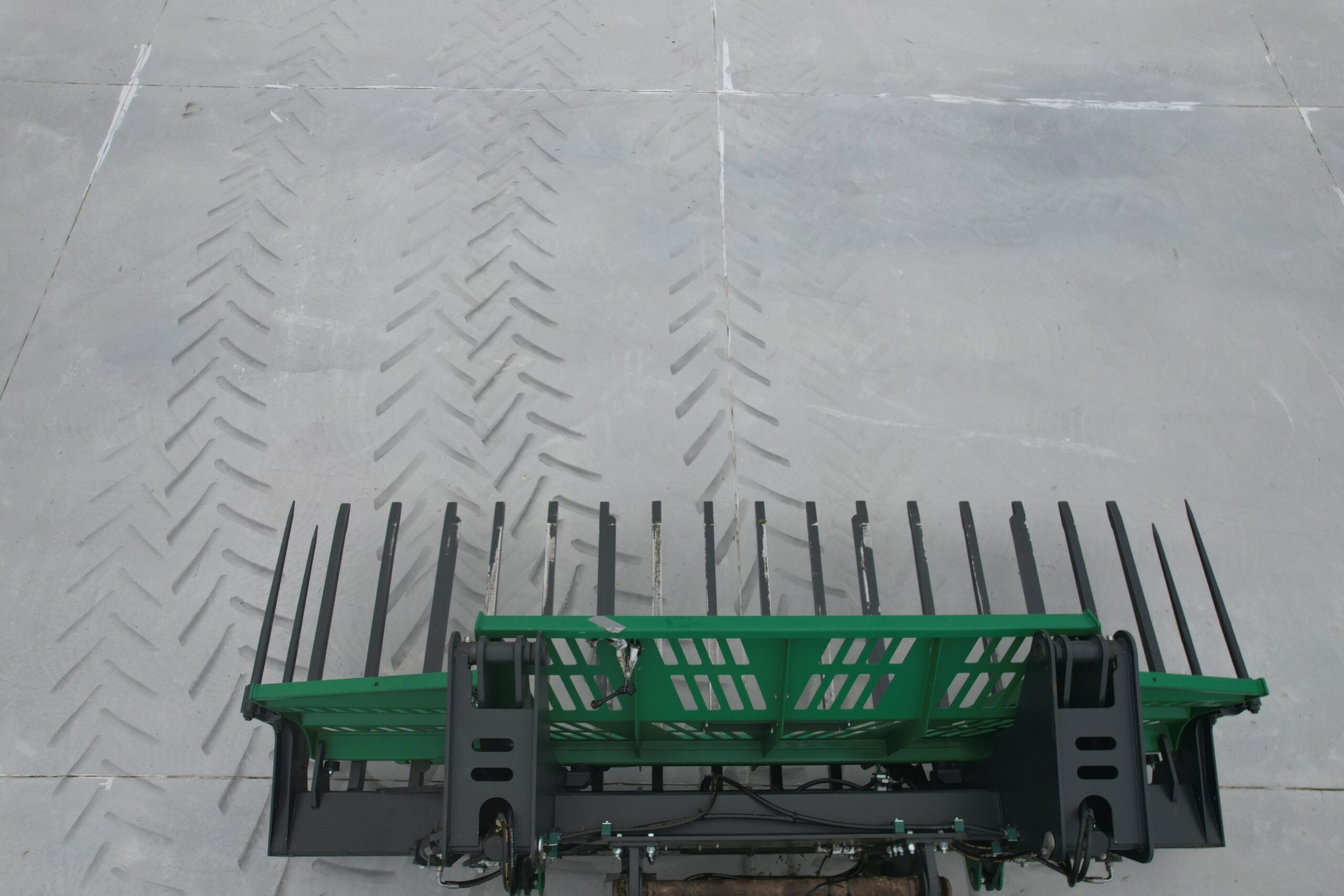

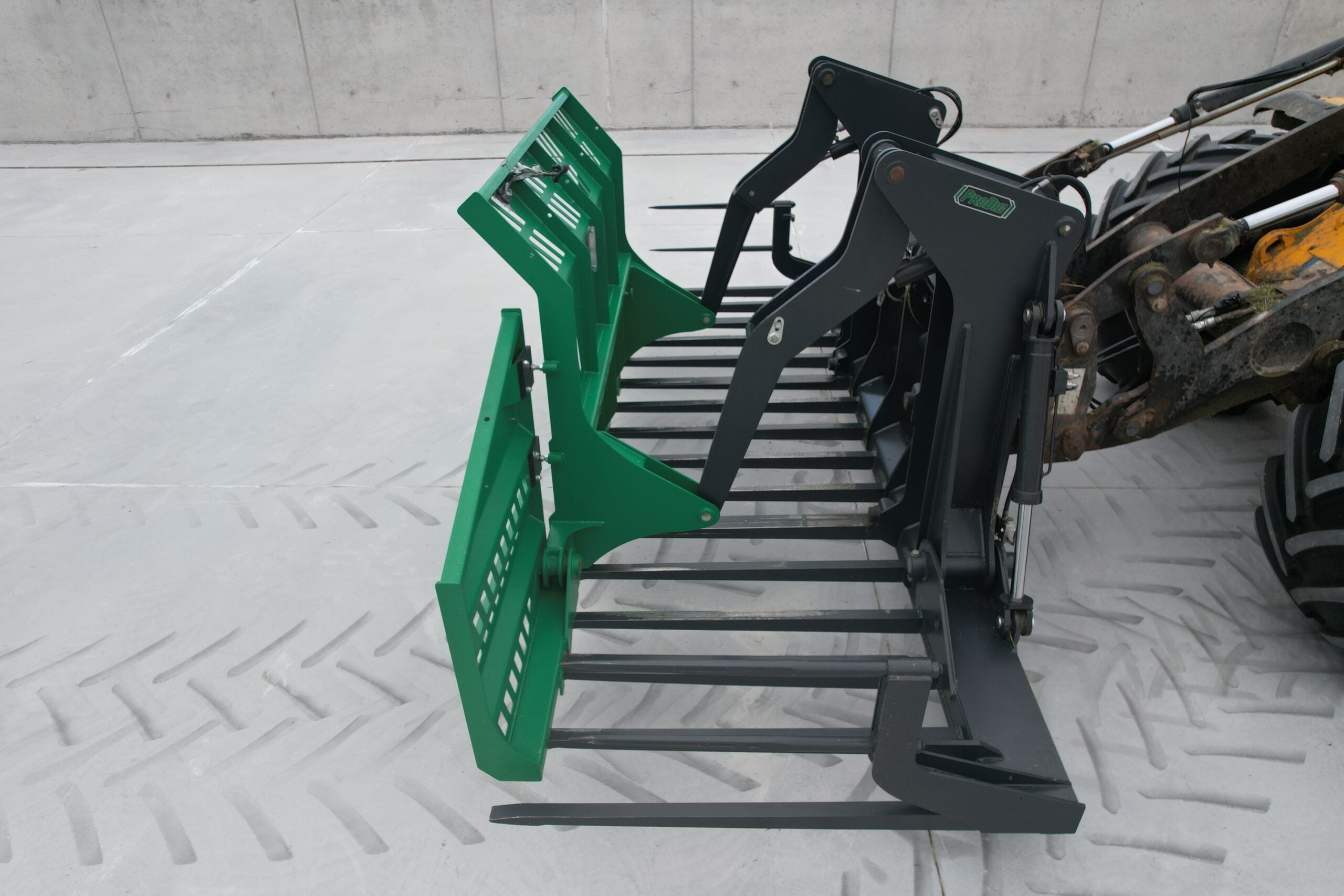

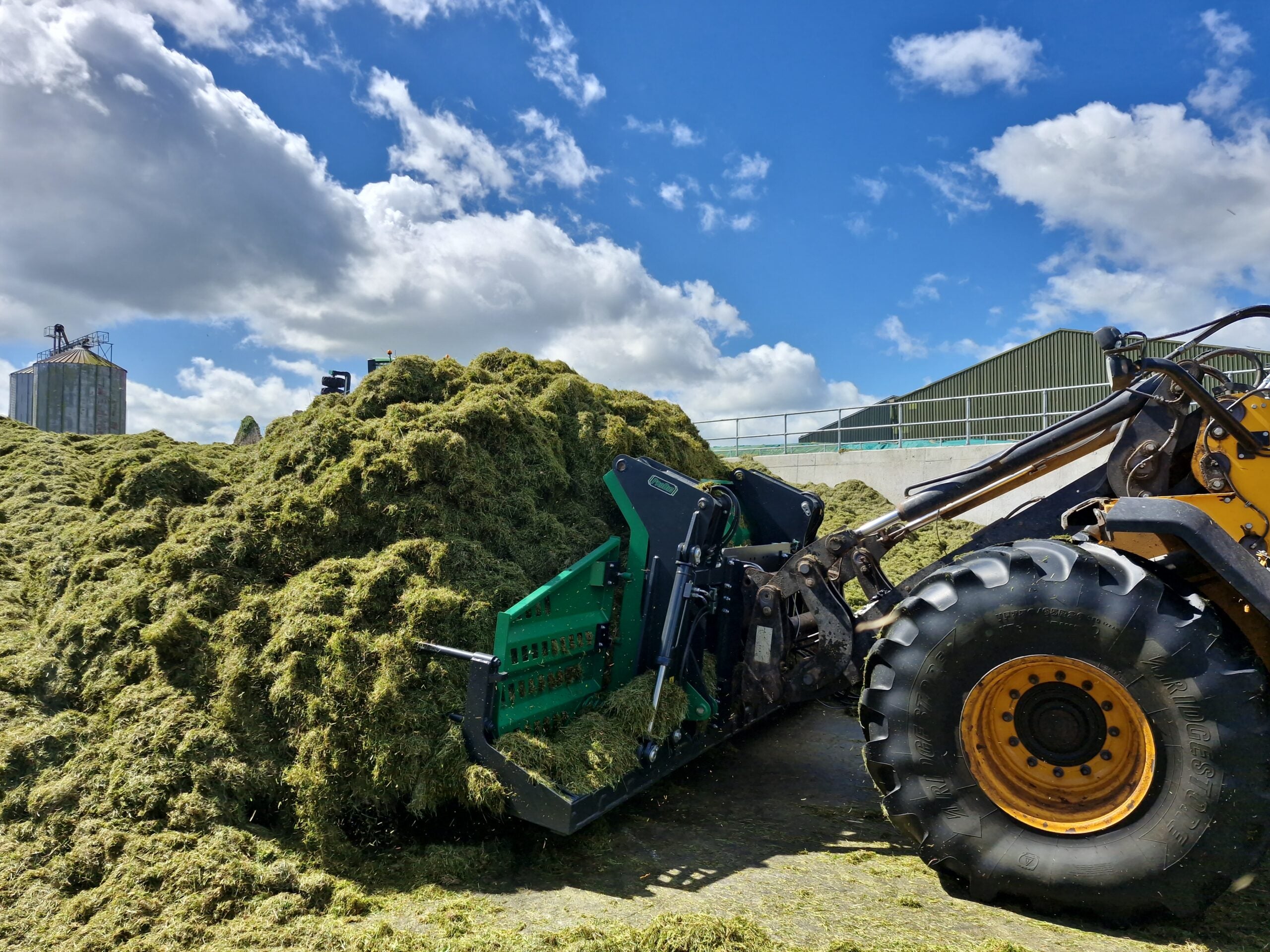

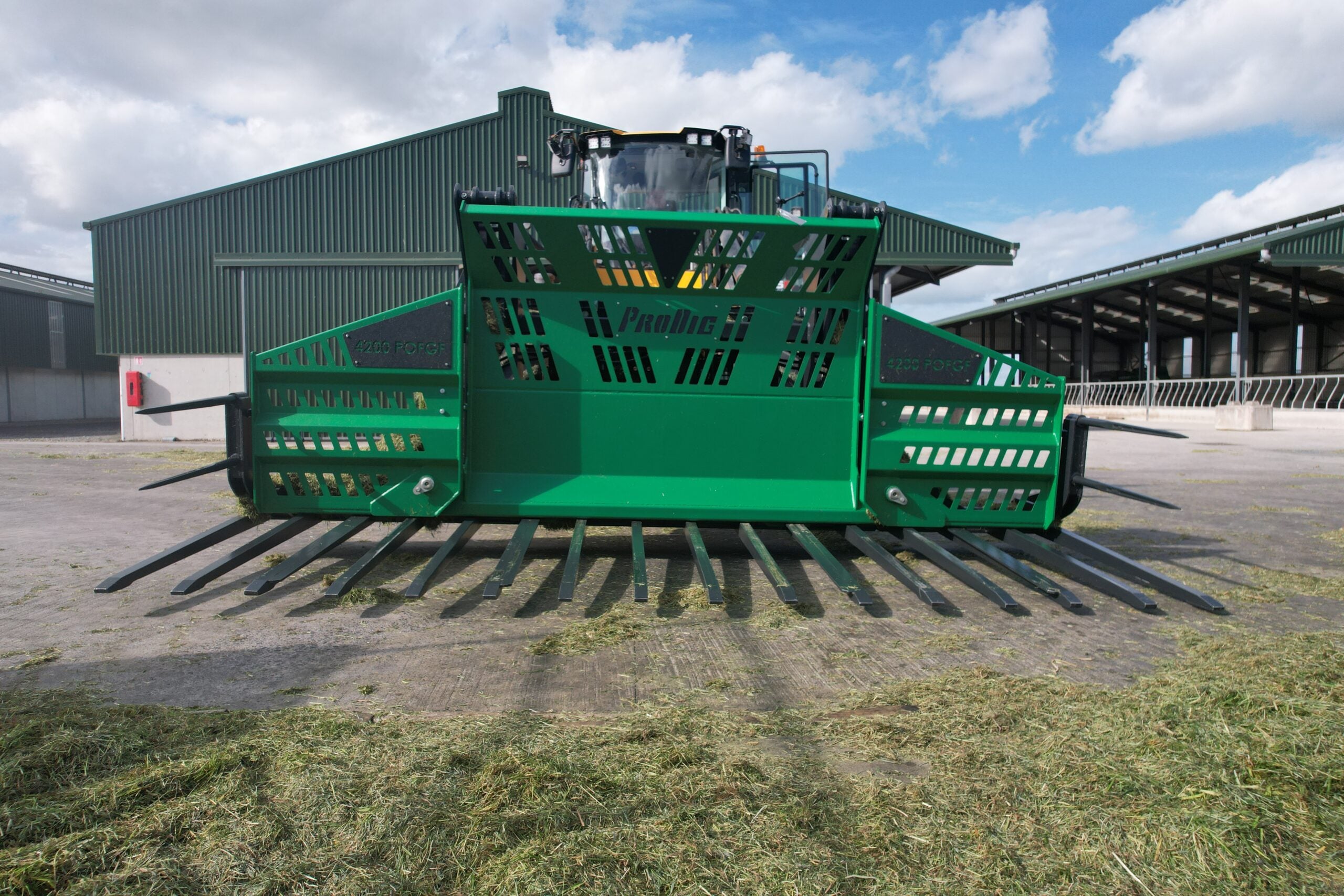

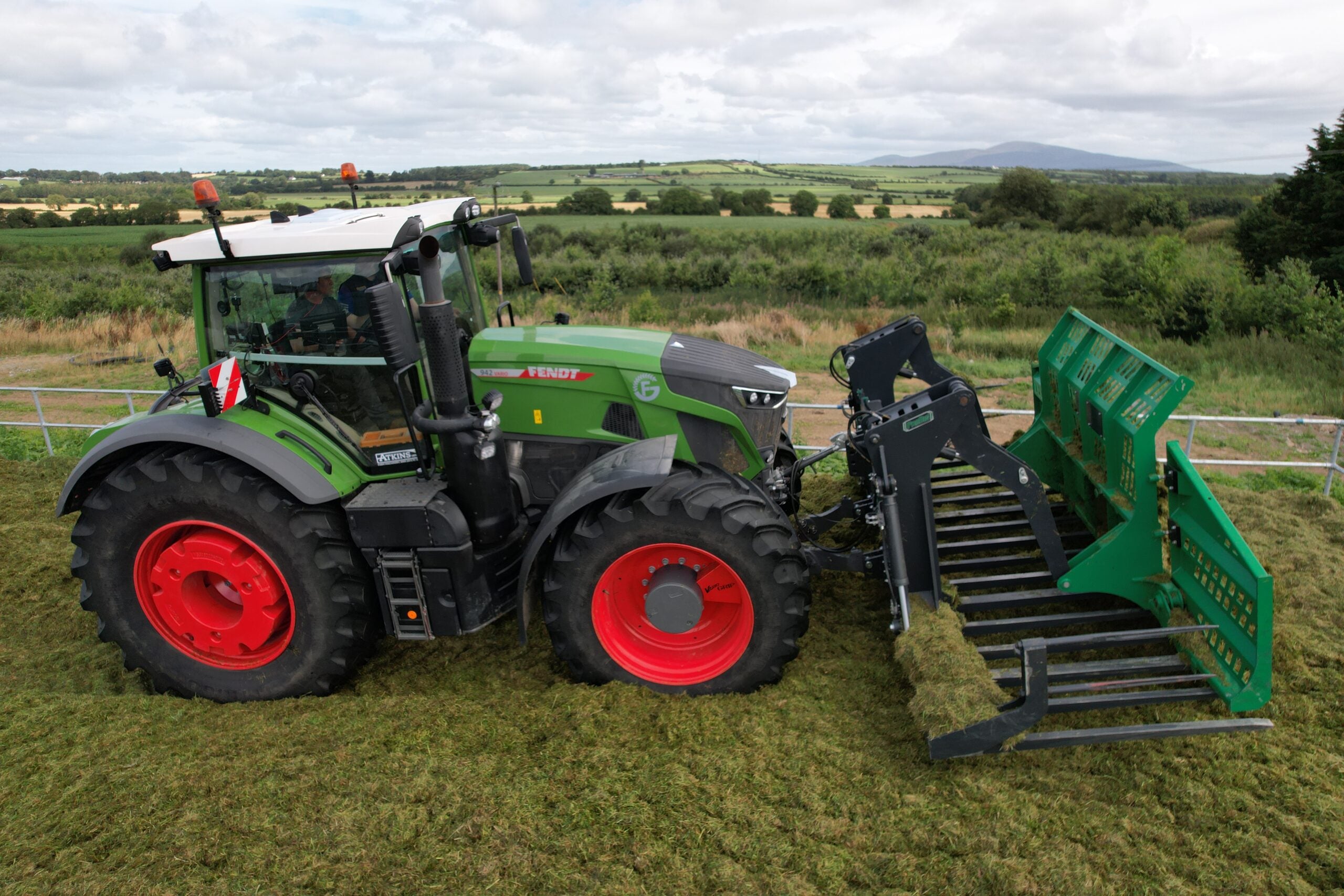

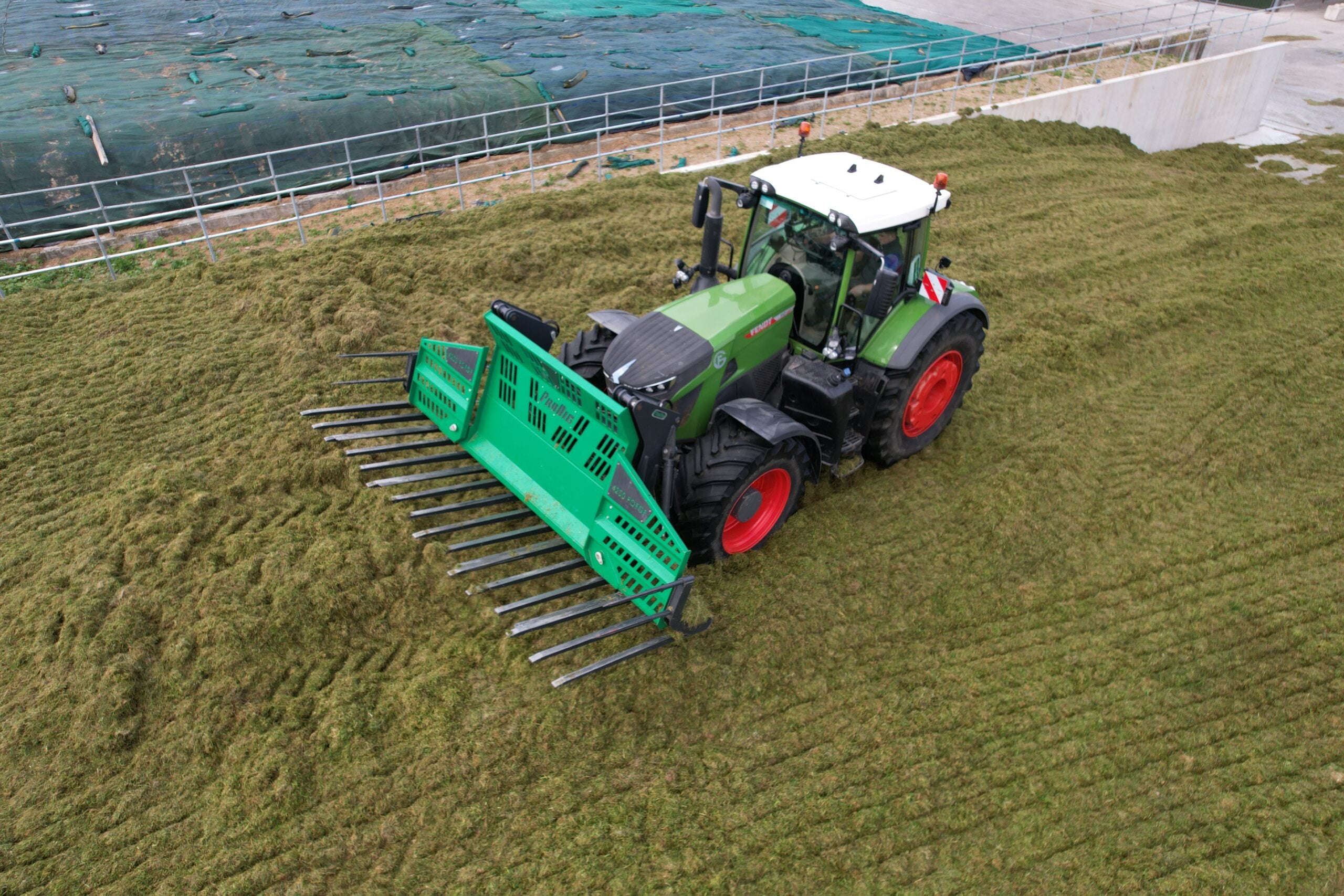

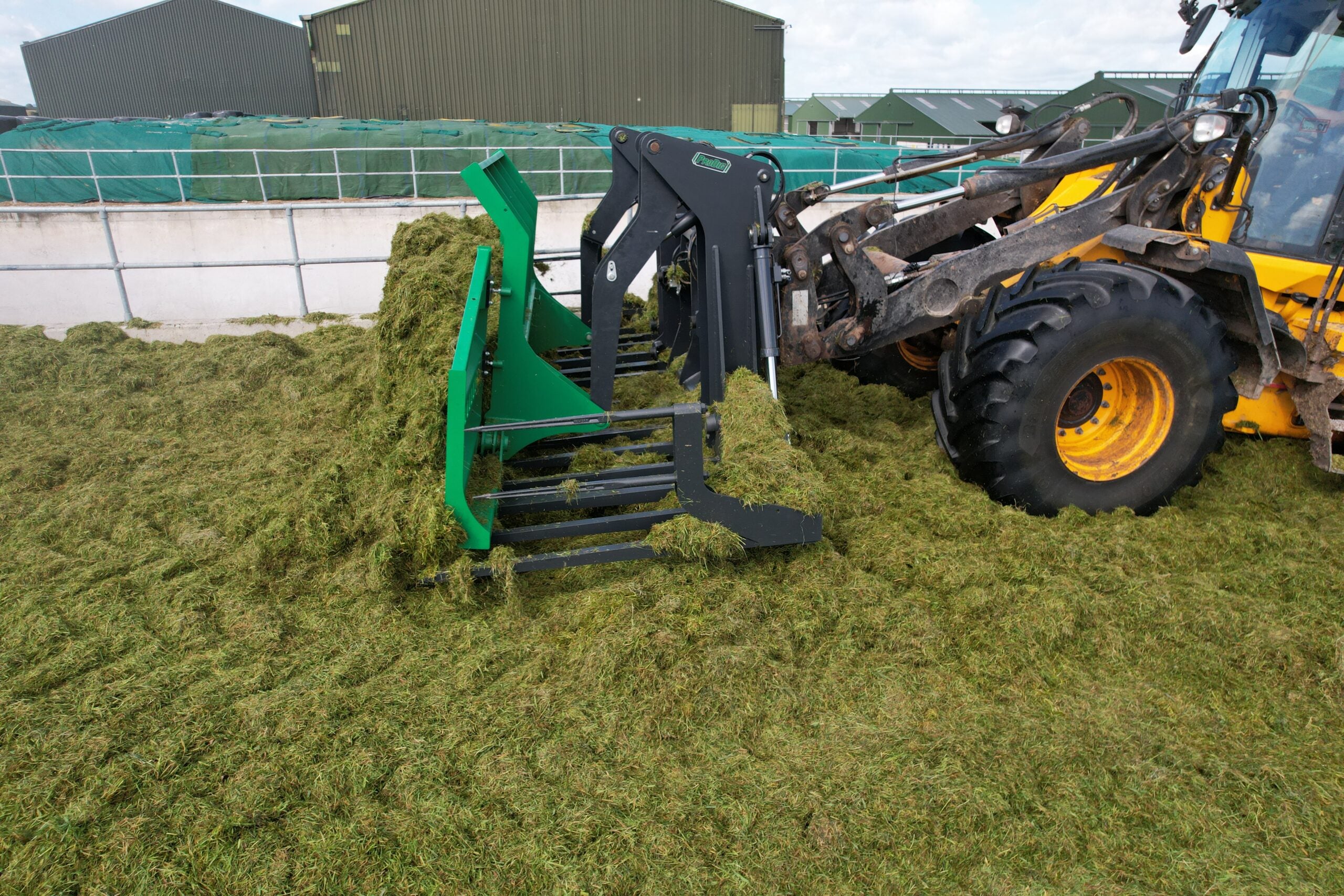

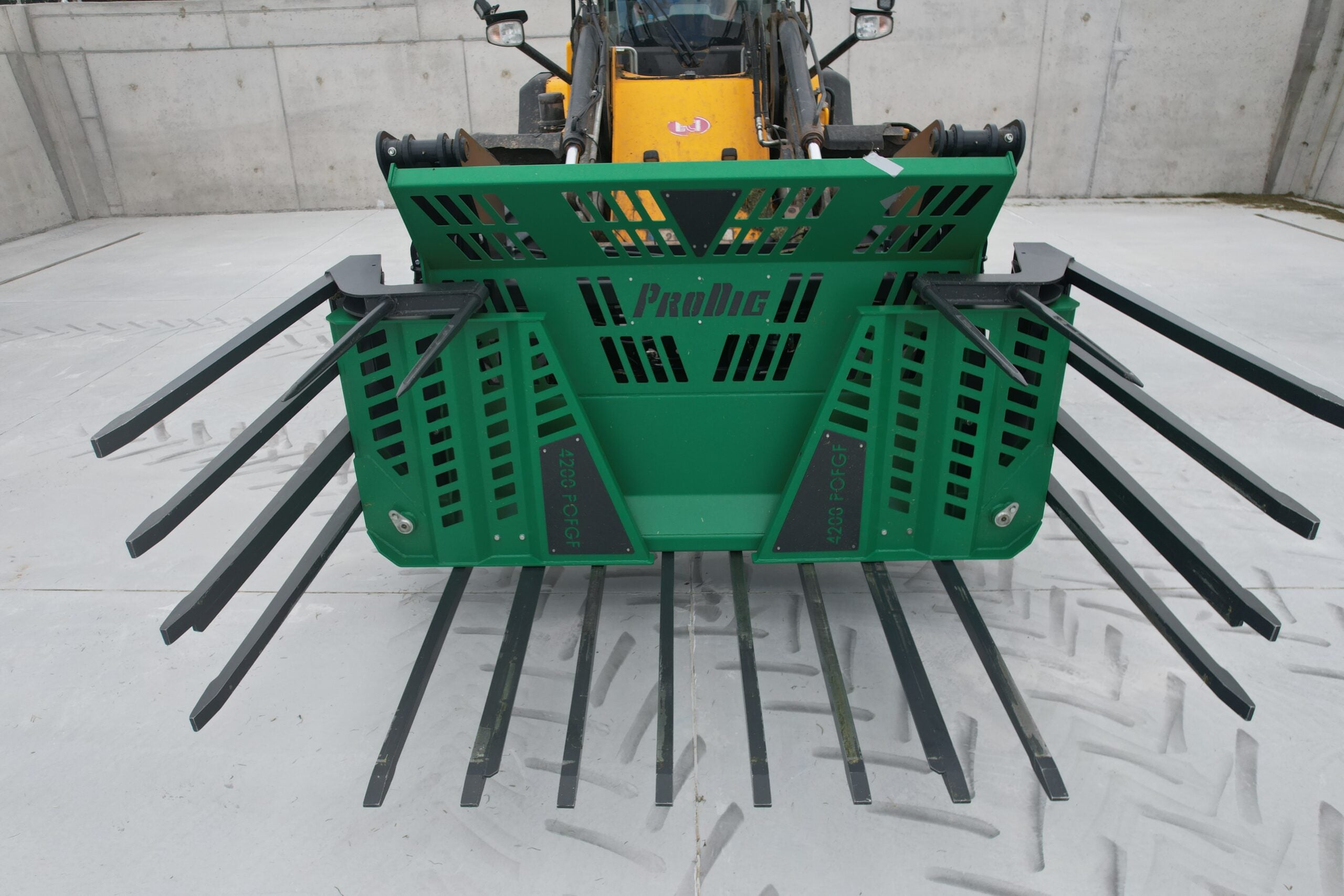

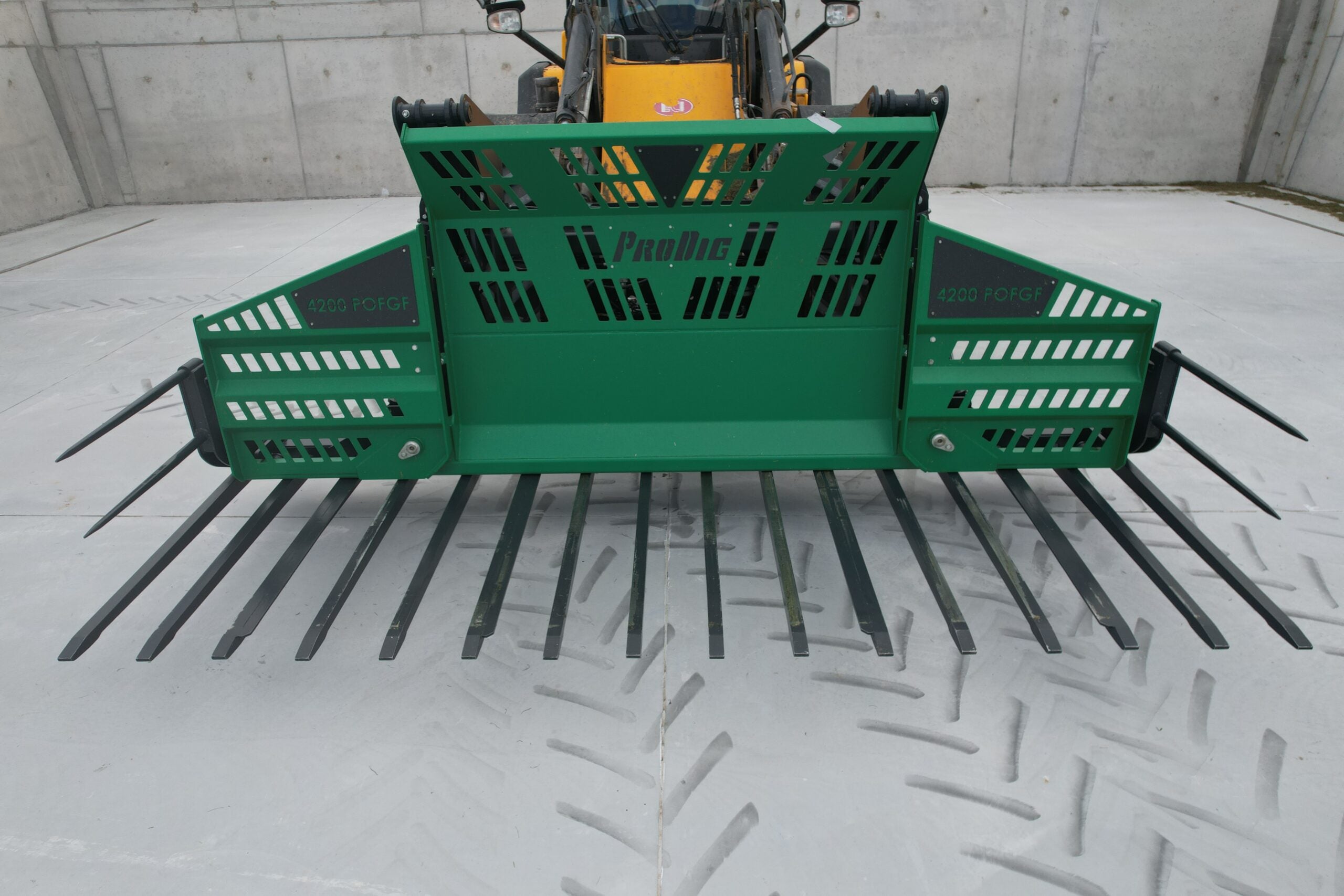

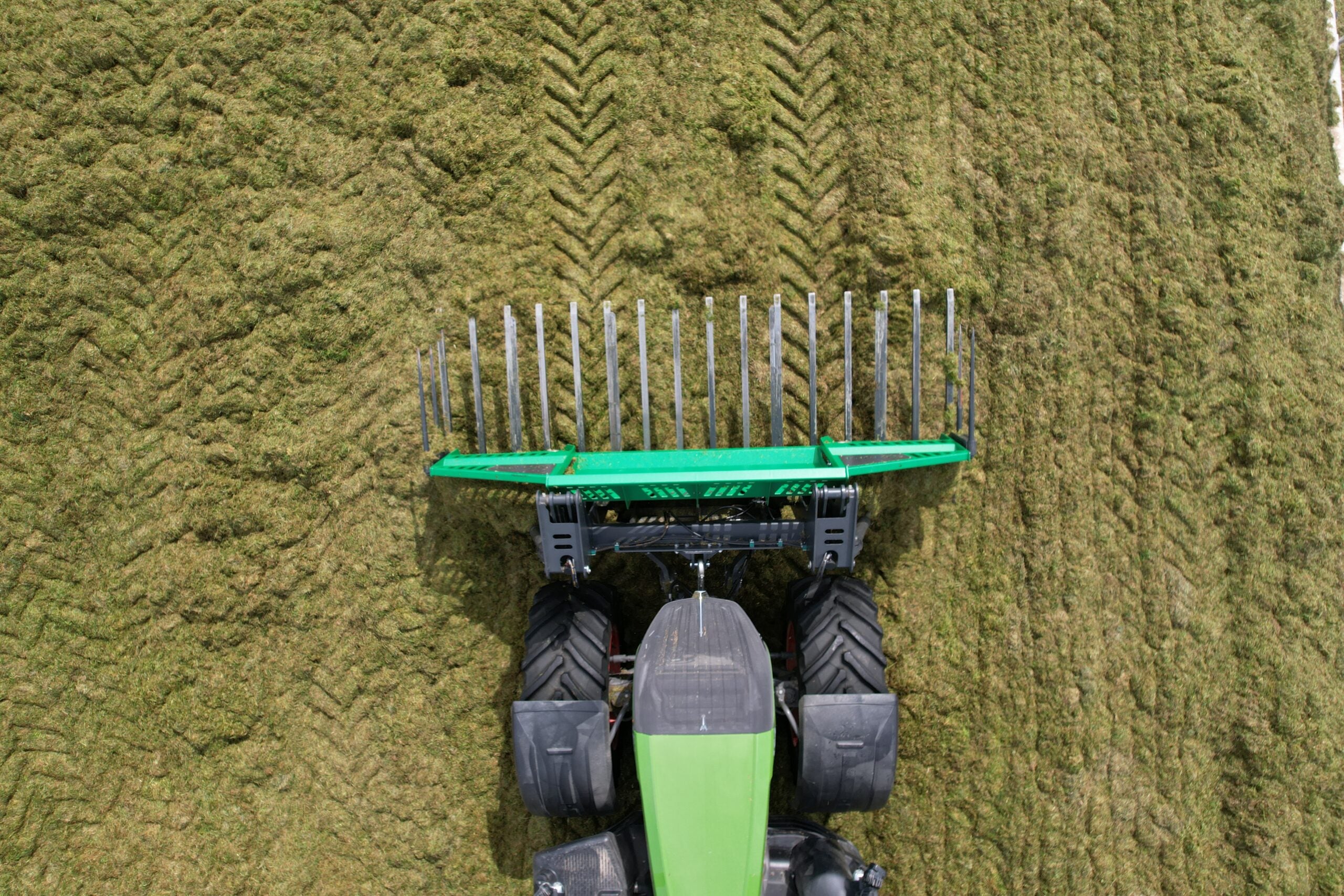

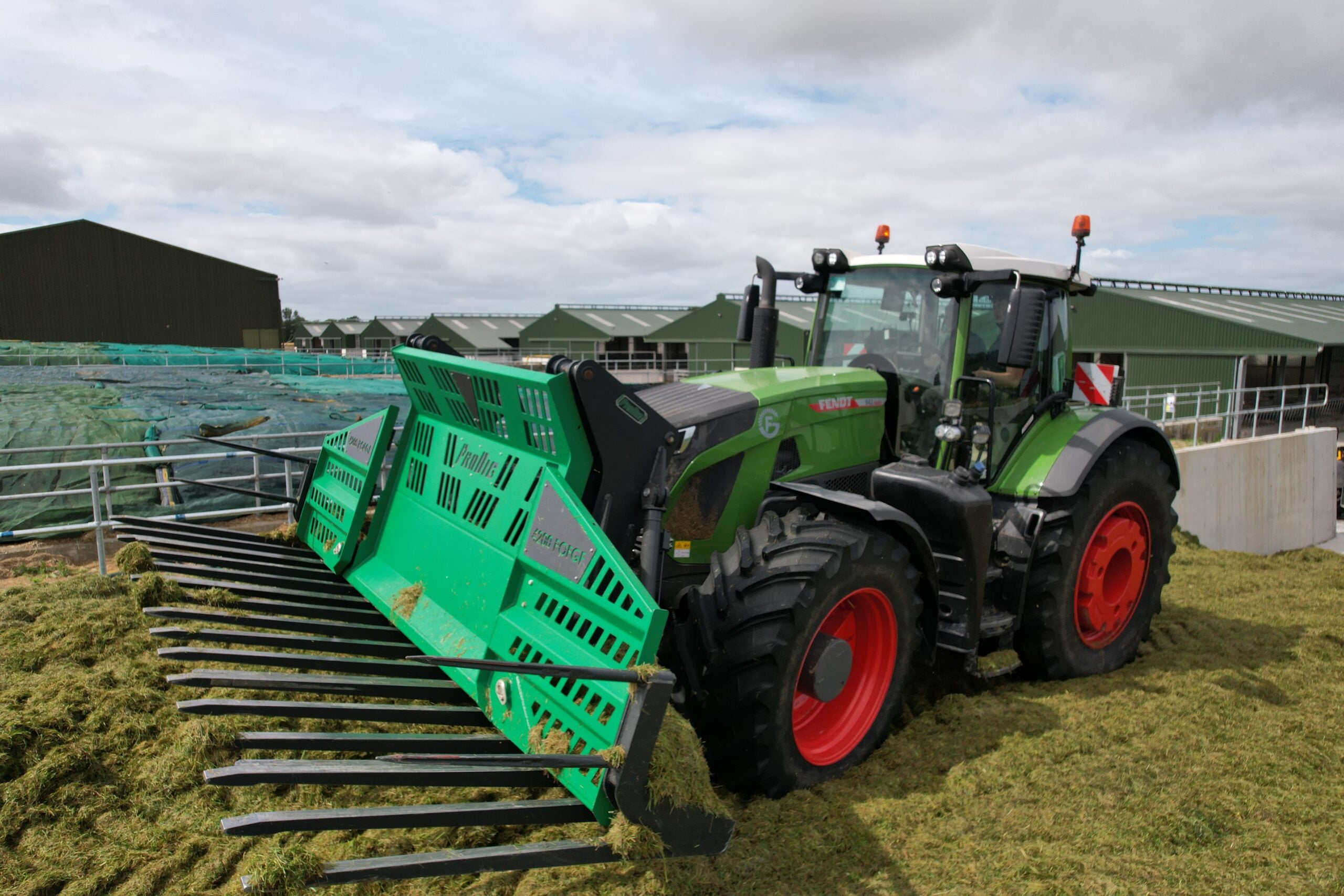

The Prodig Push Off Folding Grass Fork is designed to combine the push functions of a push off fork while the folding function allows for easy road transport. This allows for a larger 4.2m & 4.9m fork option while still folding up to 2.85m for road transport.  Suitable for large horsepower tractors and wheeled loaders.

  • Available in widths from 4.2m & 4.9m.

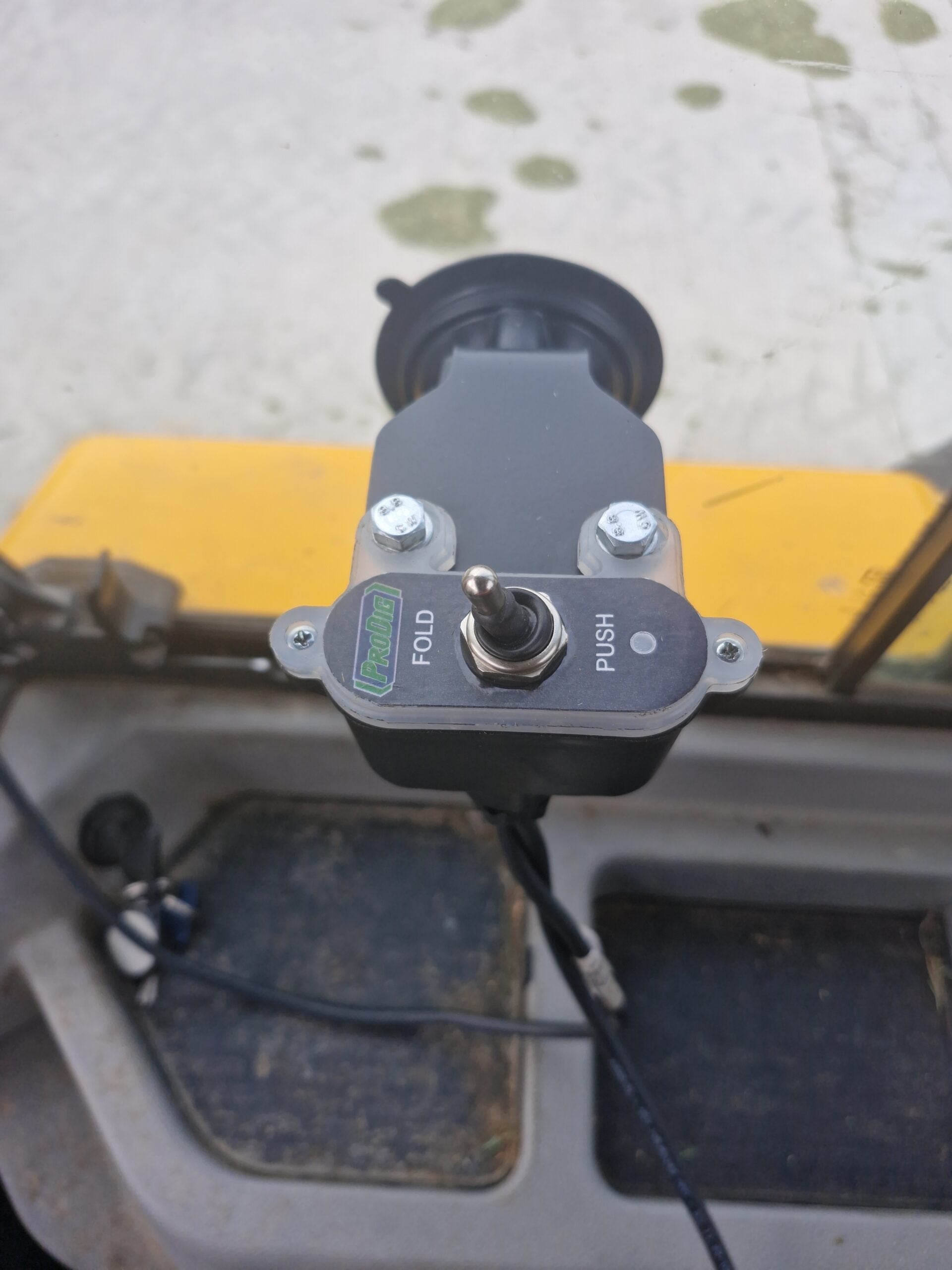

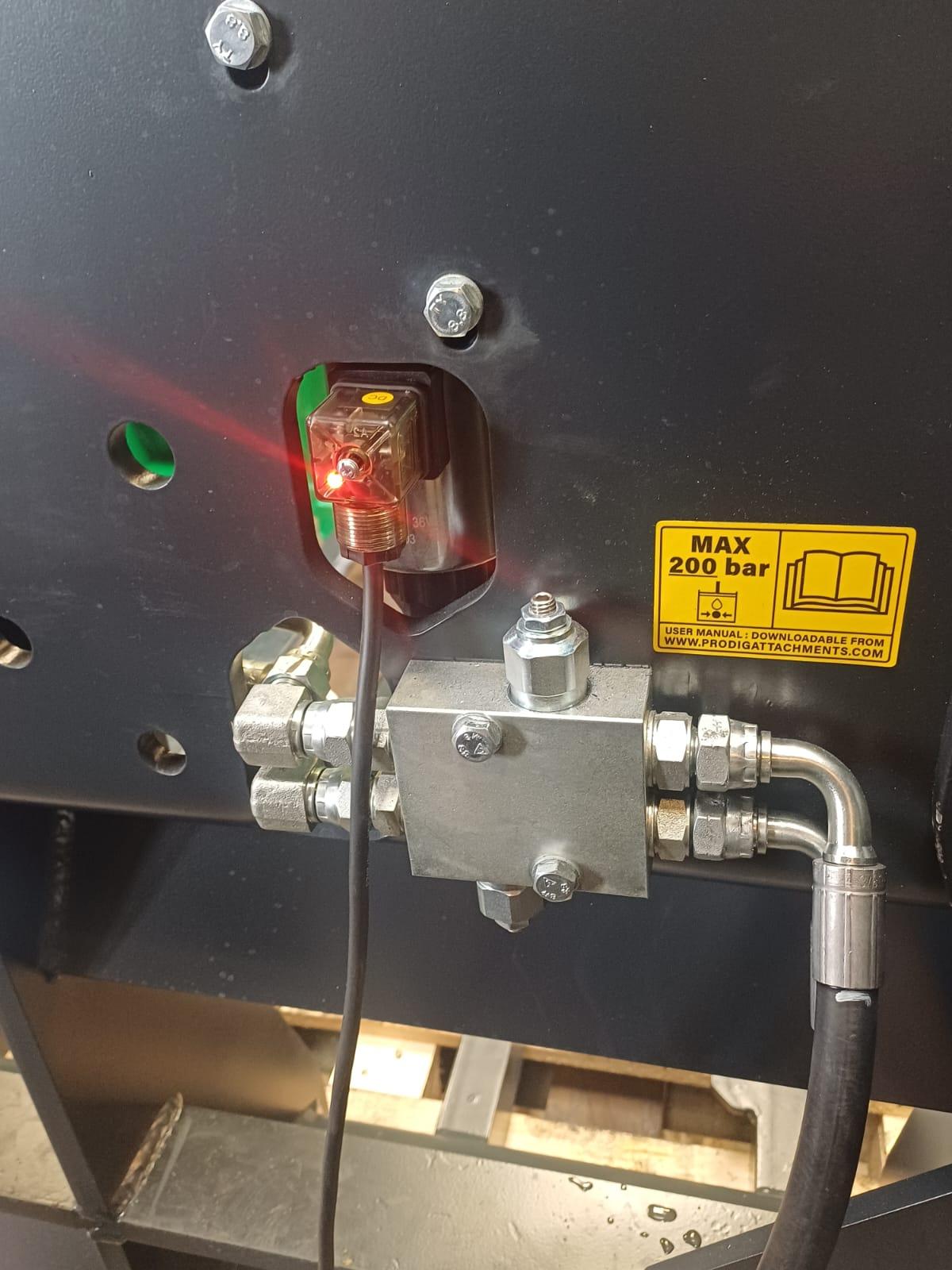

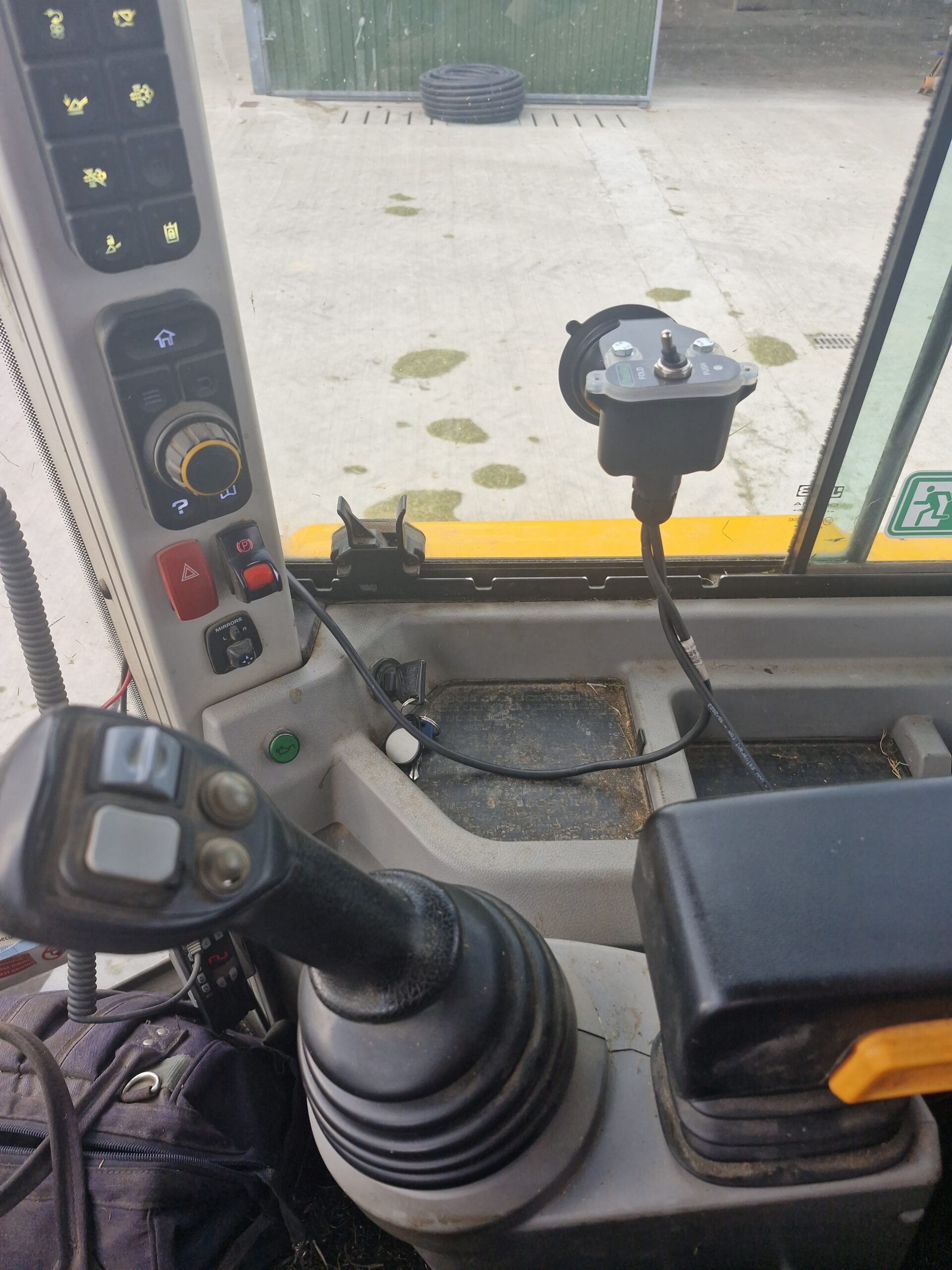

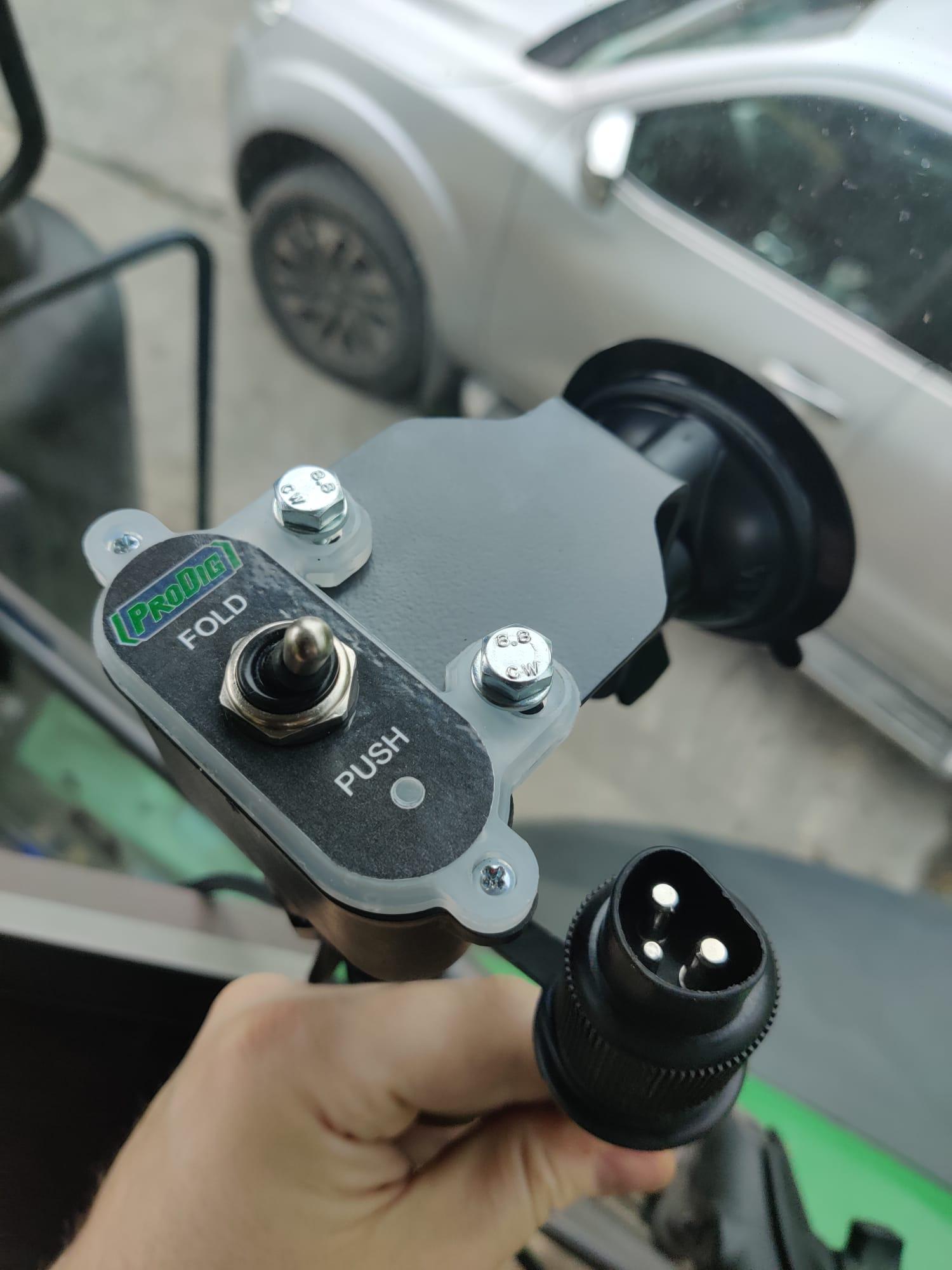

  • Solenoid valve used to switch between push and fold function.

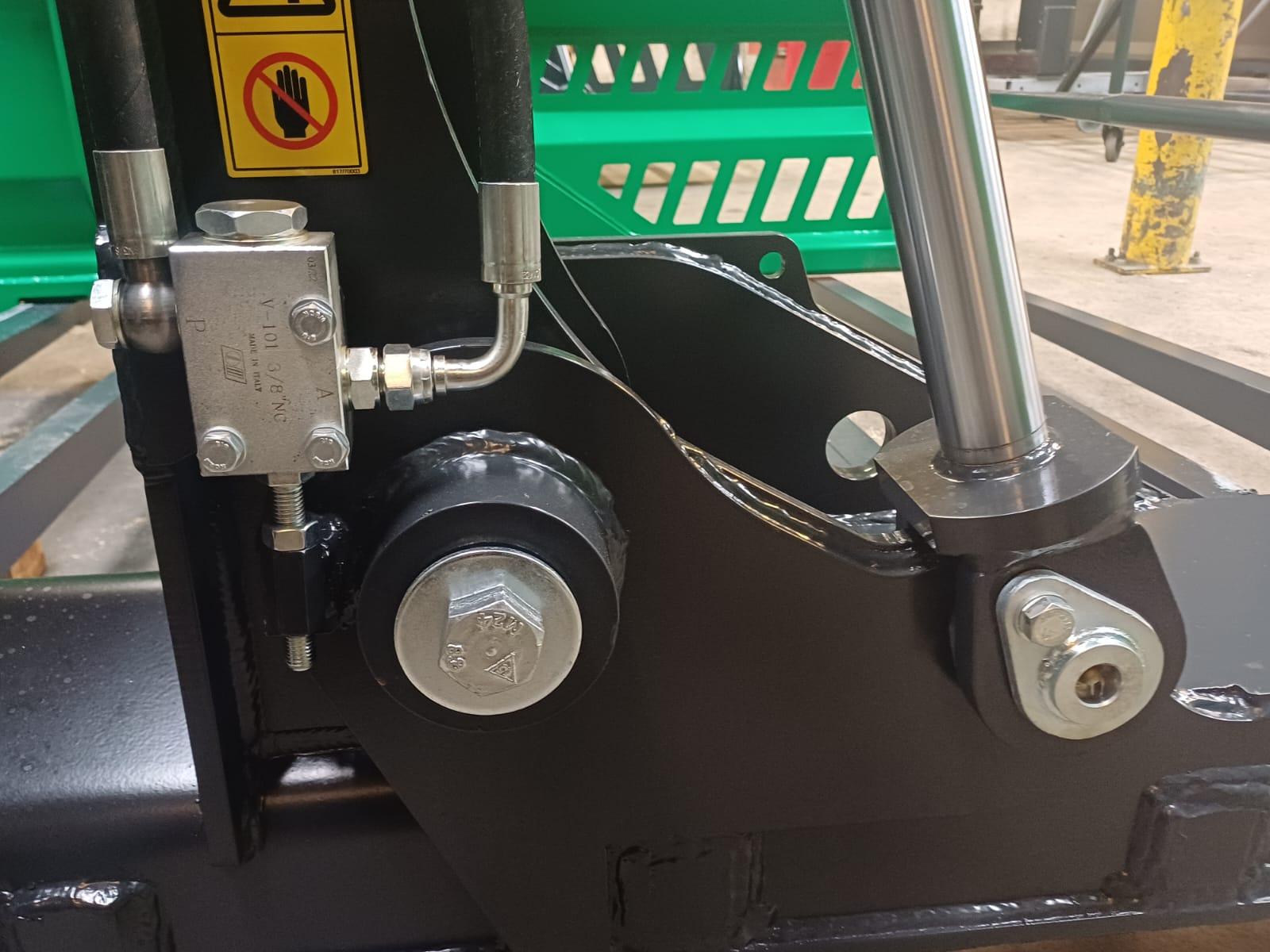

  • Fitted with Hydraulic equalizer valves, pressure relief valve and buffer pads to reduce impact on gate.
  • Anti-collision end of stoke valves to prevents gate/wing colliding, single service operation.
  • Accumulator on gate cylinders to act as shock absorber during use.
  • High Yield steel used in a fabricated plate construction.

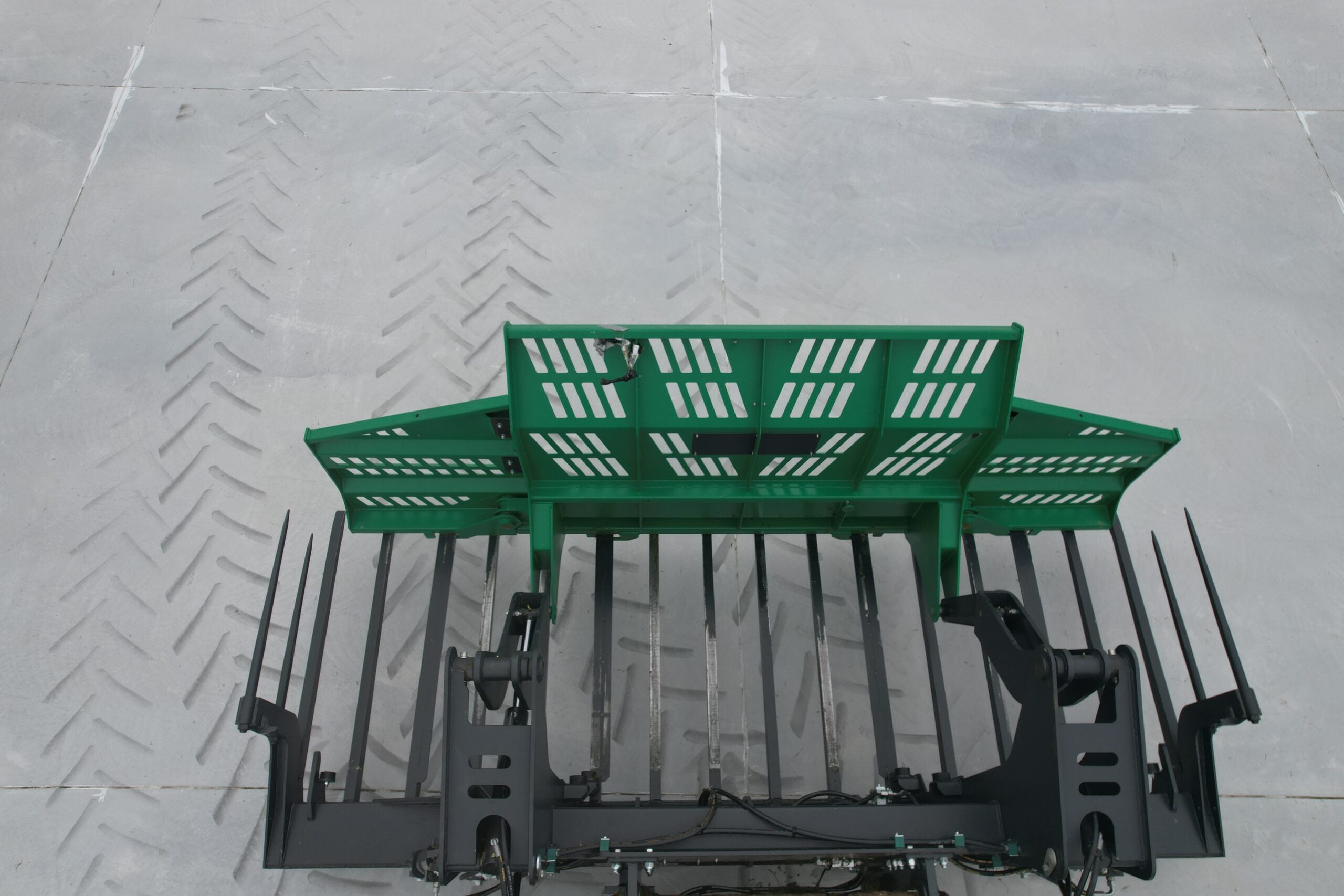

  • 50mm x 1750mm square profile Hardox tines used in bottom bar for long service life.
  • Hardox tines are manufactured with replaceable wear tips meaning the tine never has to be replaced.
  • 60mm pivot points on wings & 45mm pivot points on arms, all moving parts fitted with greaseable bushings.
  • 12mm Hardox wear strip fitted to the full length of bottom section.
  • Double removable side tine as standard.

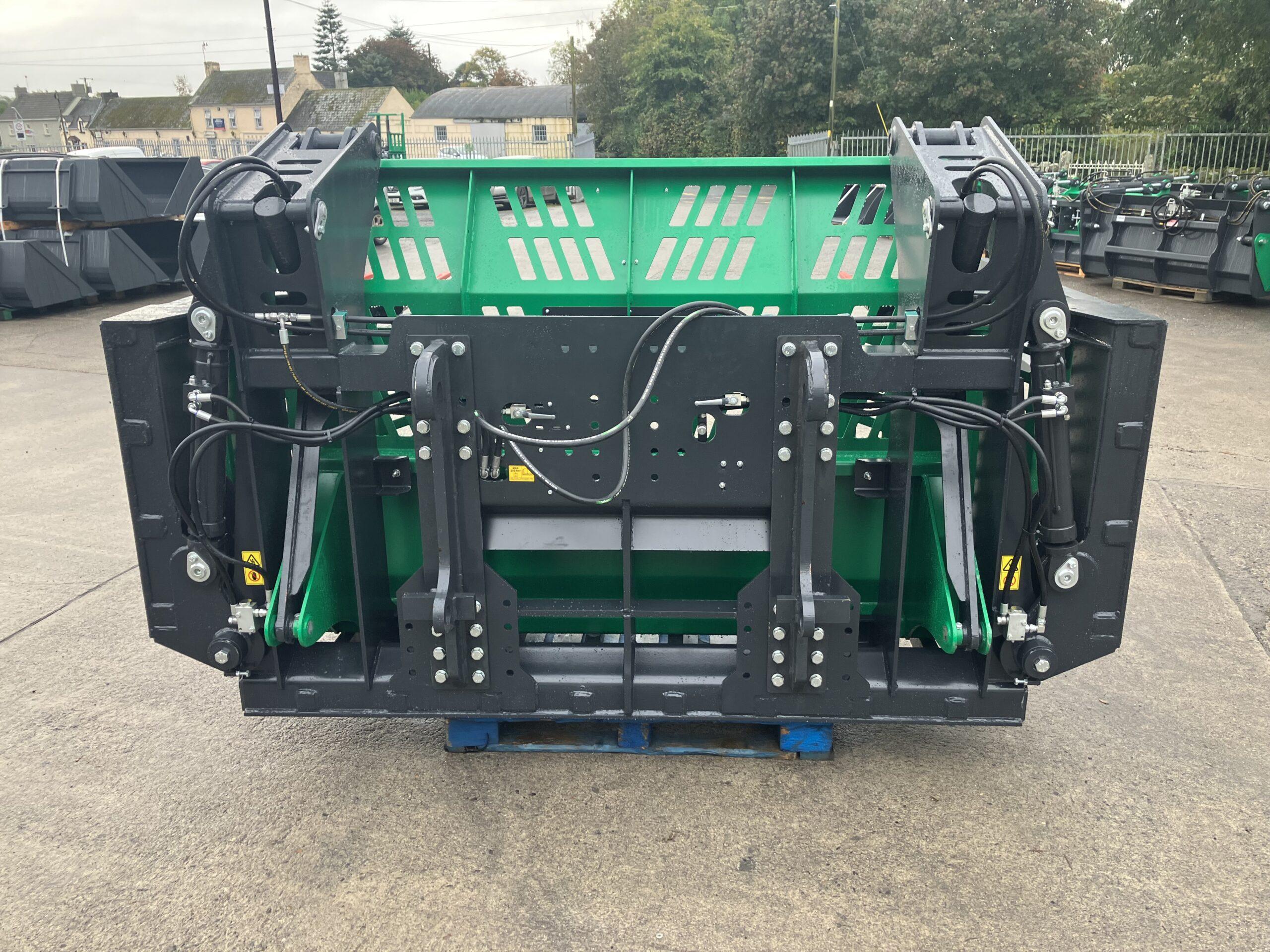

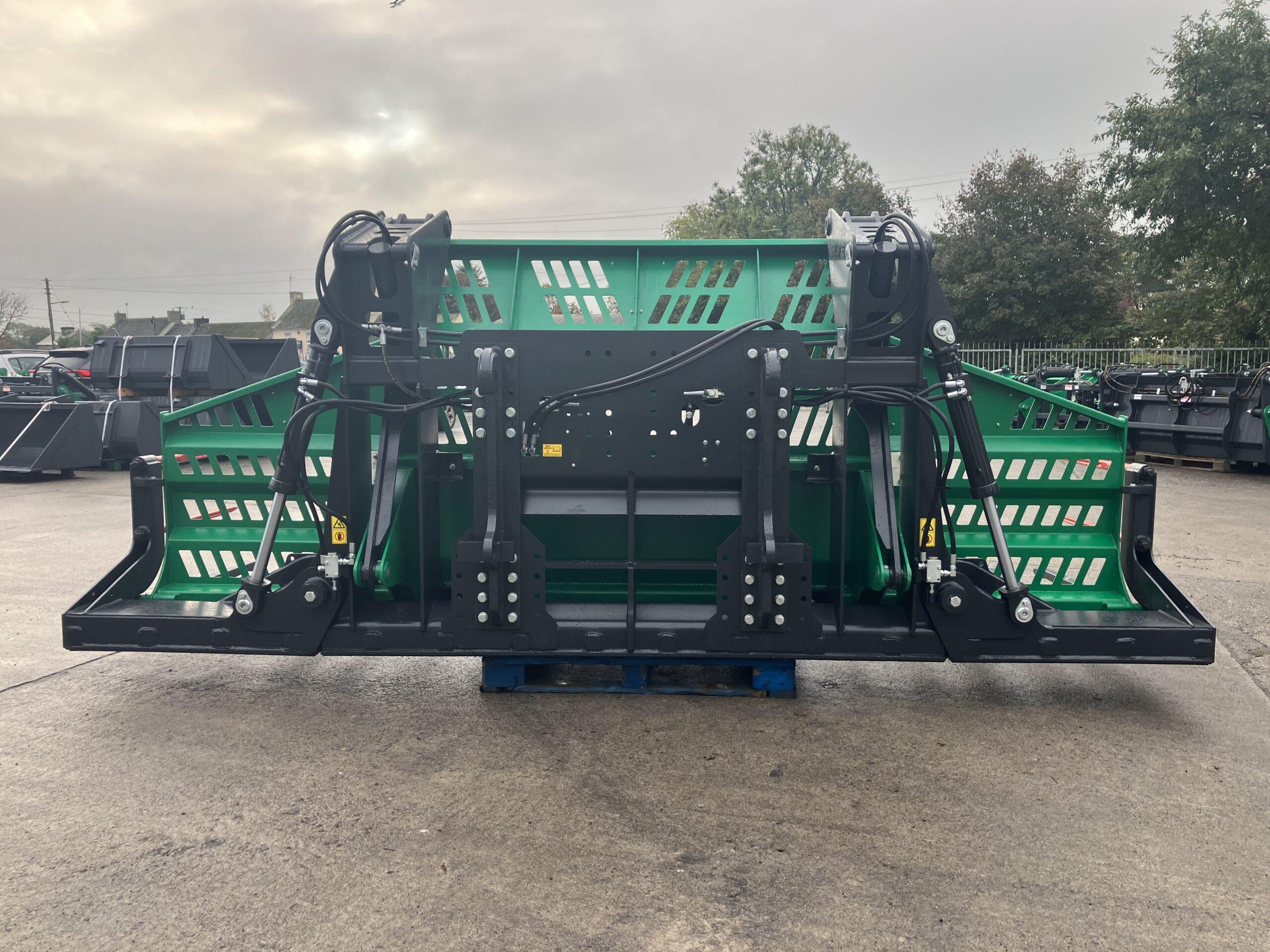

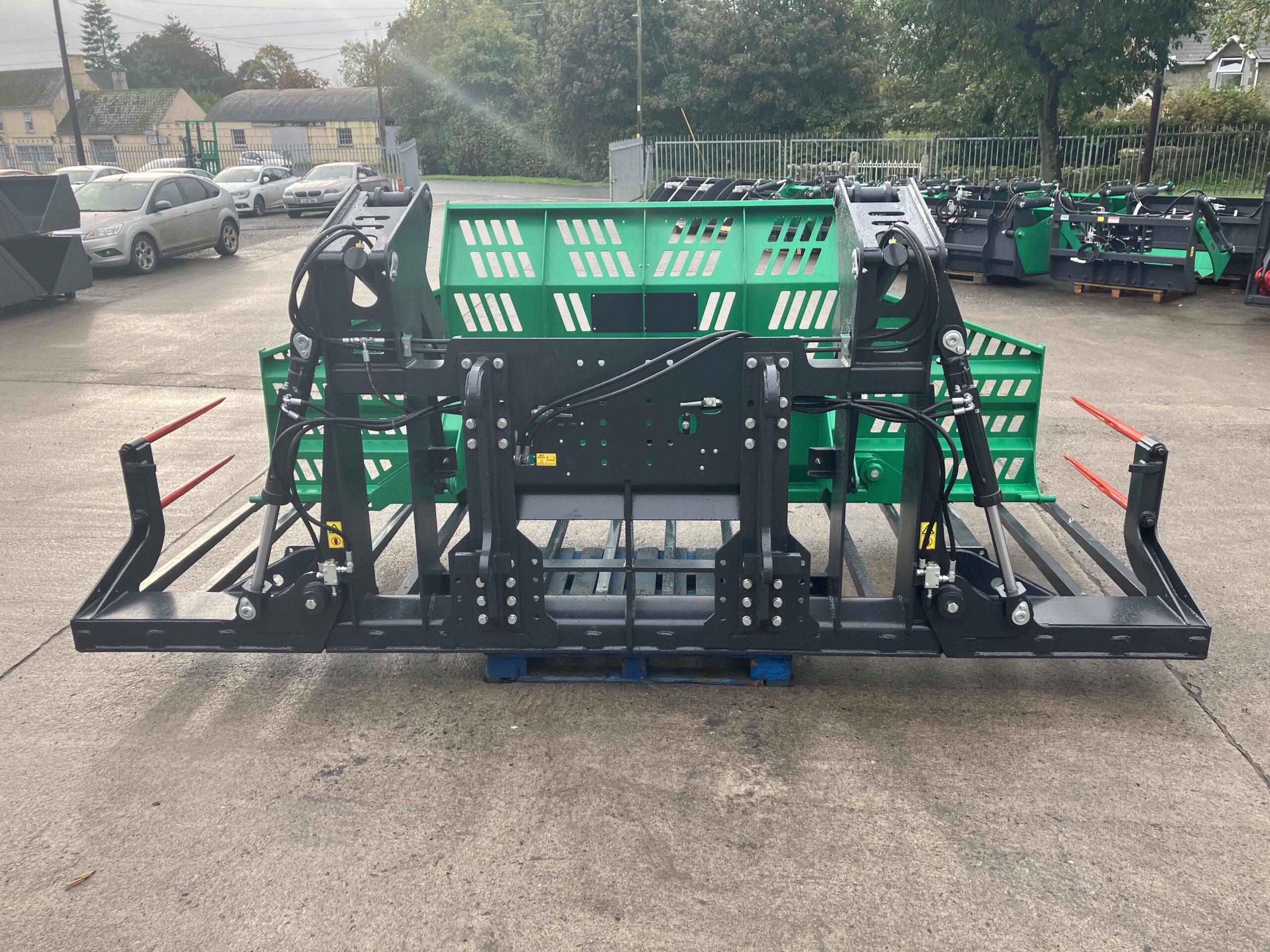

  • Bolt on hitch system to suit all machines.

Technical Data

Code   POFGF-4200 POFGF-4900
Unfolded Width (mm) A 4265 4876
Folded Width (mm) B 2847 2847
Height (mm) C 1725 1725
Depth (mm) D 1920 1920
Tine Length (mm) E 1750 1750
Tine Spacing (mm)   227 227
Tine Thickness (mm)   50 50
Capacity (m3)   7.9 8.9
Number Of Tines   16 18
Number of cylinders x Diameter (mm)   2 x 100 Bore 2 x 100 Bore
*Maximum working pressure (BAR)   200 200
**Required oil pressure (BAR)   170 170
Weight Excluding Hitch (kg)   2300 2450
Weight Including standard 3 Point Linkage Hitch (kg)   2367 2517
Weight of standard 3 Point Linkage Hitch (kg)   67 67
weight of Direct cut grass kg/m3   414 414
**Payload @ 414kg/m3 material  (fresh cut silage)   3270.6 3684.6
**gross weight of unit C/W  Hitch 800kg/m3 material x Capacity(kg)   5637.6 6201.6

All measurements approx (±5mm, ±5kg), Bracket weights vary
*Machines operating above 200 BAR will require a pressure relief valve
**This information depends on the type of silage and serves as guidance only.
