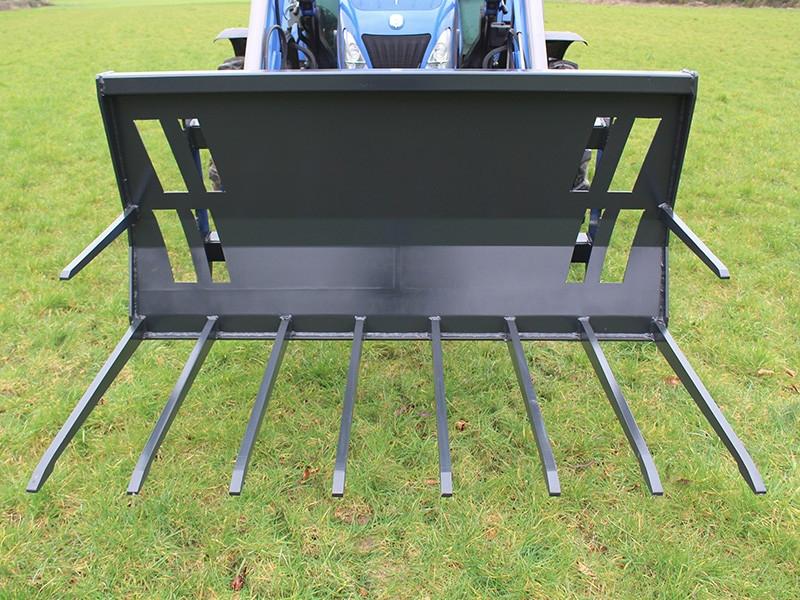

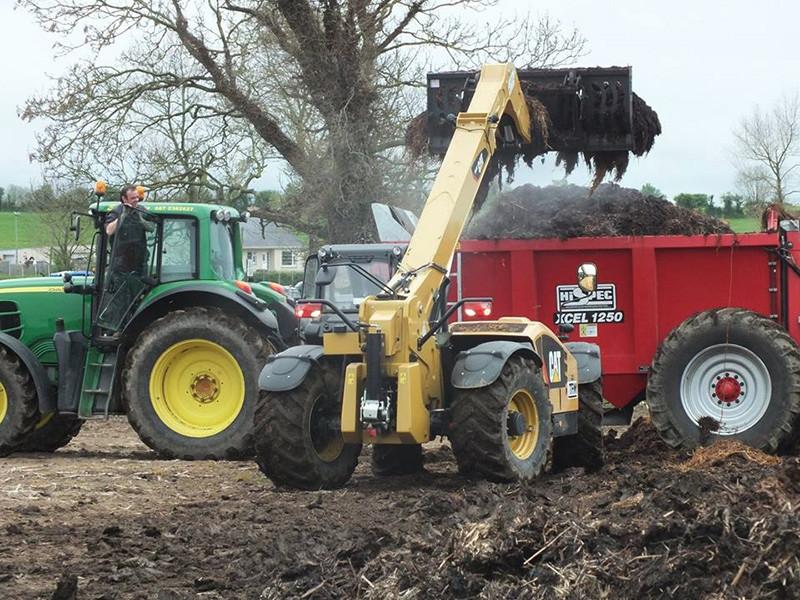

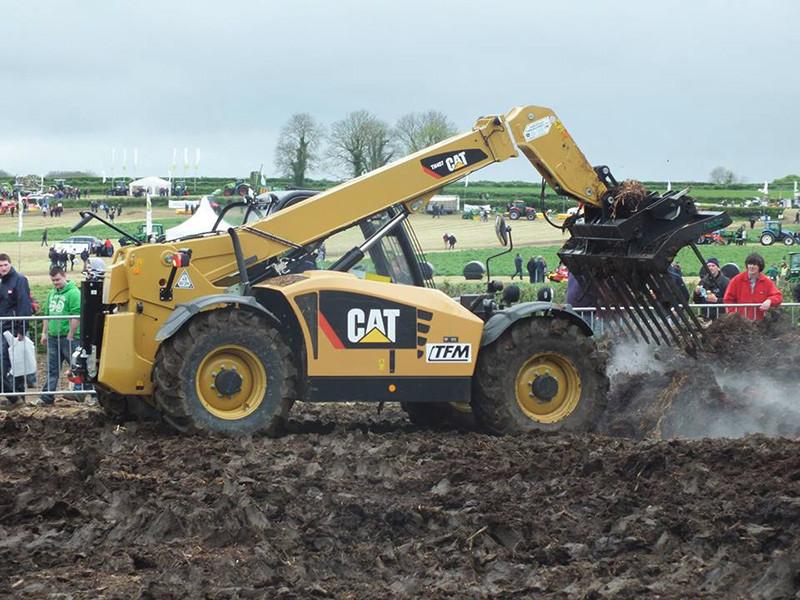

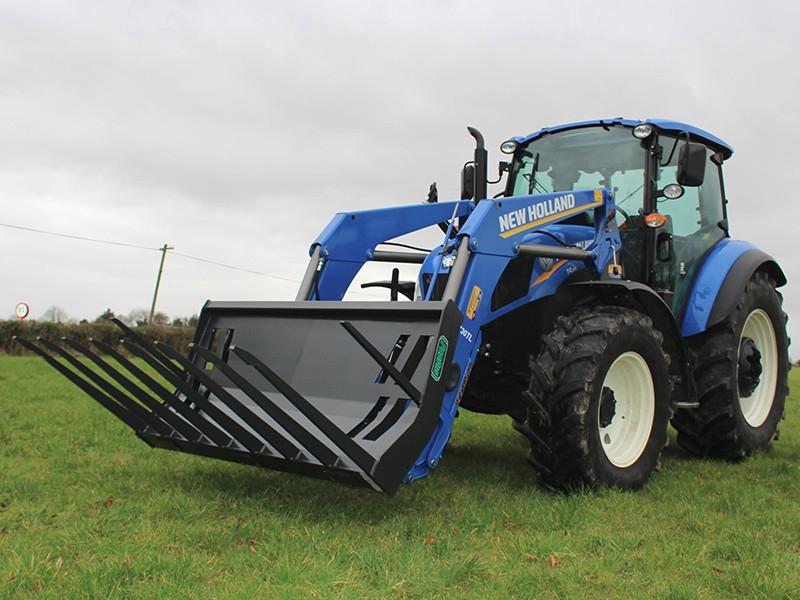

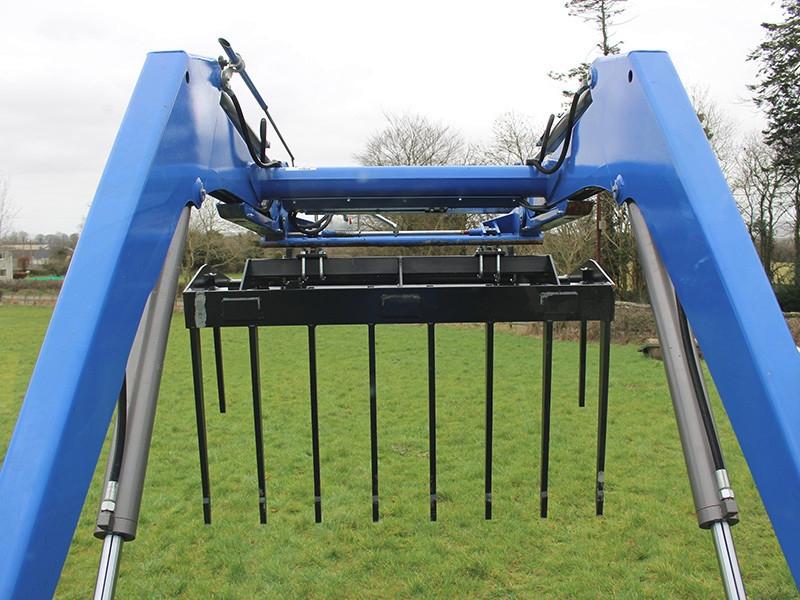

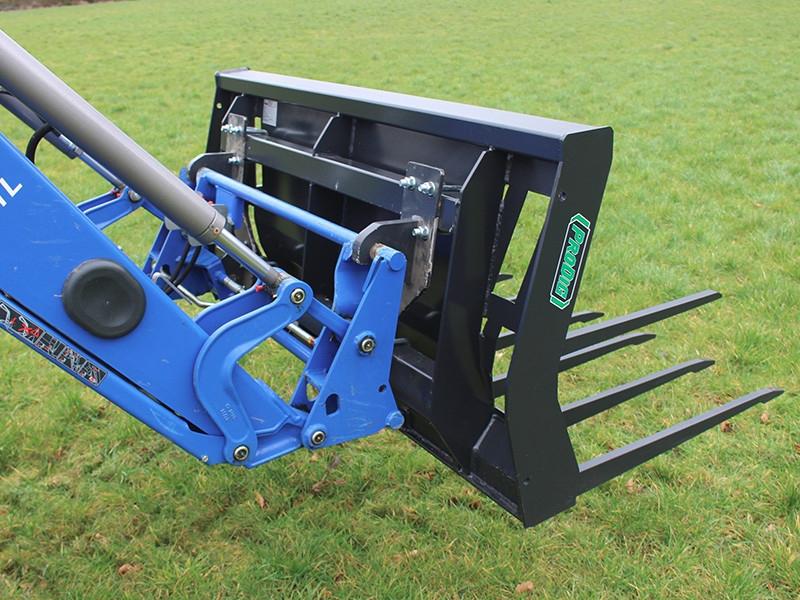

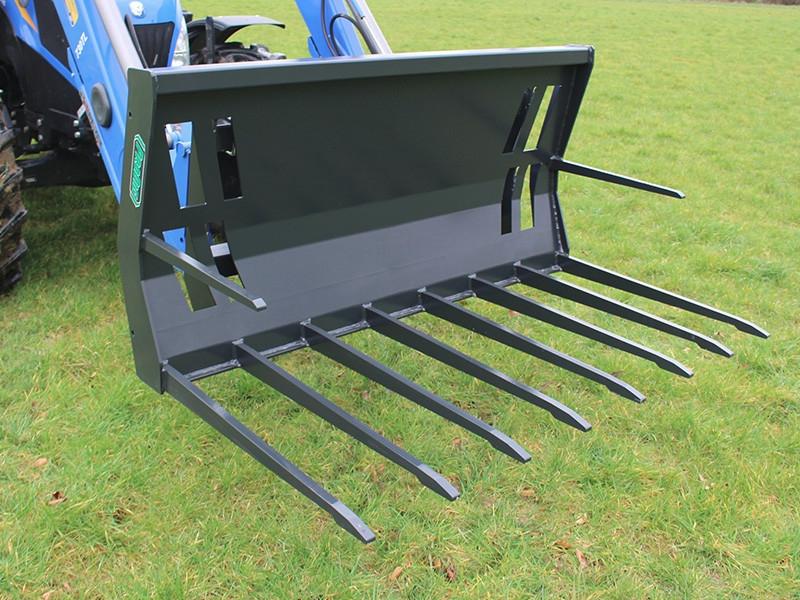

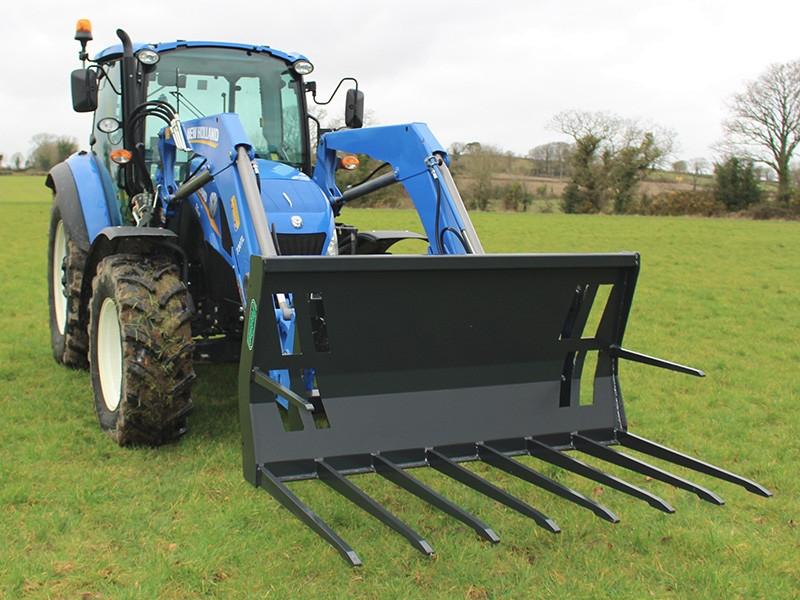

The Prodig Manure Fork is a heavy duty and robust fork that can be used for a wide range of purposes on both tractor loaders or tele-handlers.
- Designed for use across the tractor/teleporter range of machines.

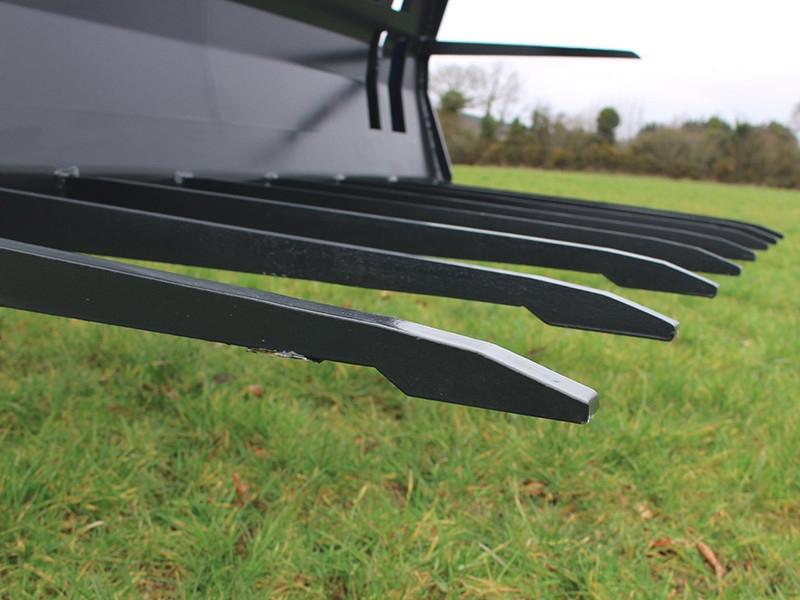

- 1020mm profiled 25mm Hardox tines used in bottom bar for long service life.
- Hardox tines are manufactured with replaceable wear tips meaning the tine never has to be replaced.
- Also available with drop forged tines with weld in bushes.
- Forks available in widths from 1.8m to 2.5m.

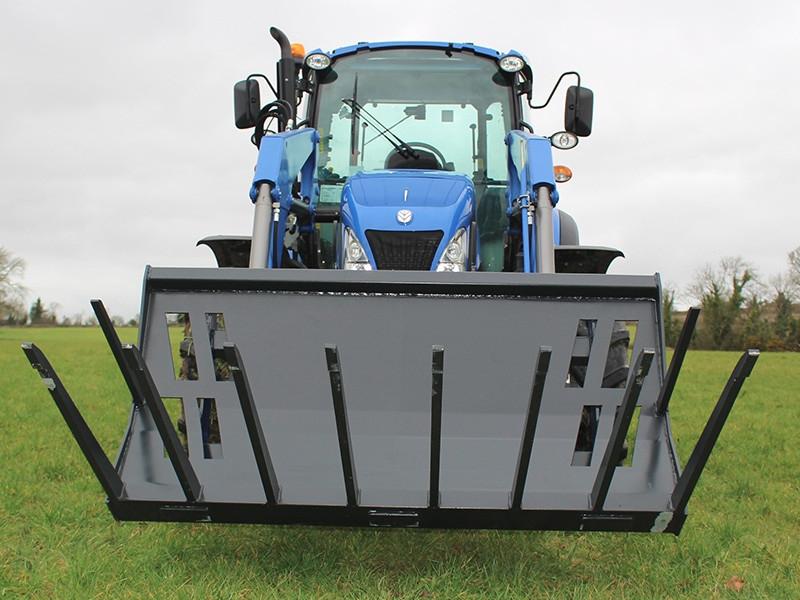

- Heavy duty fork back with vision windows to view outer tines when loading.

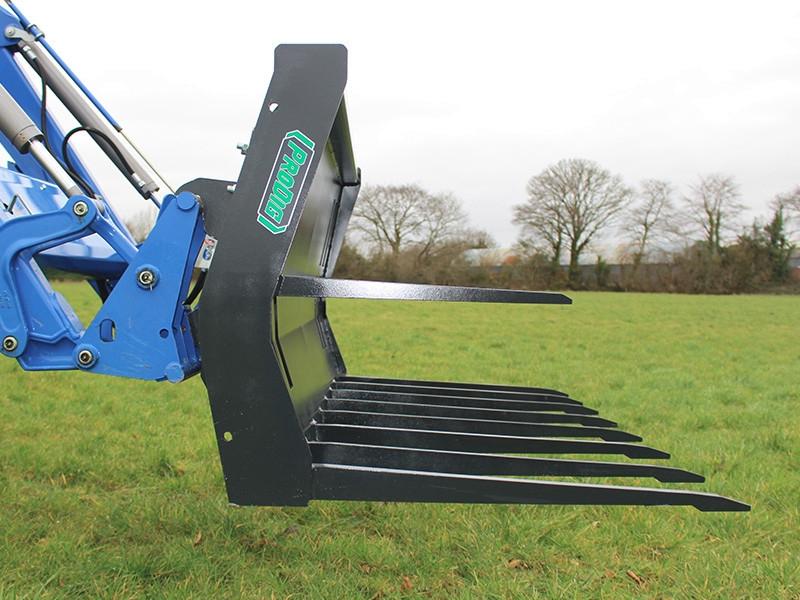

- Engineered and fabricated bottom section for superior structural strength and rigidity.
- Bolt on hitches available to fit all machines.
- Max machine lifting capacity: 5000kg
Technical Data
| Manure Fork | MF 1800 | MF2200 | |
| Width (mm) | A | 1800 | 2200 |
| Height (mm) | B | 885 | 885 |
| Depth (mm) | C | 990 | 990 |
| Weight (kg) | 280 | 330 | |
| Back (mm) | 6 | 6 | |
| Tine lenght (mm) | 1021 (40”) | 1021 (40”) | |
| Tine Width (mm) | 25mm HARDOX | 25mm HARDOX | |
| Number of tines | 8 | 10 | |
| Tine spacing | 220 | 220 |
All measurements approx. (±5mm, ±5kg).
Weight includes Bolt On Frame.
Weight excludes brackets as these vary.
