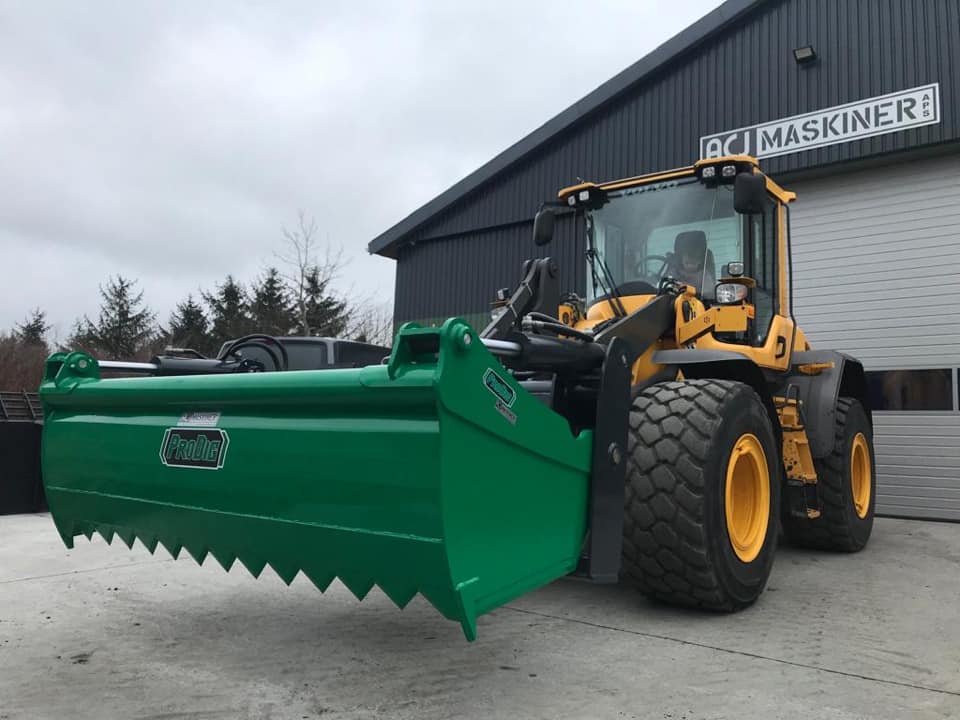

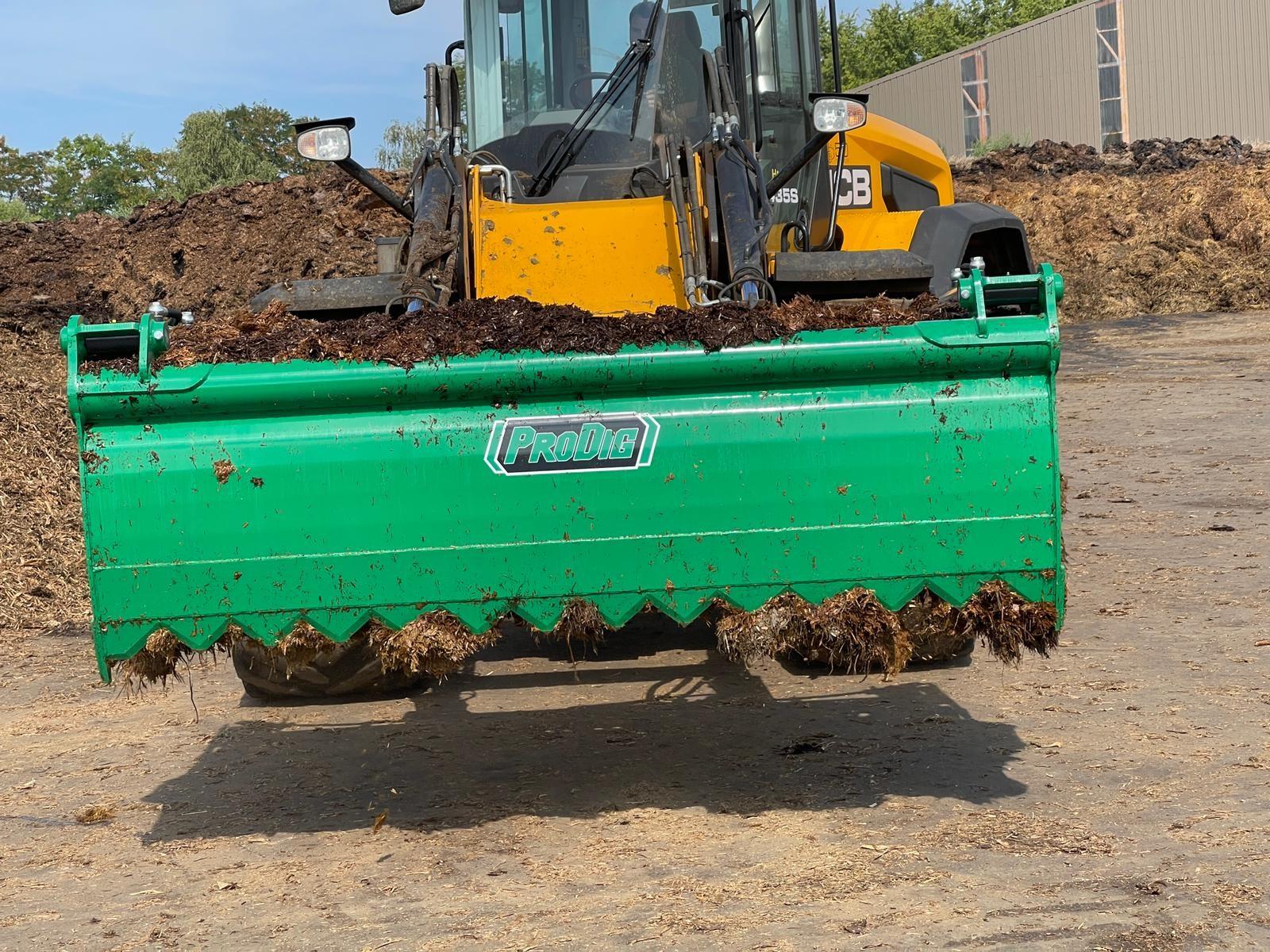

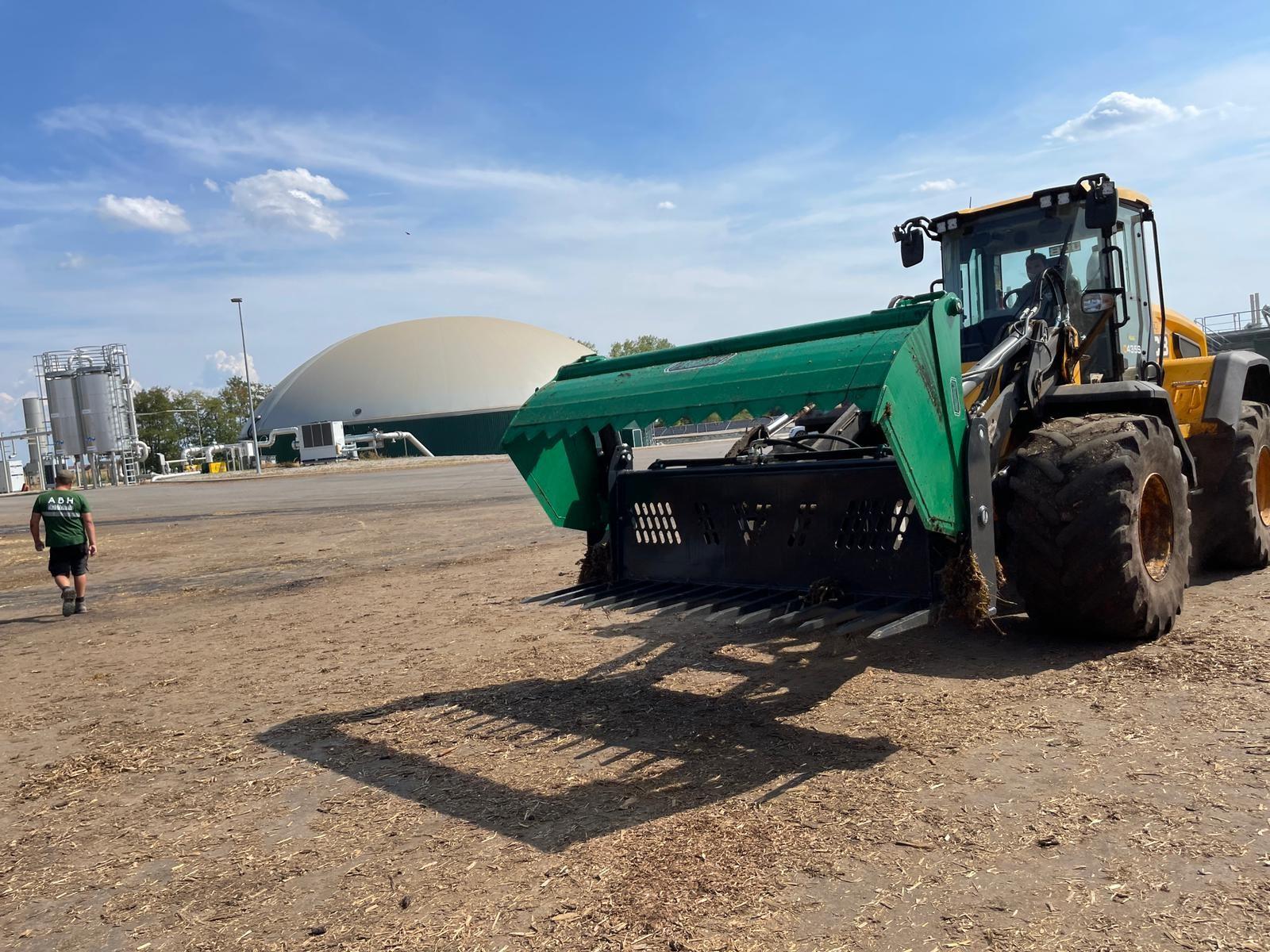

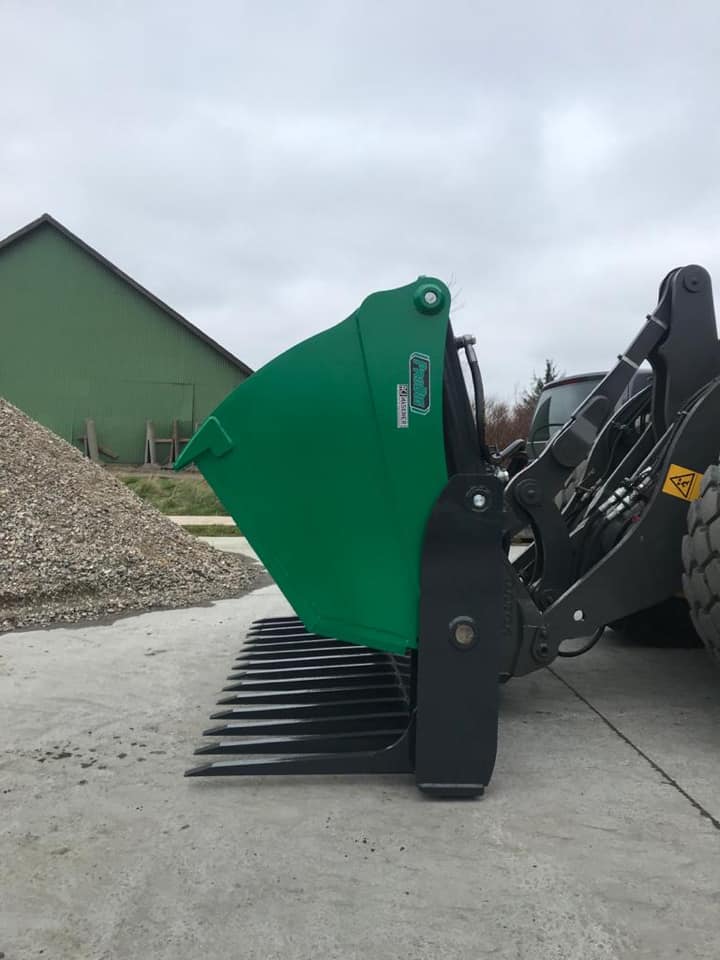

Heavy Duty Shear Grab

Description

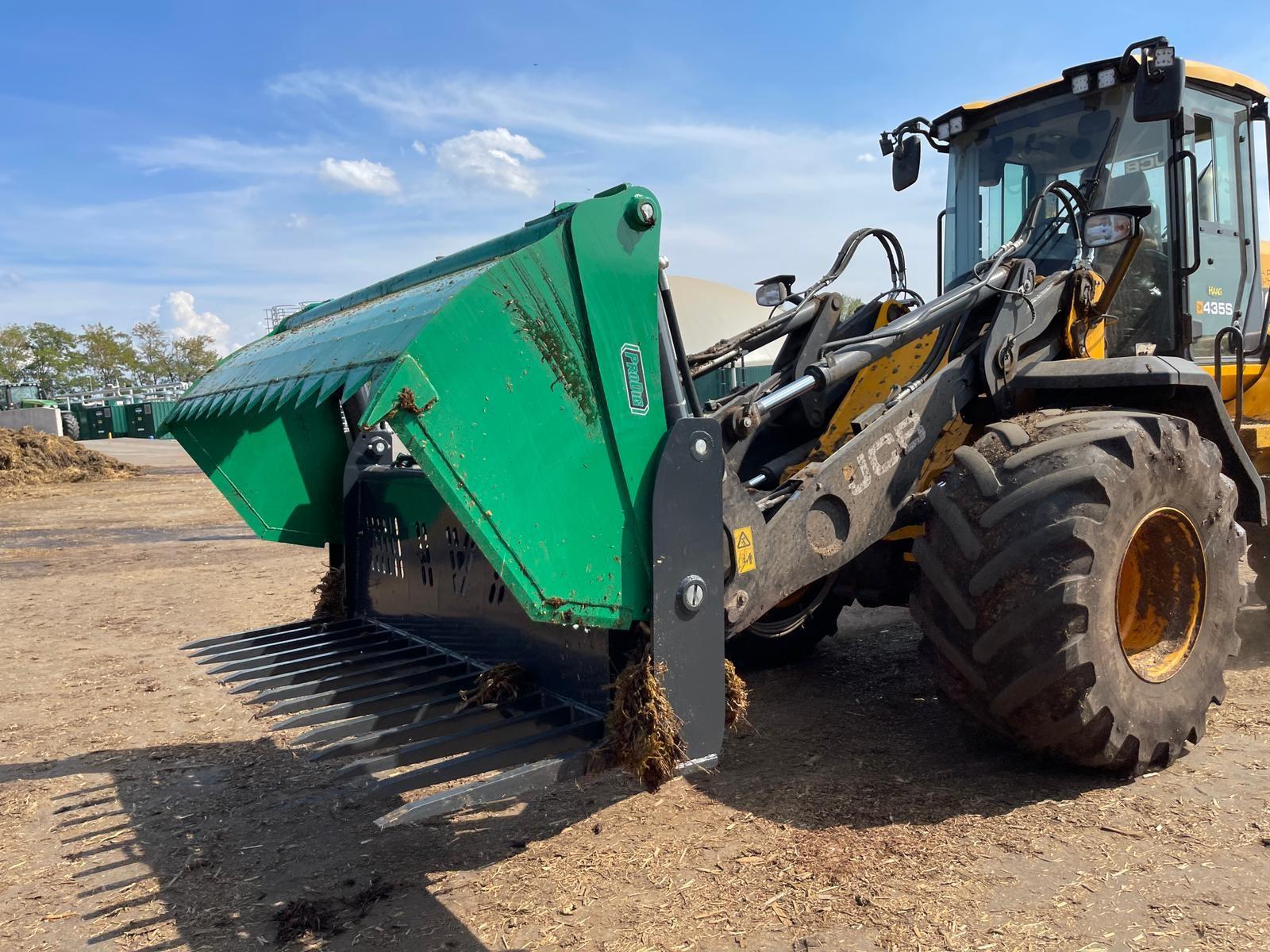

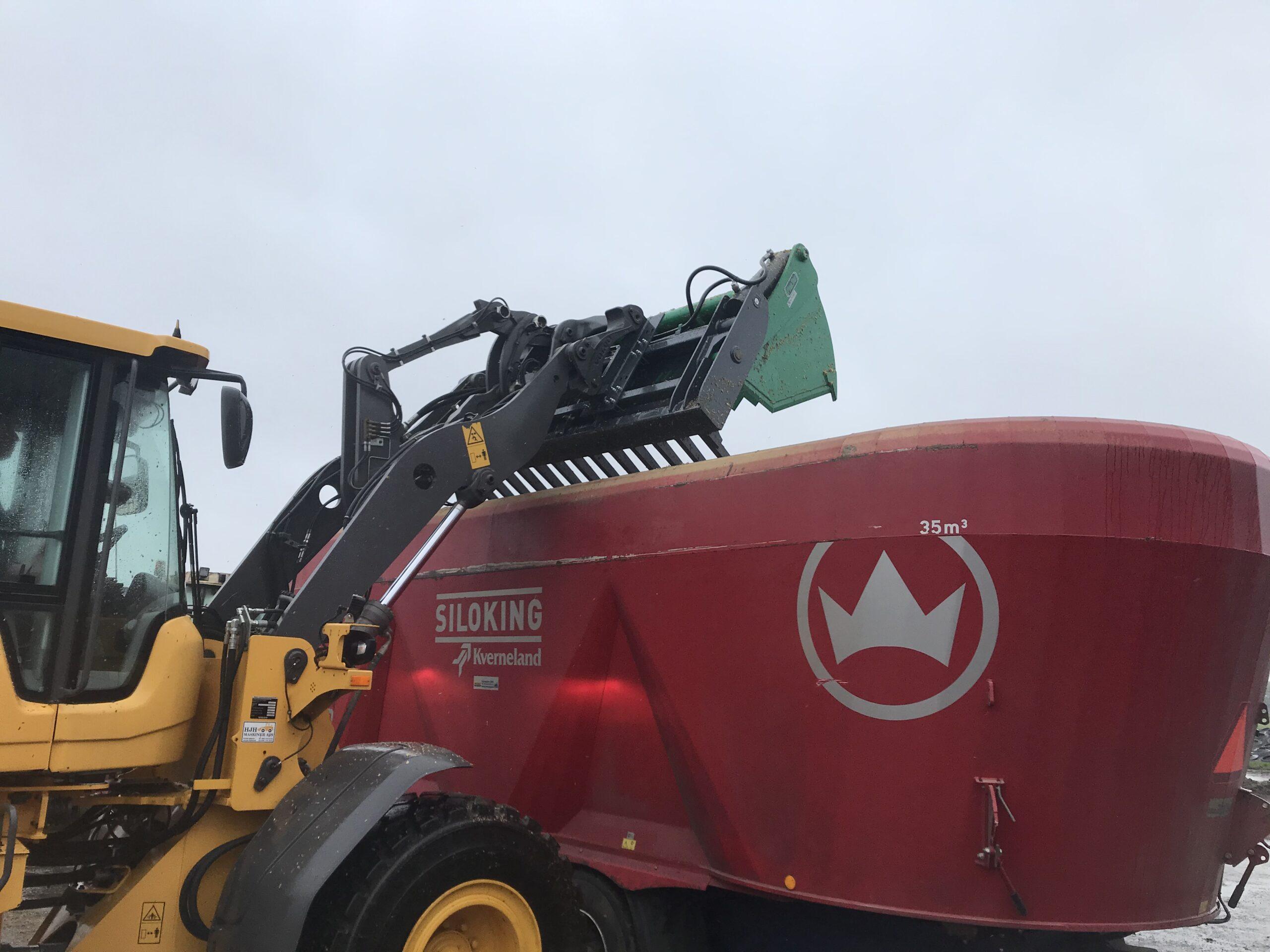

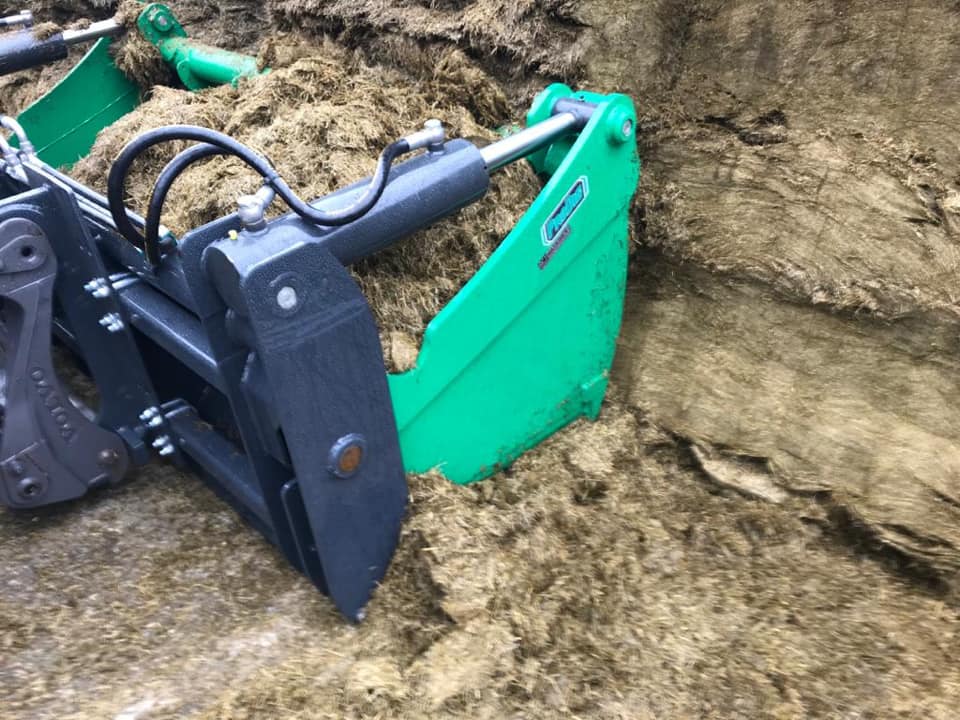

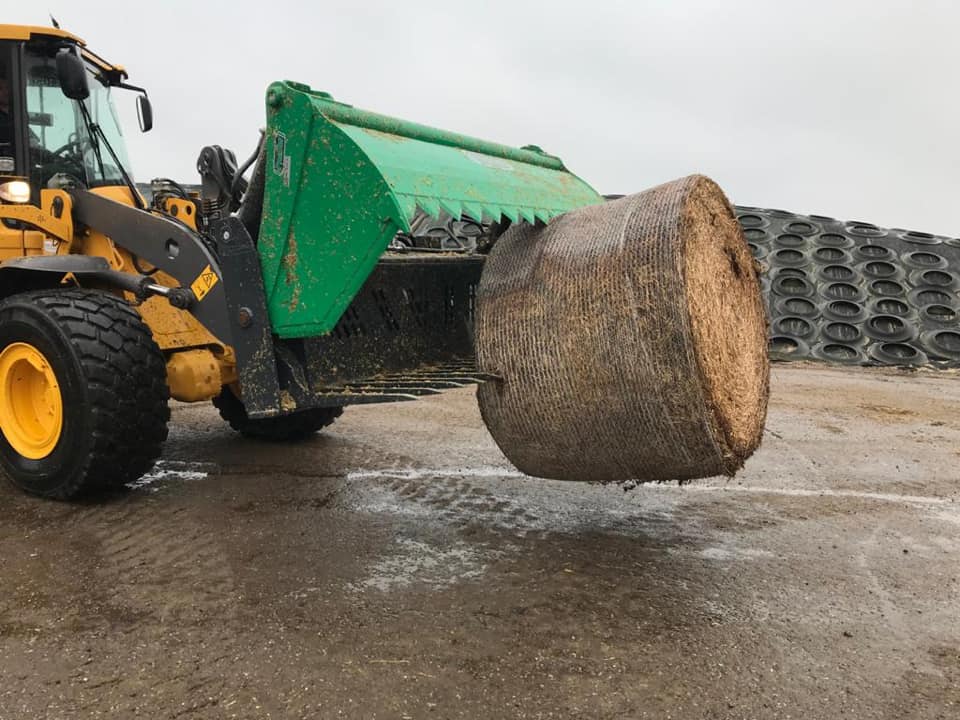

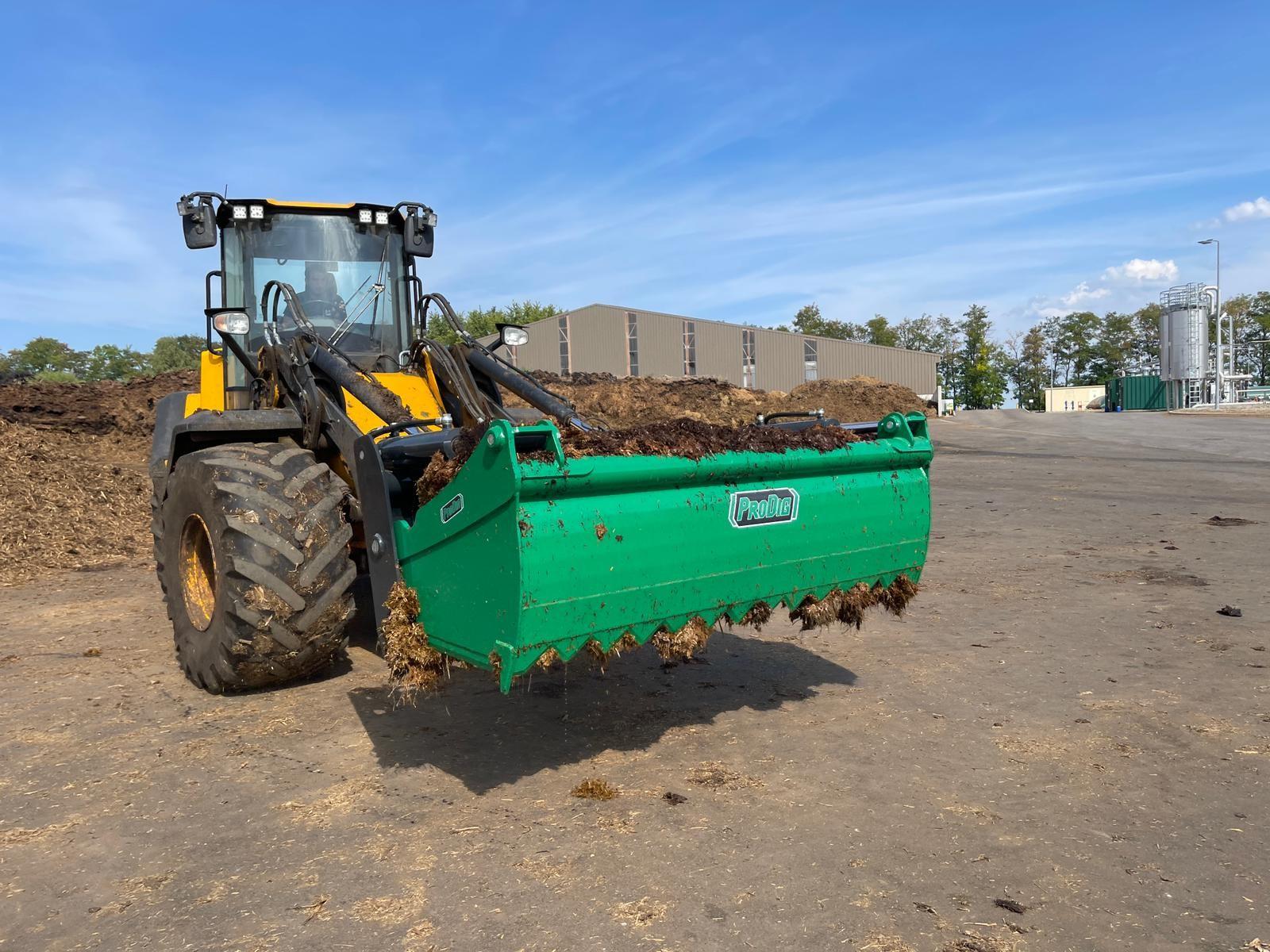

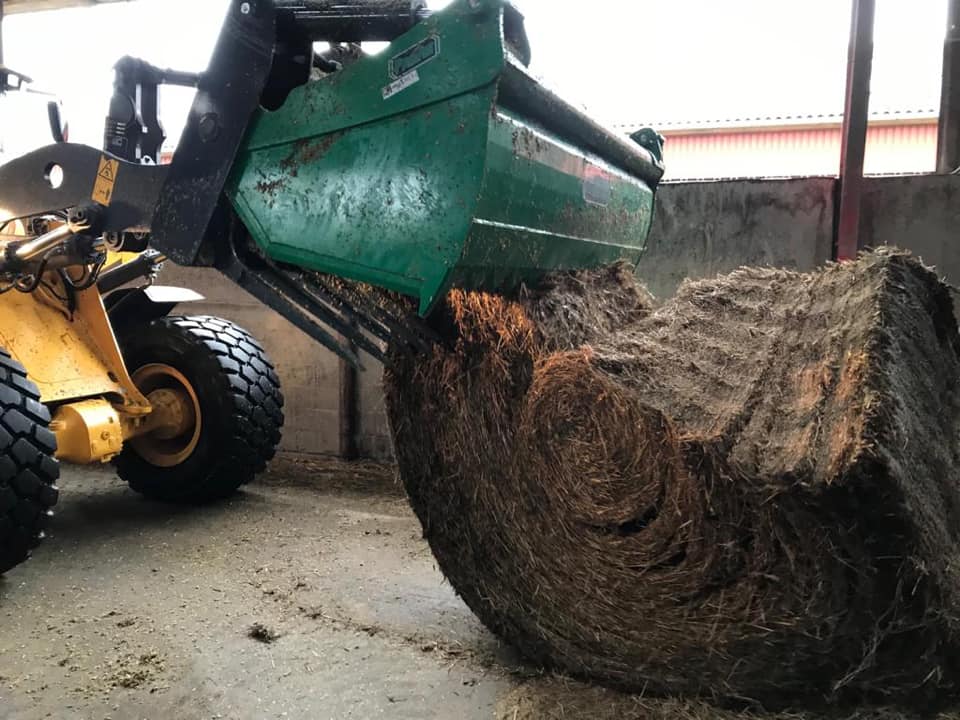

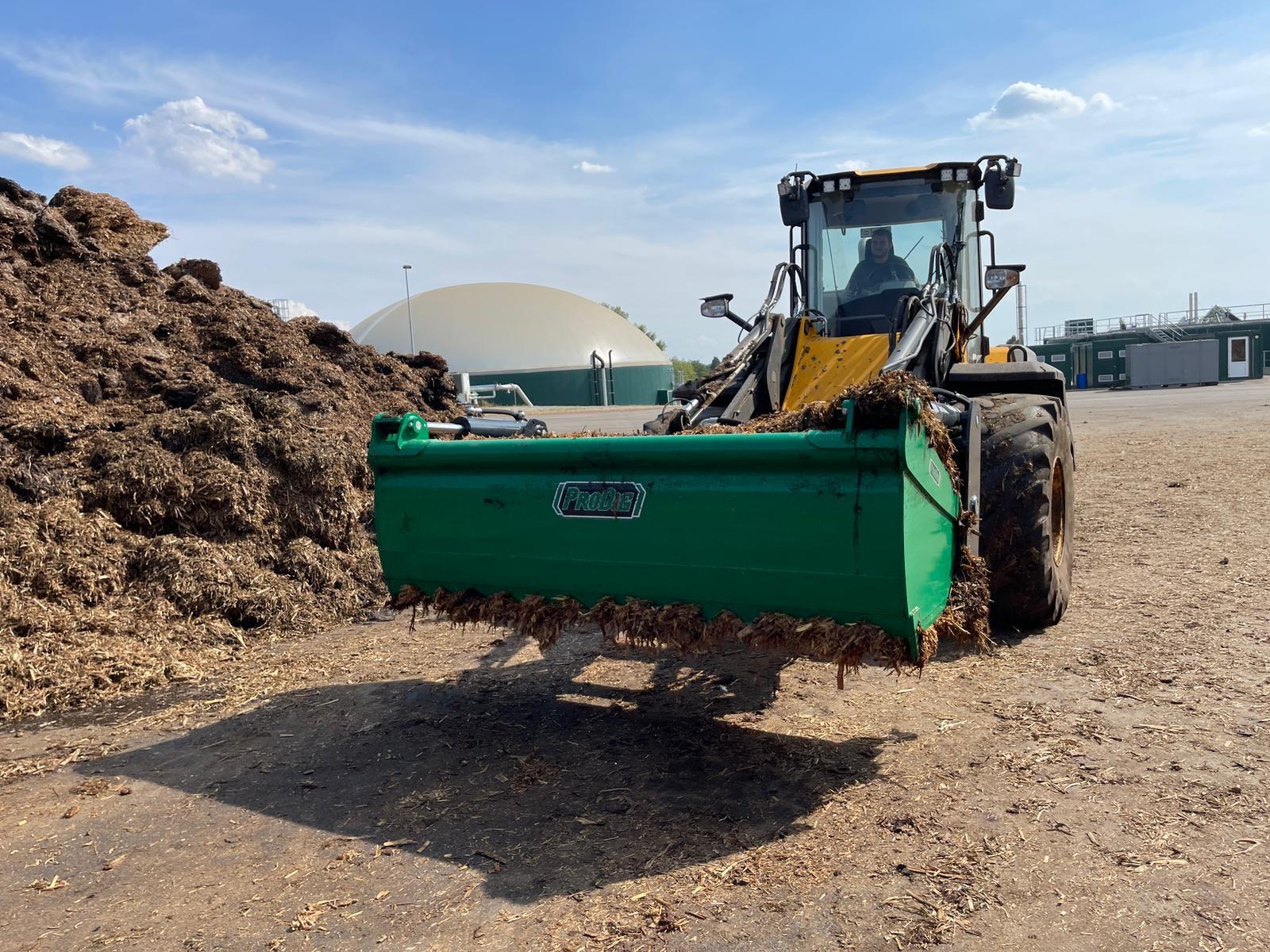

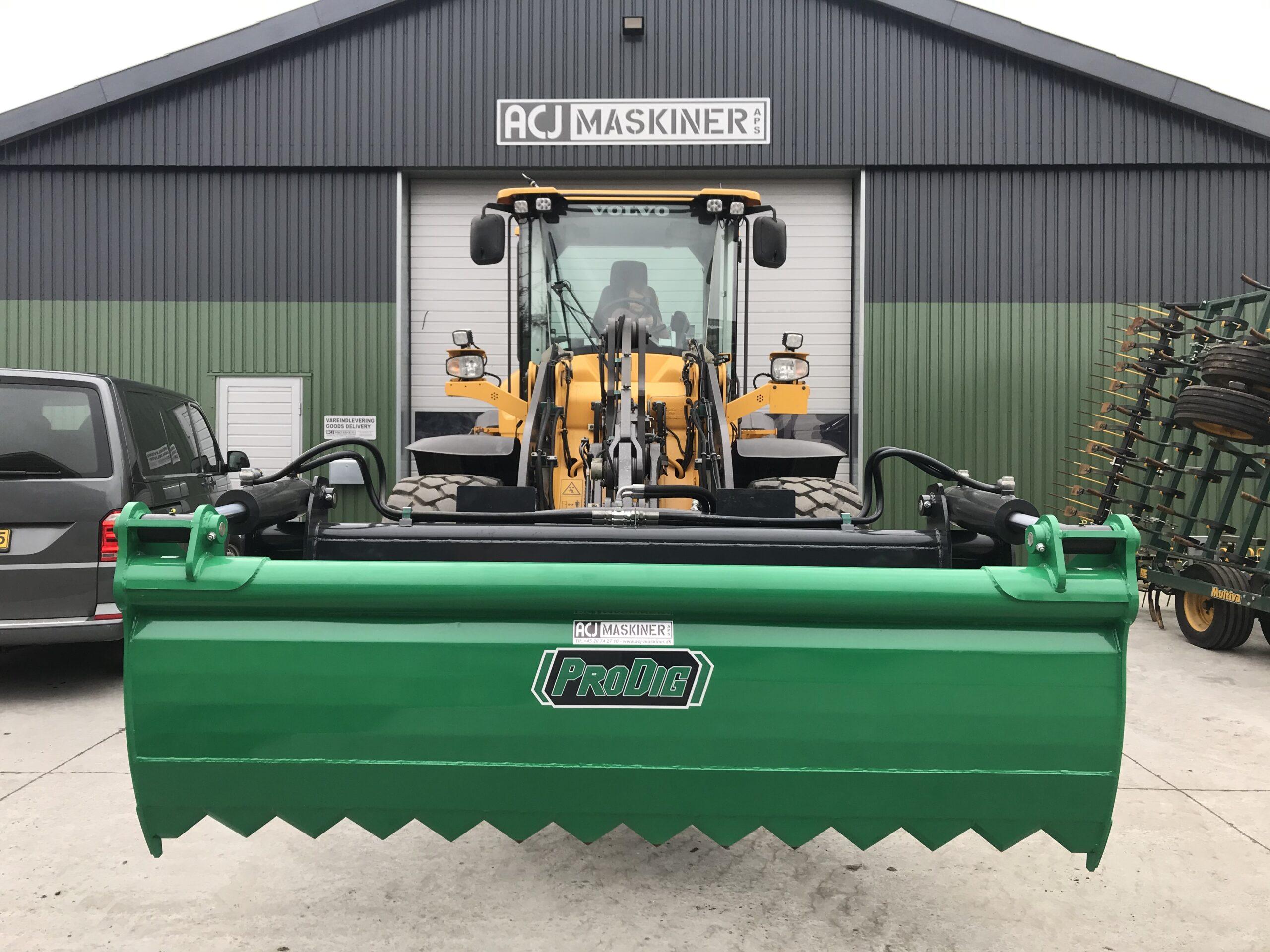

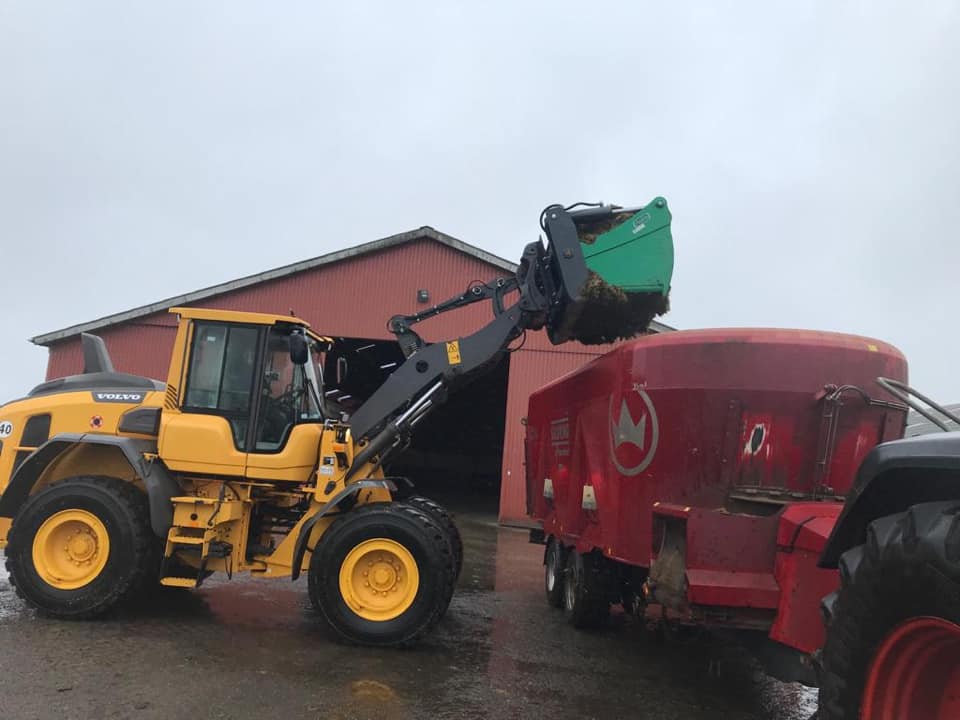

The Prodig Heavy Duty Shear Grab is designed for wheeled loaders and large telehandlers where high volume feeding is required. The heavy-duty Shear Grab is one of the strongest and most robust shear grabs on the market. It is manufactured with Hardox tines & Hardox blades to reduce waste and down time due to breakages.

• Shear grabs available in widths of 2.2m, 2.5m & 2.75m.
• Manufactured with 40mm Hardox base tines.
• 125mm Bore x 60mm rod hydraulic cylinder.
• 60mm pivot pins fitted with wrapped PTFE lined bearing bushings.
• Pivot pin is supported on both inside and outside for optimum strength.
• 40mm ram pins fitted with glacier acetal lined bushings.
• Heat treated hardened cutting blades as standard for superior cut and long life.
• 10mm Strenx 700 High Yield Steel used in fabricated bottom bar on fork. (700MPa Yield Strength).
• 25mm Hardox 450 grapple top arms (1250MPa Yield Strength).
• Nickel chrome plated hydraulic rams for long life in aggressive environment.
• Bolt on hitch brackets to suit all machines.
• Optional pressure relief valve for machines in excess of 200 Bar hydraulic pressure.

Technical Data

 All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve.
**This information depends on the type of silage and serves as guidance only.
