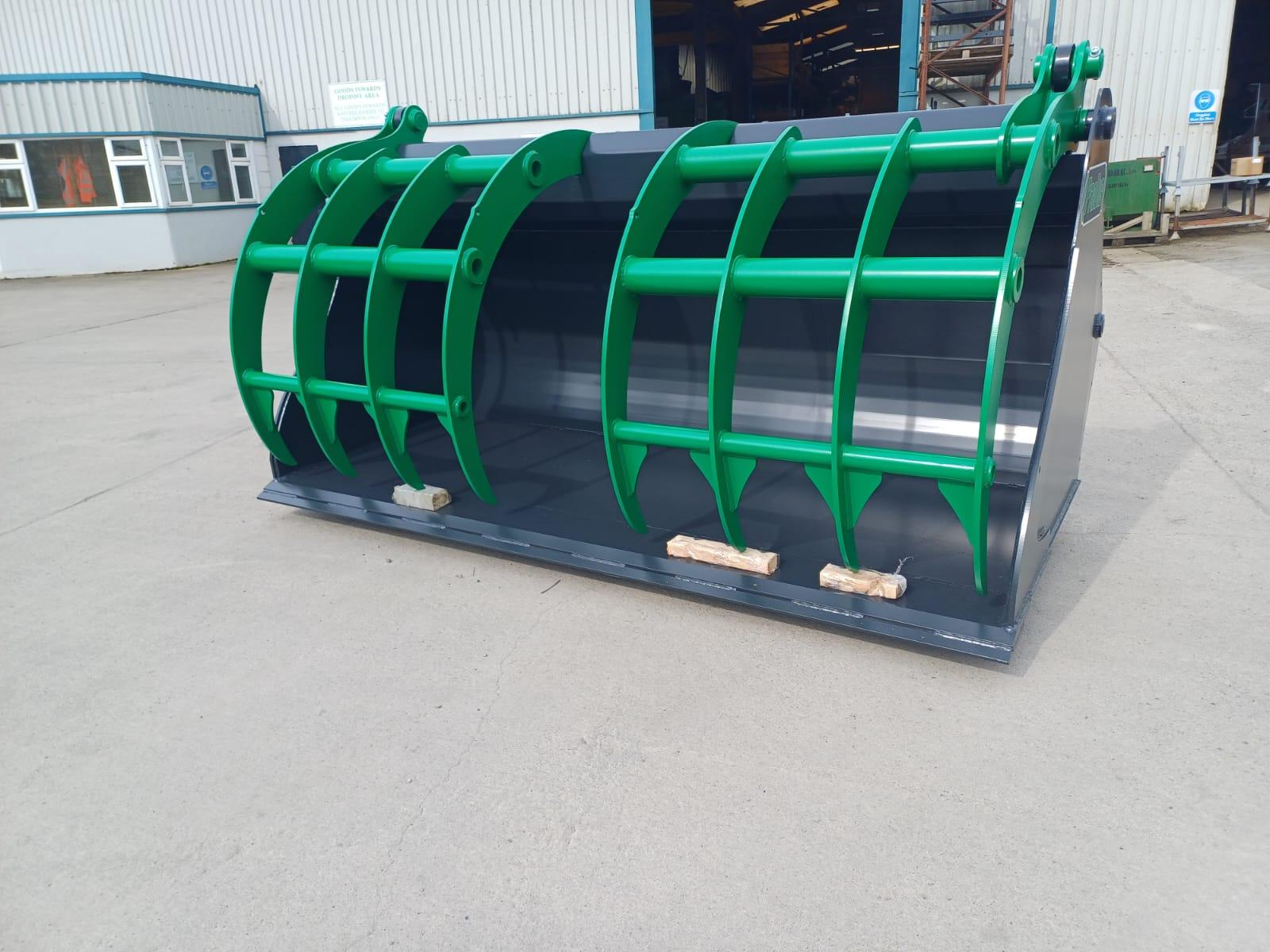

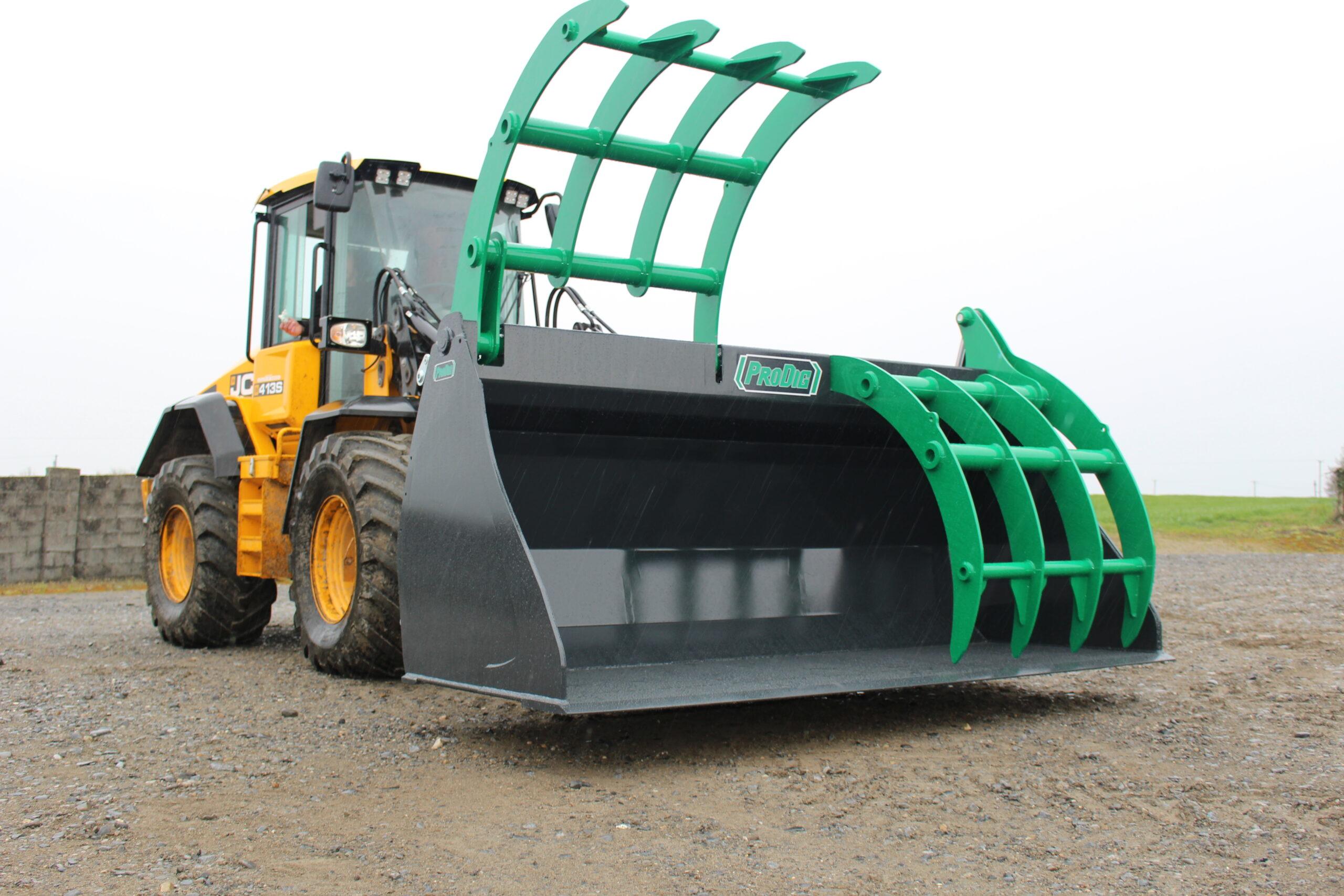

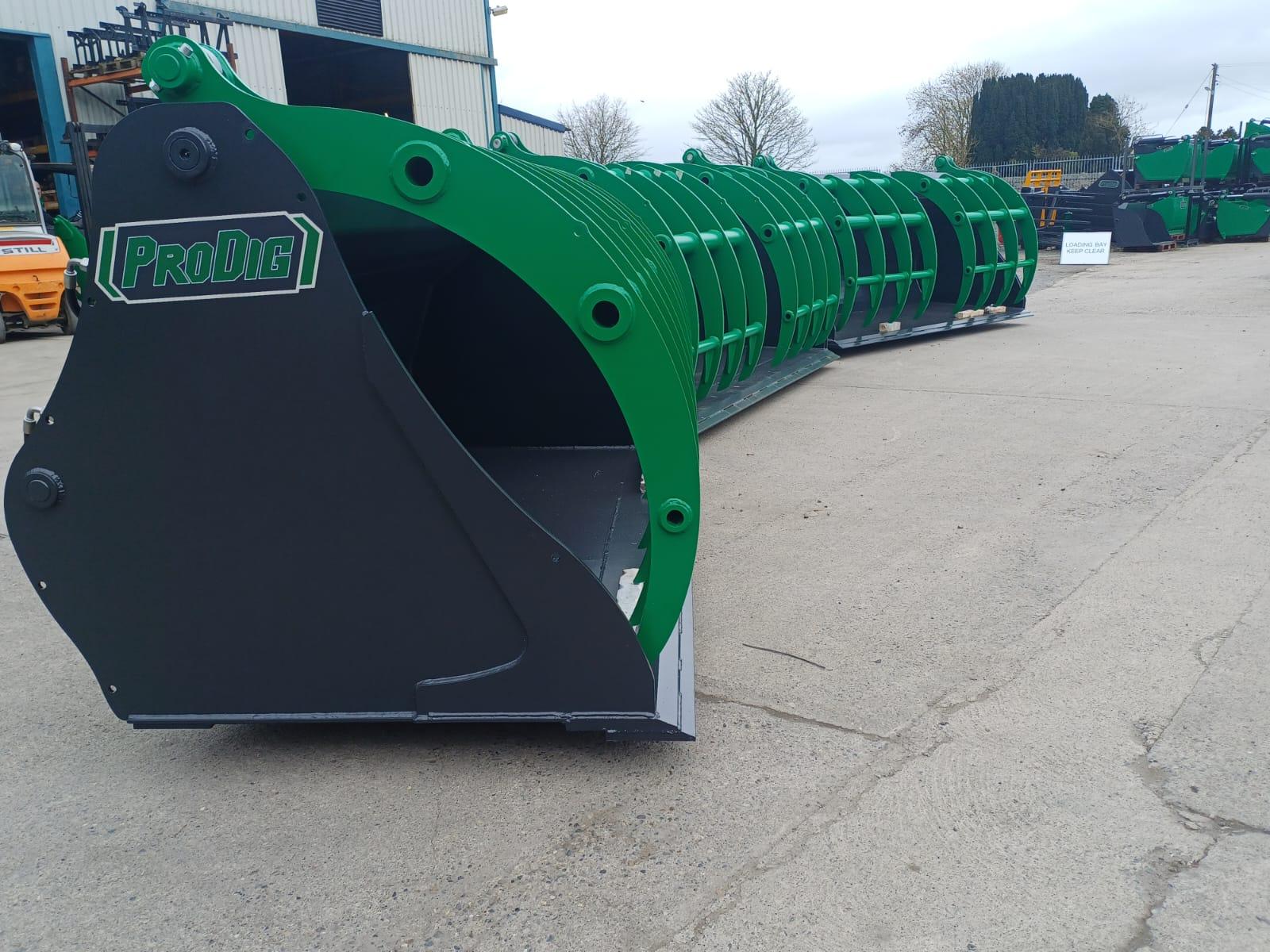

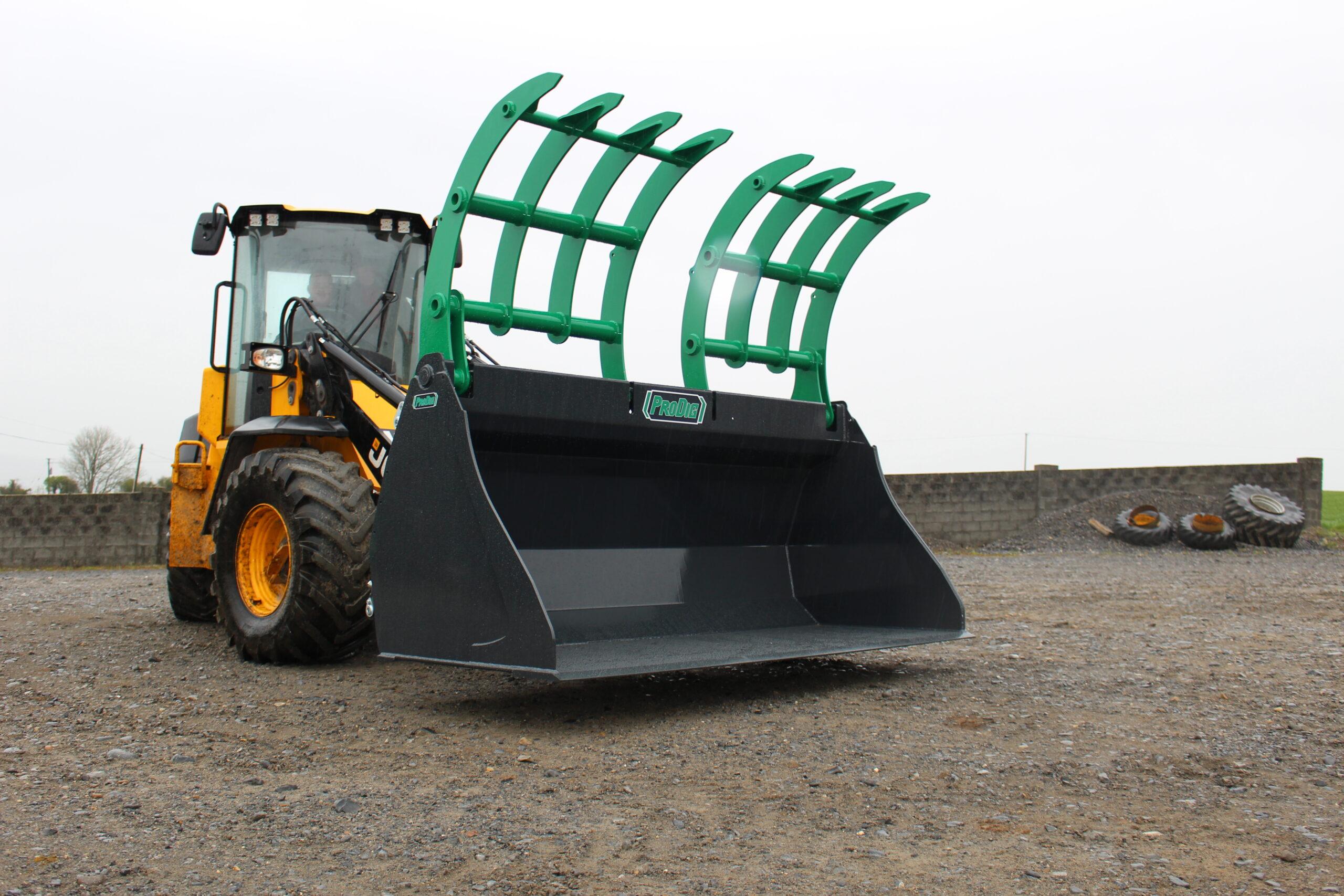

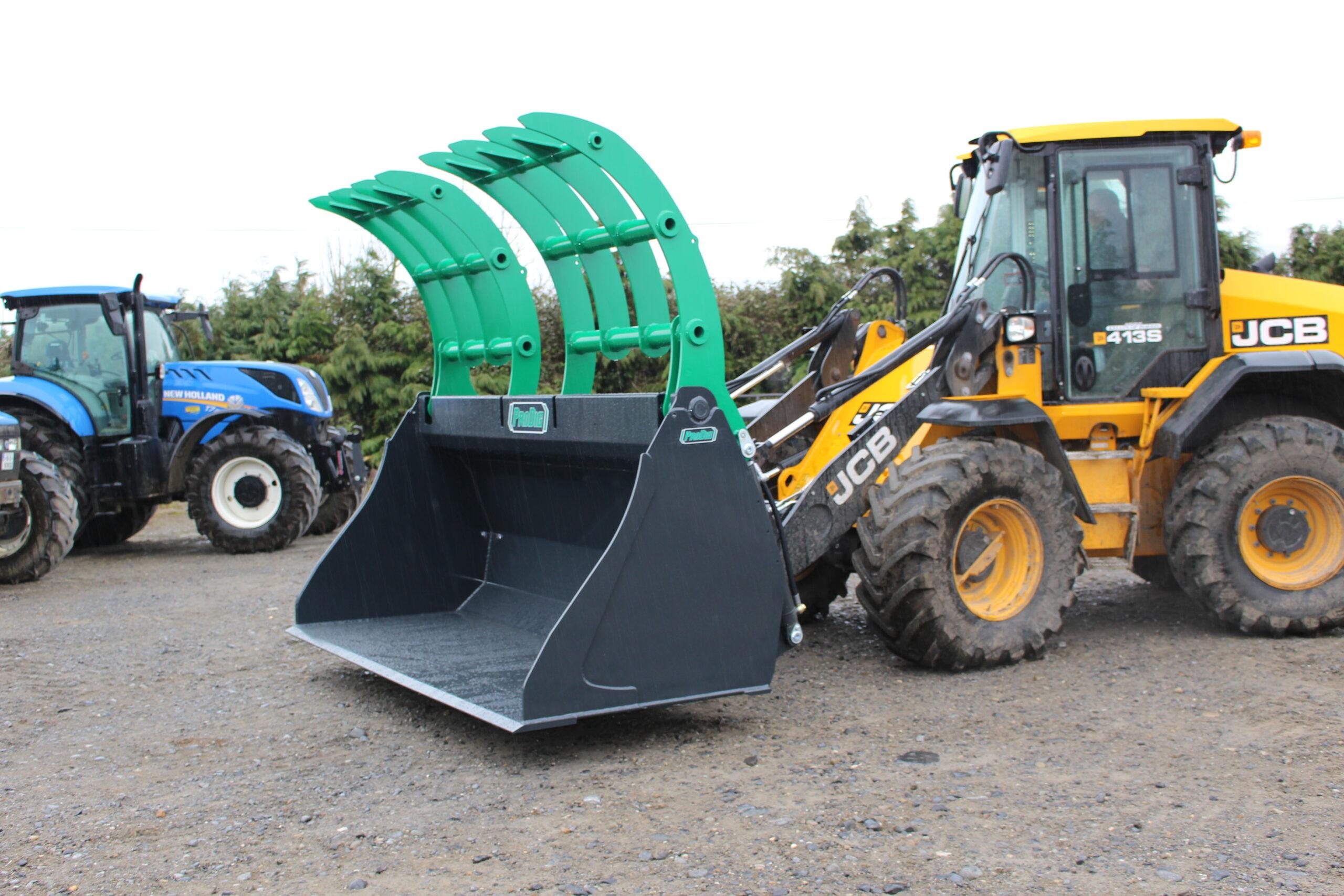

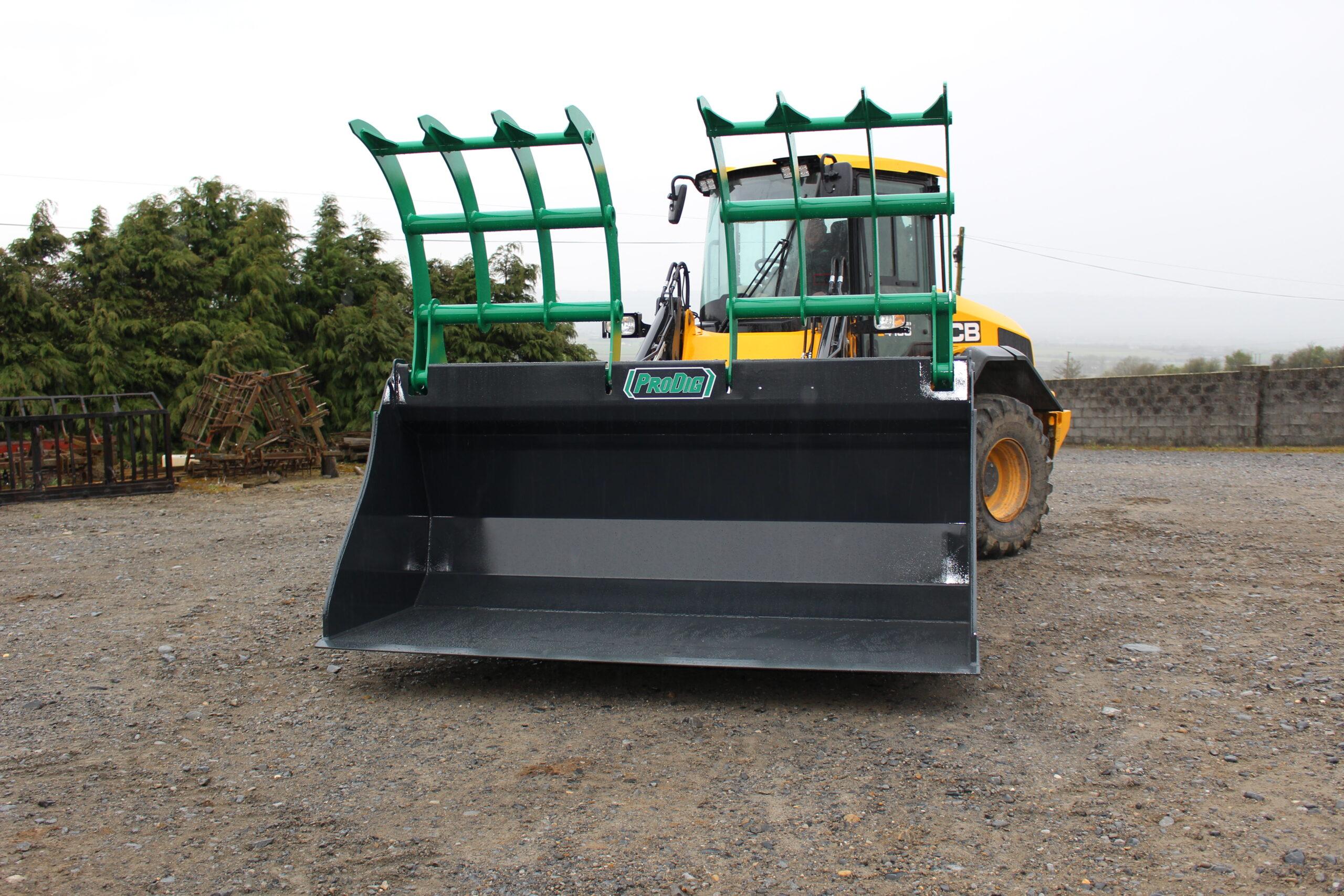

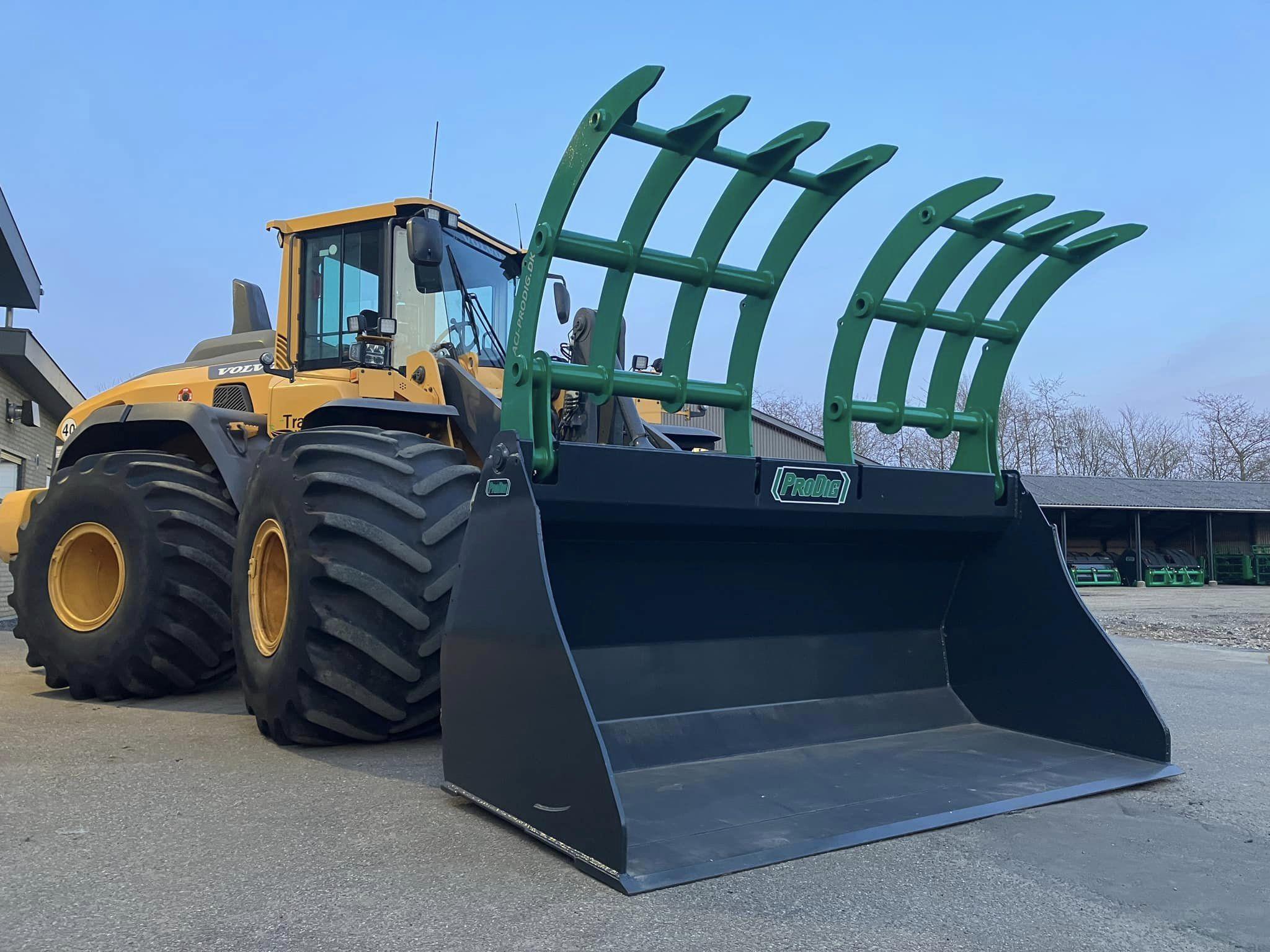

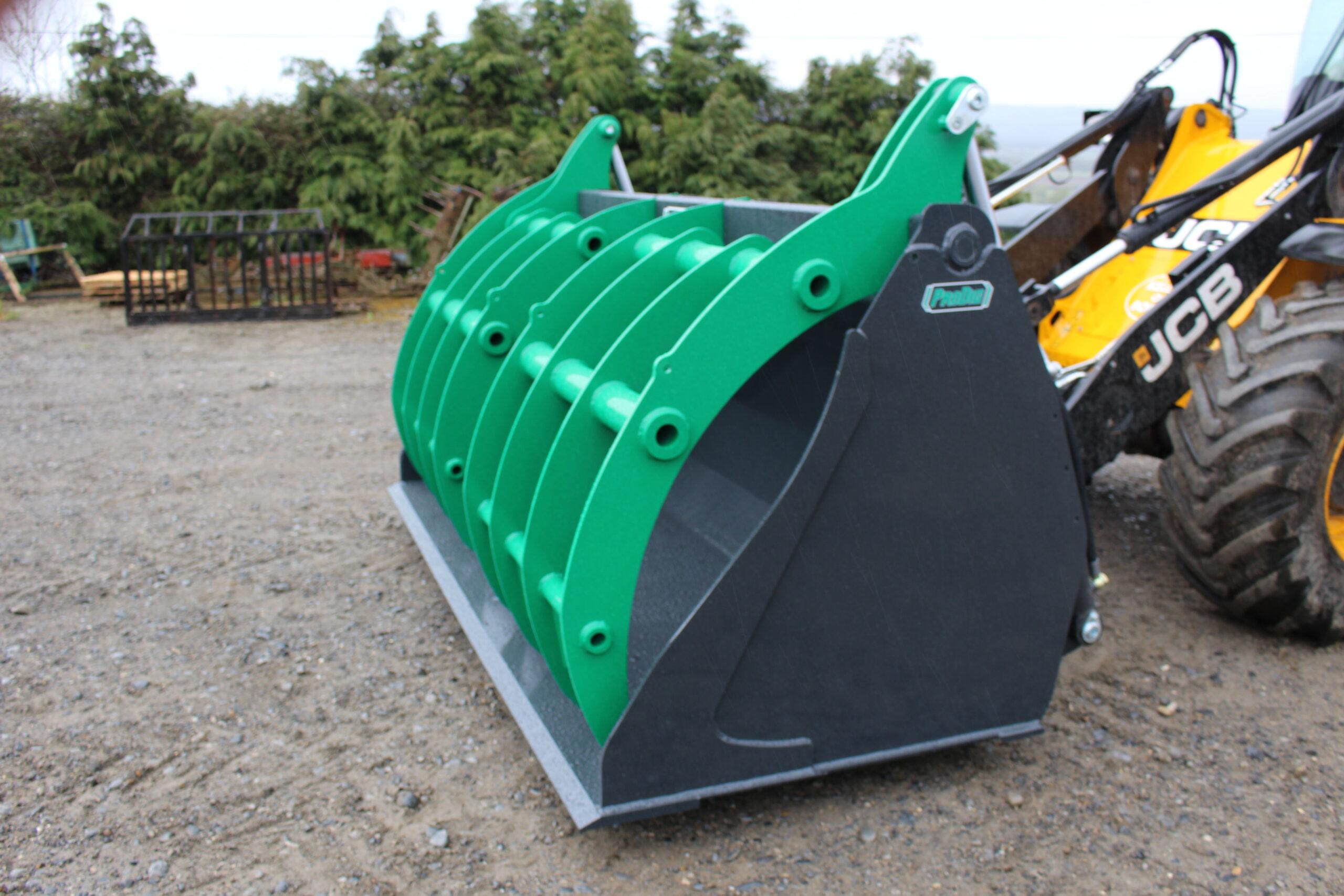

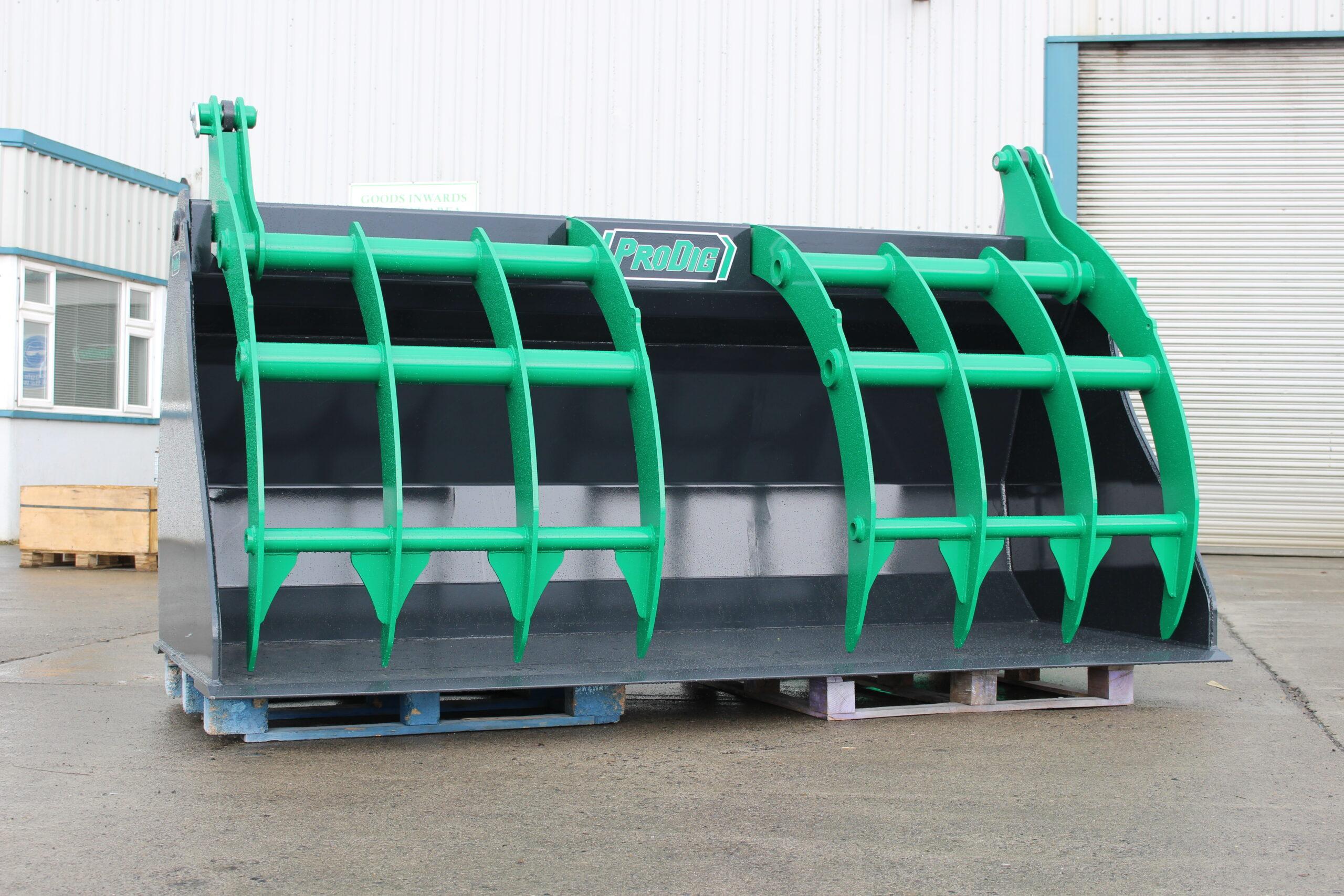

HD General Purpose Grapple Bucket
Description

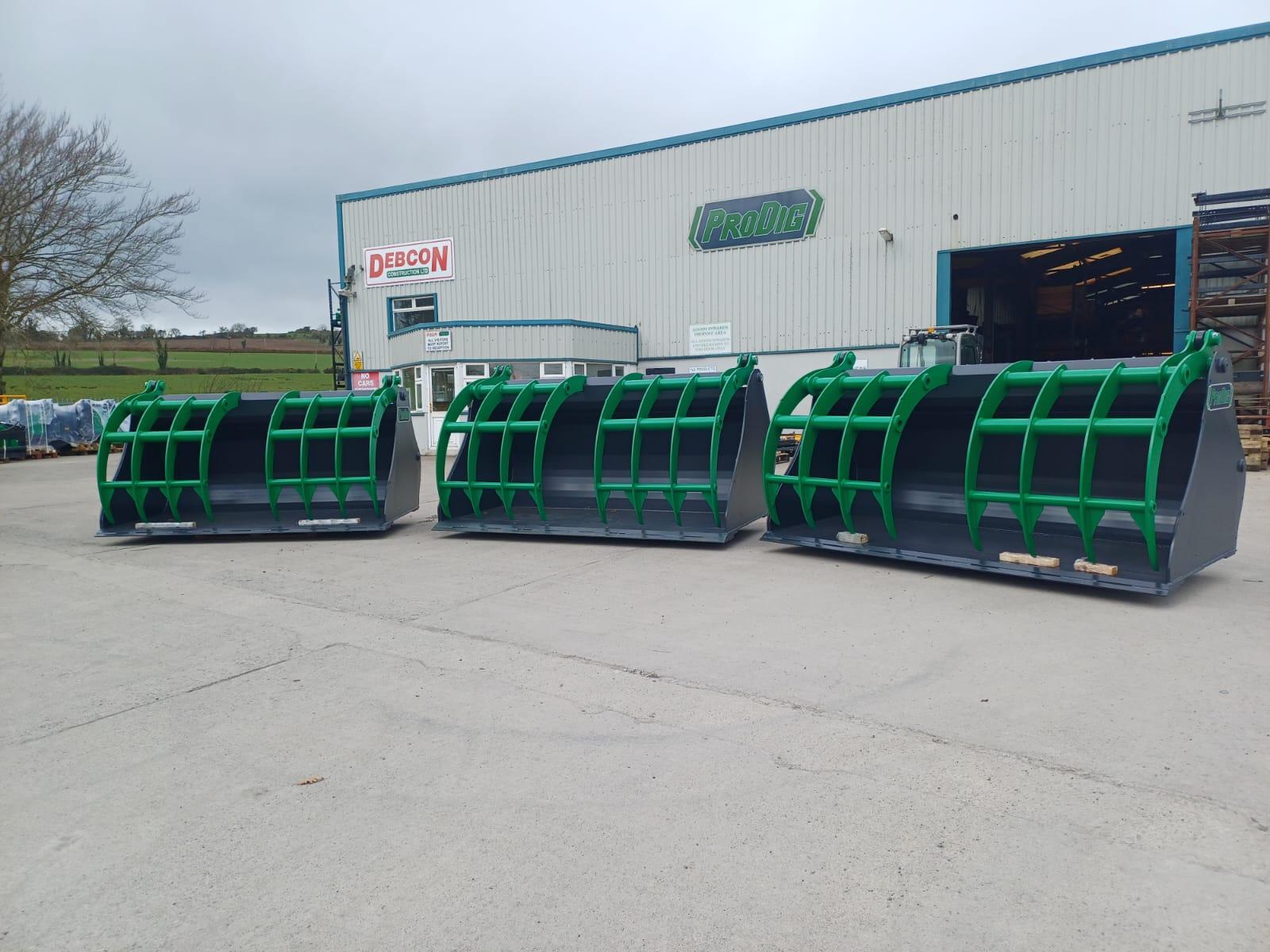

- Available in a range of sizes 2.2m3(2.6m wide) up to 4.0m3 (3.2m wide).
- Designed for intense heavy duty use such as loading, re-handling, etc..
- Independent grapples to handle variable material sizes in width from 2.6m-3.2m for loaders with a 11 to 21 tonne equivalent lift or breakout force.
- Hardox floor and bucket side edge, with 400 grade steel cutting edge.
- Grapple Hardox tines as standard with heavy walled crossmembers.

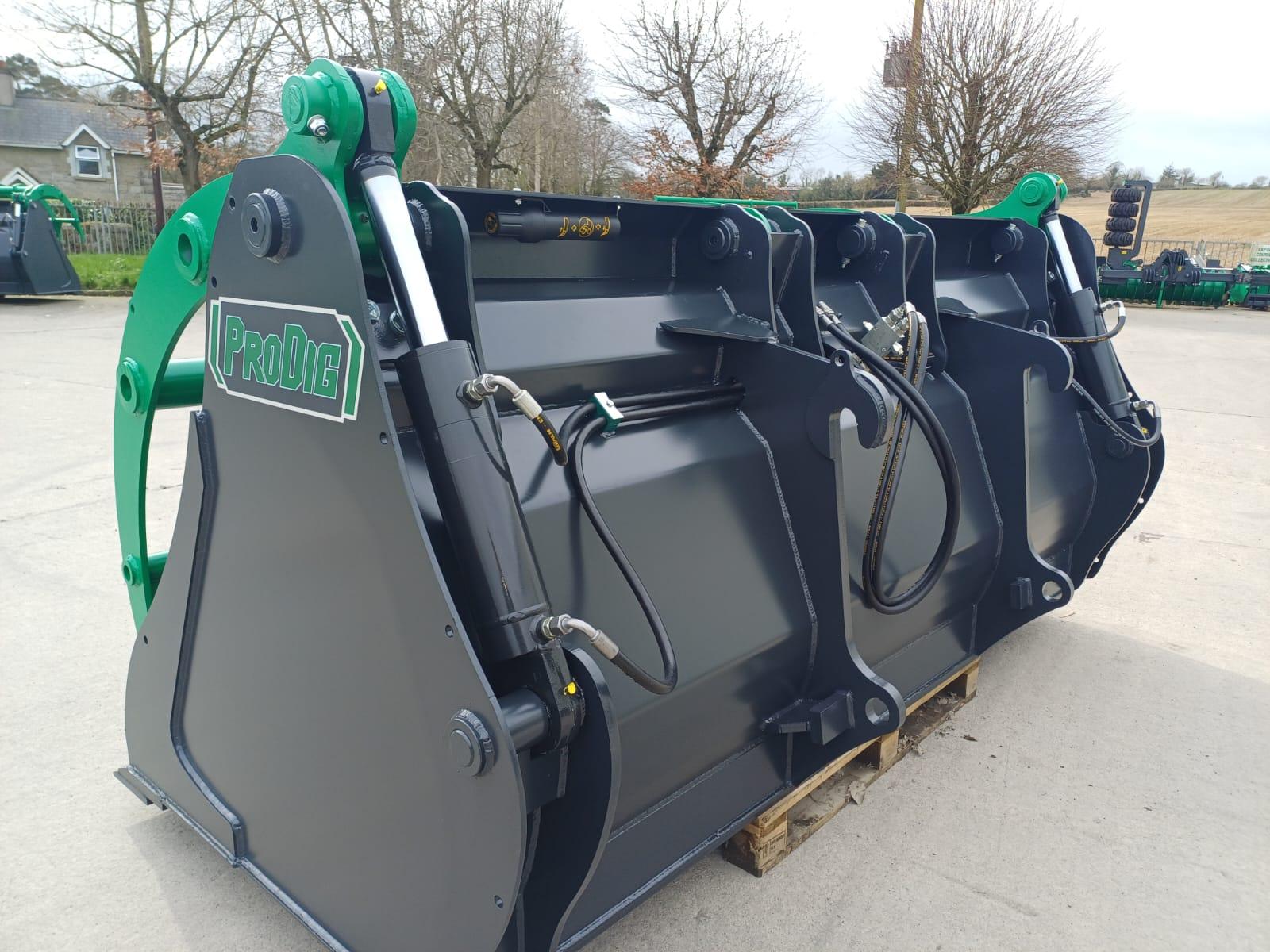

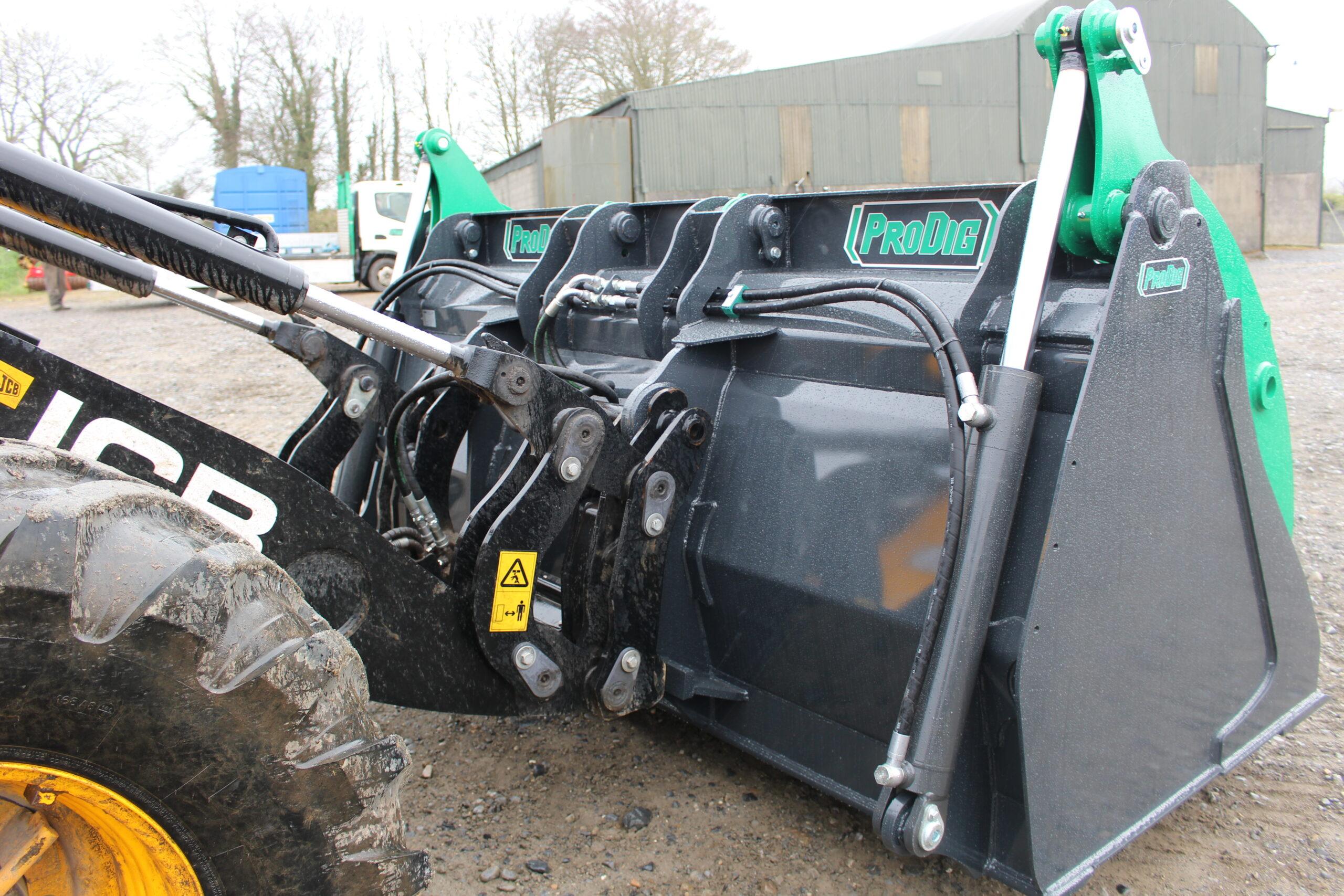

- All pivot points fitted with replaceable bushings and greaseable pins easily accessible from the side.
- Suitable for handling loose material, including livestock feed, manure, compost & woodchip, etc..
- Hardox leading edge side supports.
- Optional weld-on 400 grade steel cutting edge.
Technical Data
| GPB | Loader Capacity Range | Width (mm) | Weight (Kg) | Heaped (ISO Standard 7546) (m3) |
| GPB 2.2 | 11-14 Ton | 2600 | 1510 | 2.2 |
| GPB 2.4 | 11-14 Ton | 2800 | 1605 | 2.4 |
| GPB 2.5 | 11-14 Ton | 3000 | 1685 | 2.5 |
| GPB 2.9 | 14-17 Ton | 2600 | 1570 | 2.9 |
| GPB 3.15 | 14-17 Ton | 2800 | 1730 | 3.15 |
| GPB 3.4 | 14-17 Ton | 3000 | 1810 | 3.4 |
| GPB 3.6 | 14-17 Ton | 3200 | 1890 | 3.6 |
| GPB 3.5 | 17-21 Ton | 2800 | 1840 | 3.5 |
| GPB 3.7 | 17-21 Ton | 3000 | 1890 | 3.7 |
| GPB 4.0 | 17-21 Ton | 3200 | 1980 | 4 |
All measurements approx (±5mm, ±5kg),
Weight may differ as brackets vary,
Please contact us for more accurate spec
