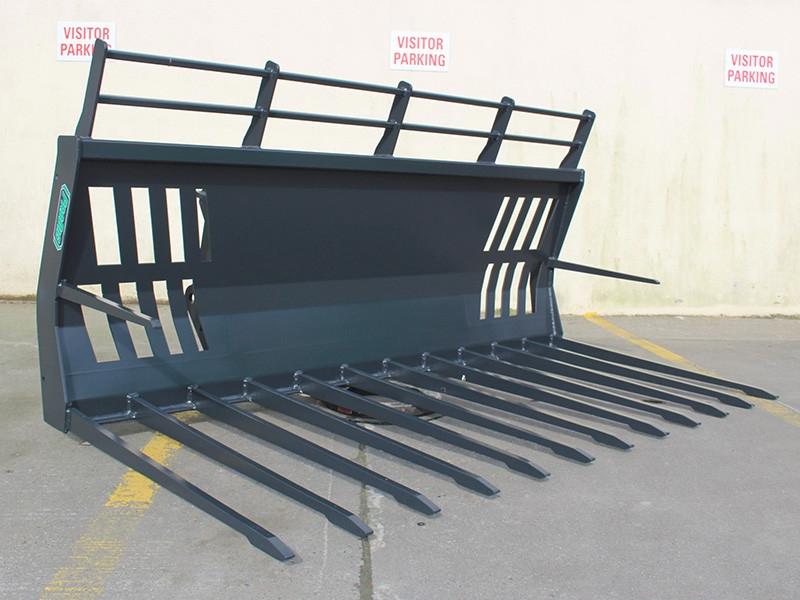

The Prodig Grass Fork is designed to utilize smaller machines when handling grass or maize silage such as tractor loaders or tele-handlers.
- Designed for farmers utilizing their own machinery for maize and silage.
- Available in widths from 2.2m to 3m.

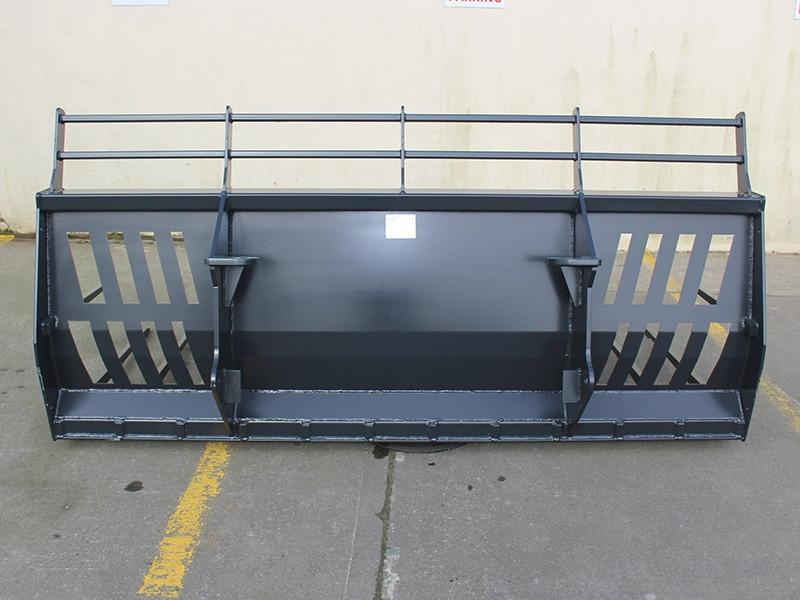

- Heavy duty fork back with vision windows to view outer tines when loading.

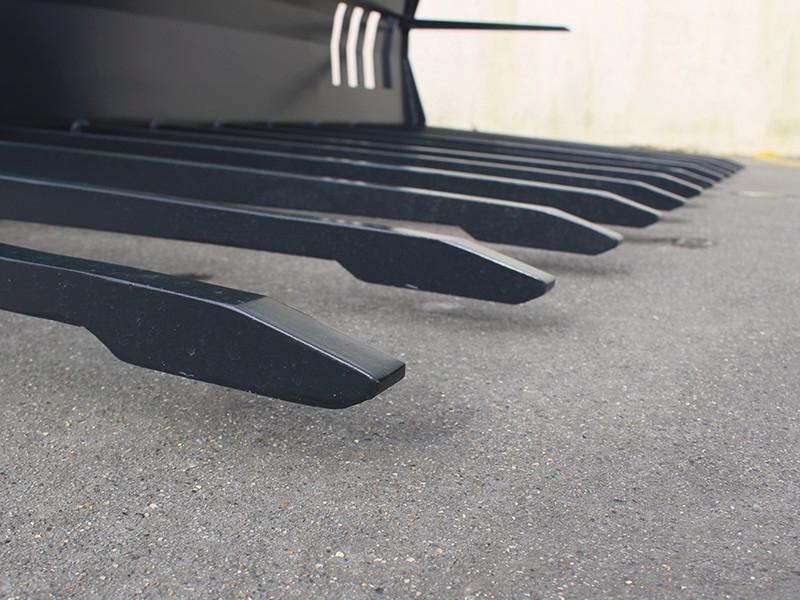

- 1250mm profiled 25mm Hardox tines used in bottom bar for long service life.
- Hardox tines are manufactured with replaceable wear tips meaning the tine never has to be replaced.

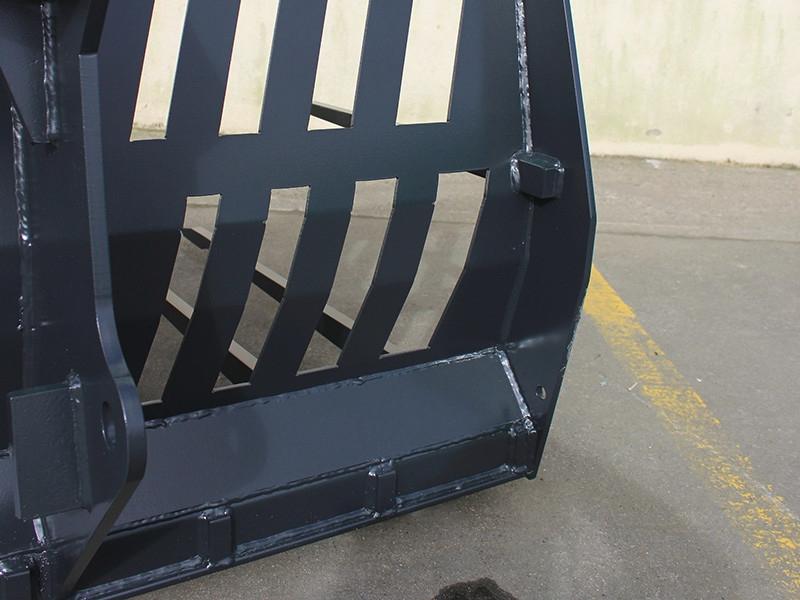

- Engineered and fabricated bottom section for superior structural strength and rigidity.

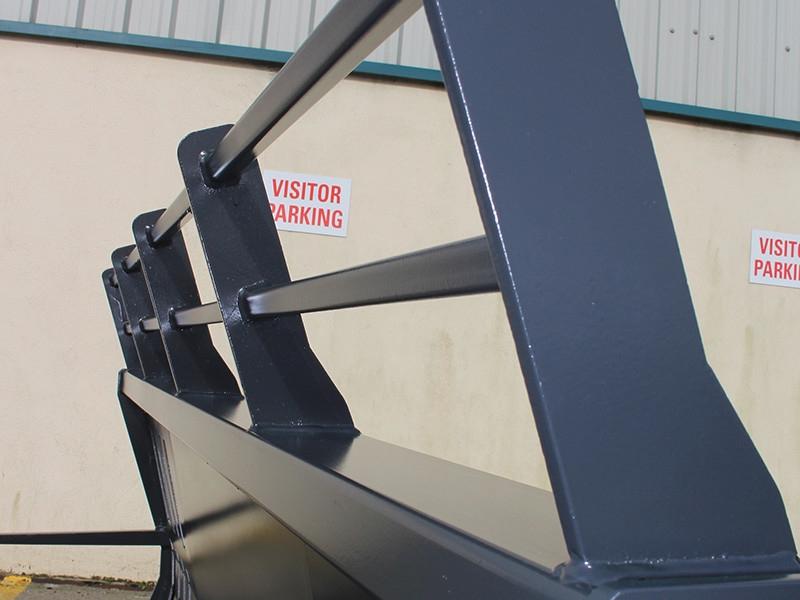

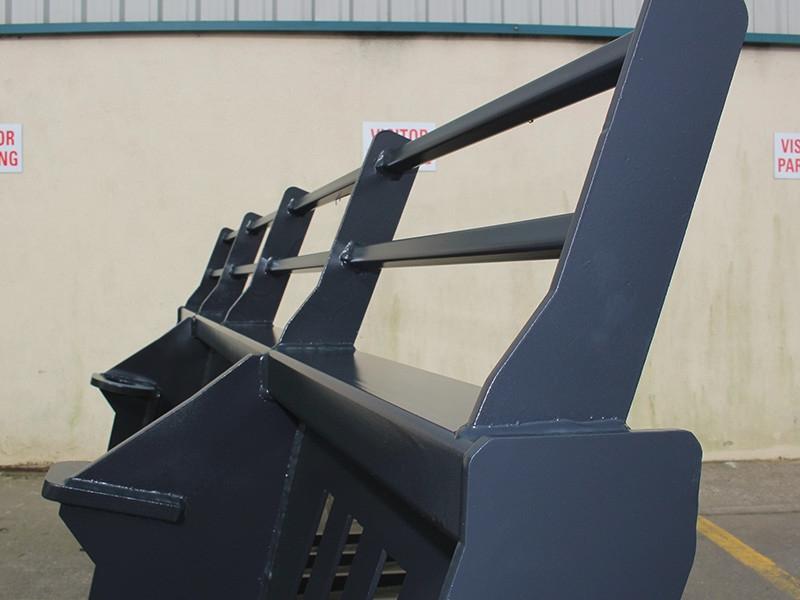

- Top spill frame as standard on all grass forks to increase volume and prevent spillage onto the loader.
- Bolt on hitch system to suit all machines.
- Max machine lifting capacity: 5000kg
Technical Data
| Grass Fork | GF2200 | GF2500 | GF2700 | GF3000 | |
| Width (mm) | A | 2200 | 2500 | 2700 | 2985 |
| Height (mm) | B | 1150 | 1150 | 1150 | 1150 |
| Depth (mm) | C | 1345 | 1345 | 1345 | 1345 |
| Weight (kg) | 360 | 405 | 420 | 445 | |
| Back (mm) | 6 | 6 | 6 | 6 | |
| Tine lenght | 1240 | 1240 | 1240 | 1240 | |
| Tine Width (mm) | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | |
| Number of tines | 10 | 12 | 12 | 13 |
All measurements approx. (±5mm, ±5kg).
Weight includes Bolt On Frame.
Weight excludes brackets as these vary.
