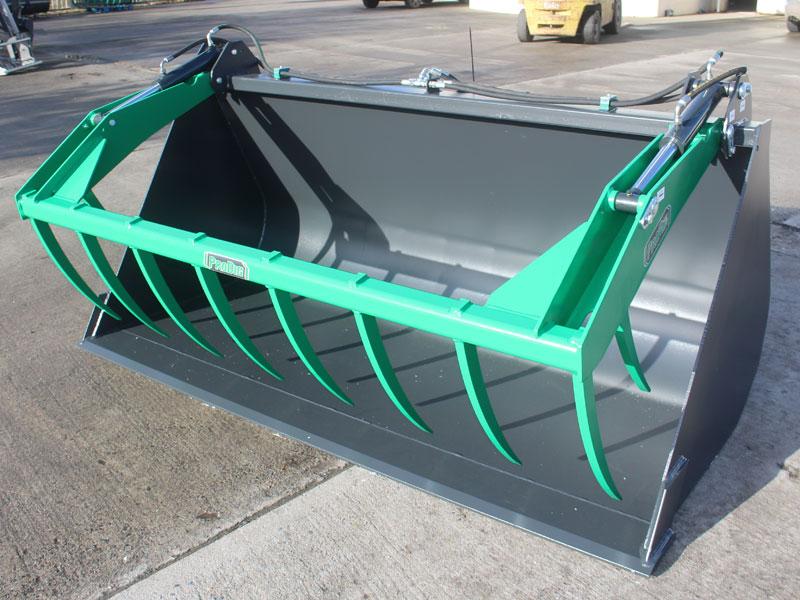

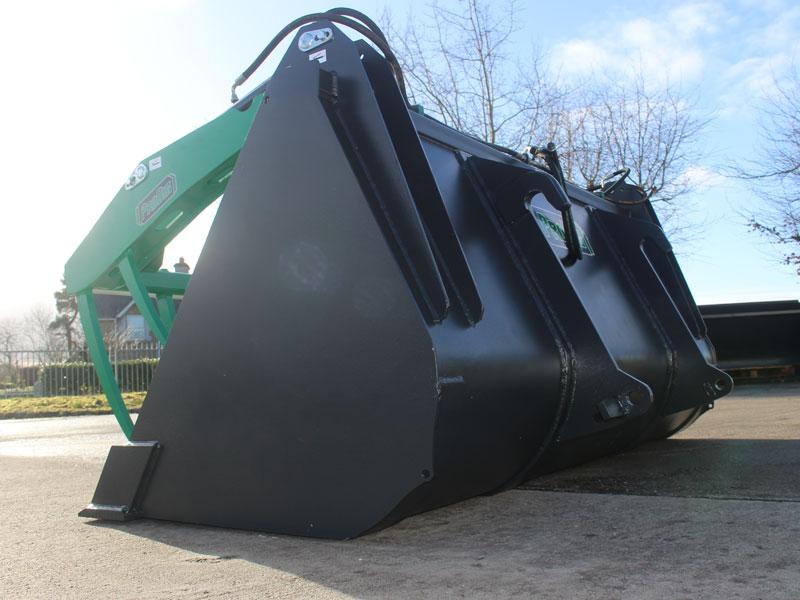

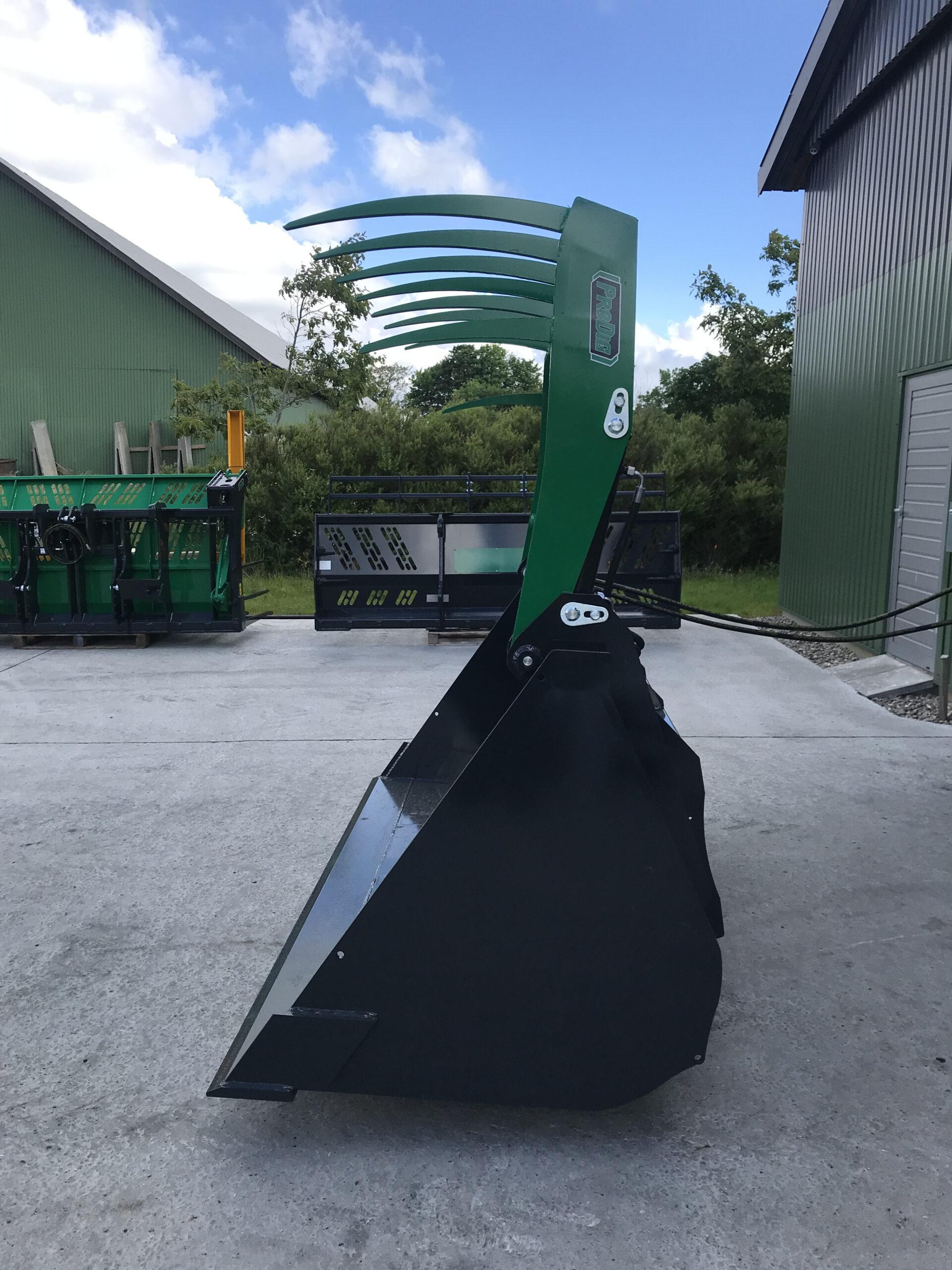

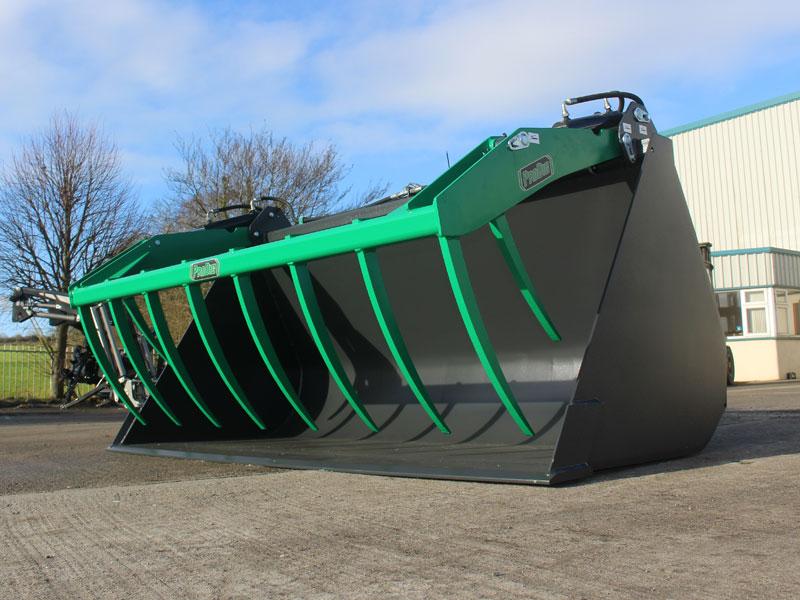

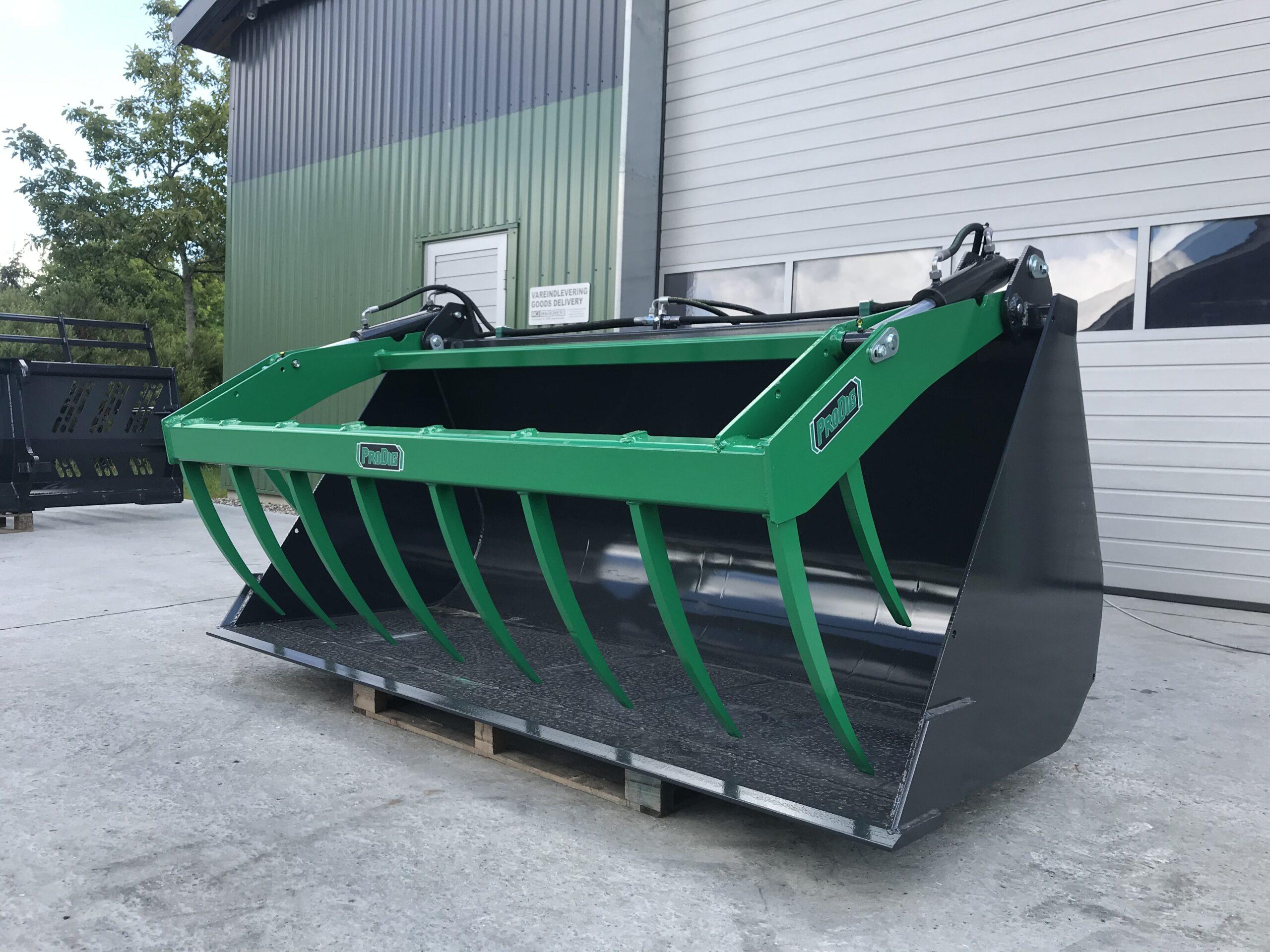

- Hydraulic grapples can be fitted to all of our GP range of Tele/Articulated loader buckets.

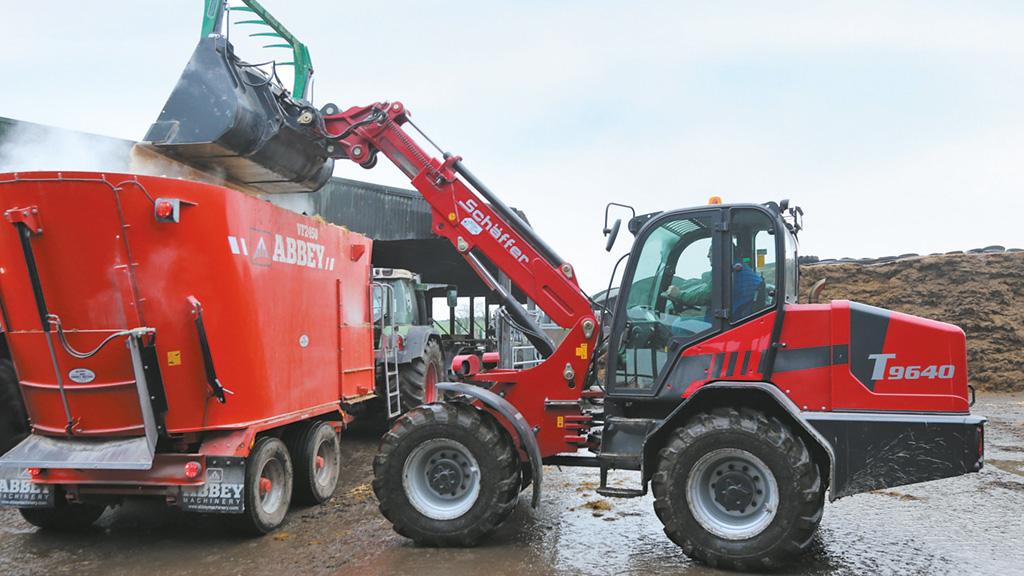

- Ideal for efficient handling of maize, manure, recycling etc… on wheel loader or tele-handler.
- Top mounted hydraulic cylinder configuration to increase downward force in piercing action.
- Capacity of bucket increased by 40% when handling loose materials.

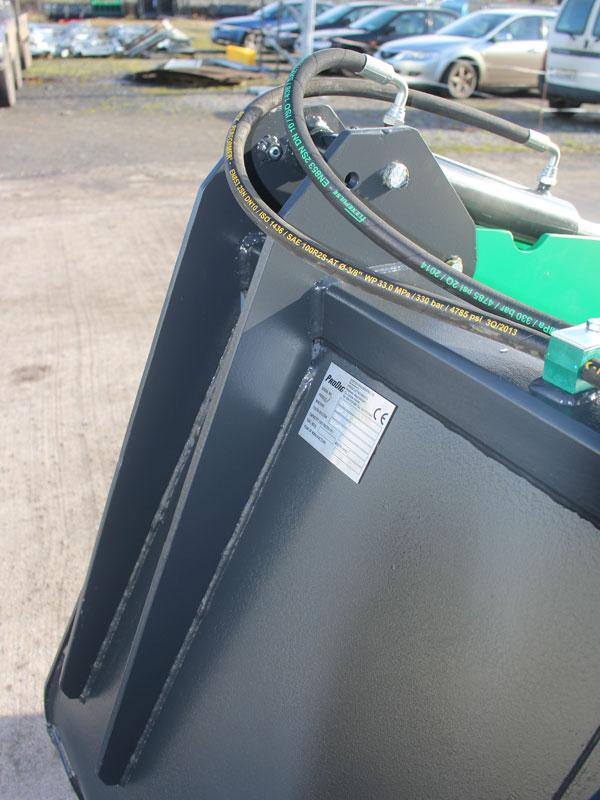

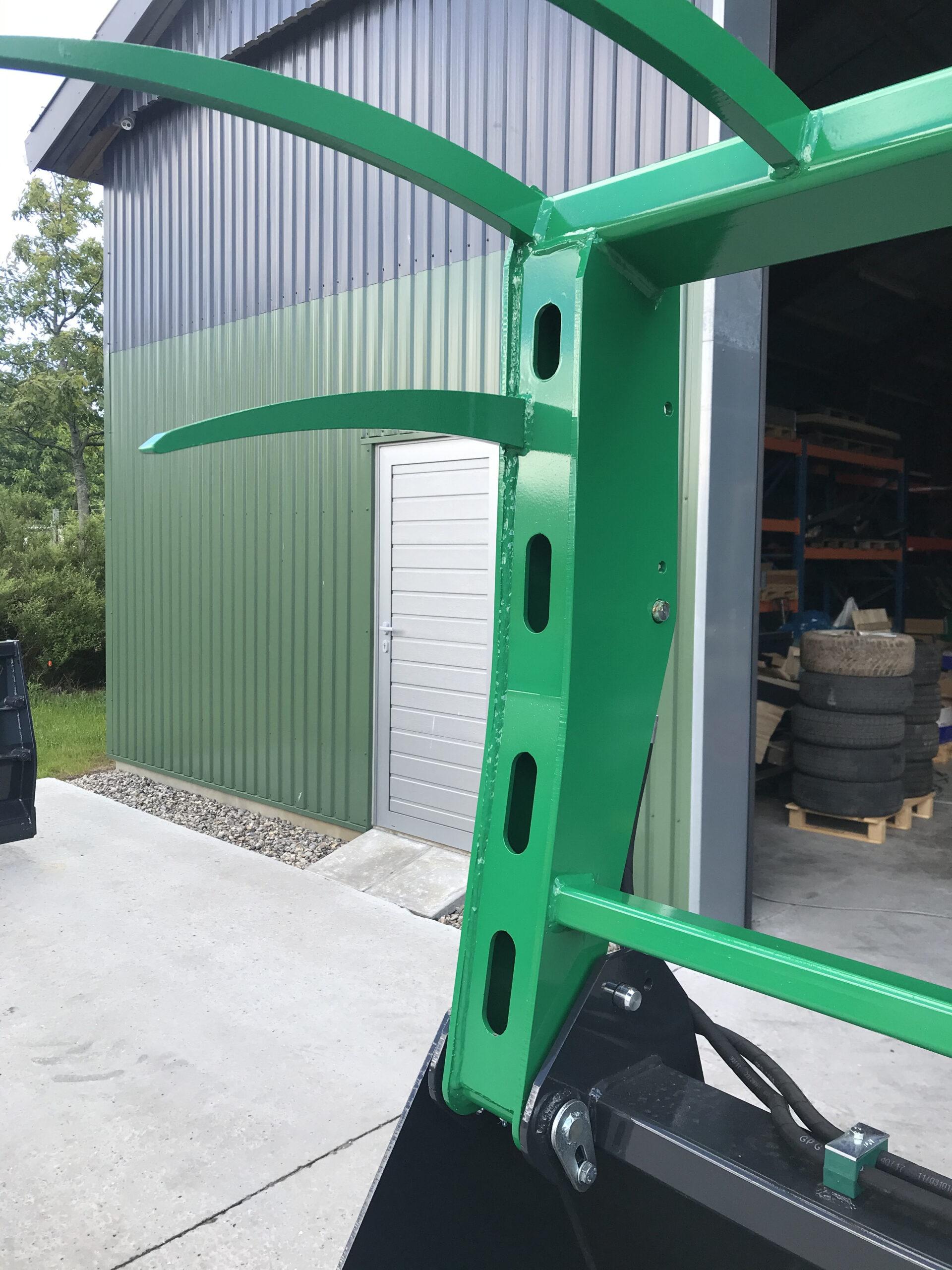

- Heavy duty 8mm wall box section, and 10mm plate in grapple construction.

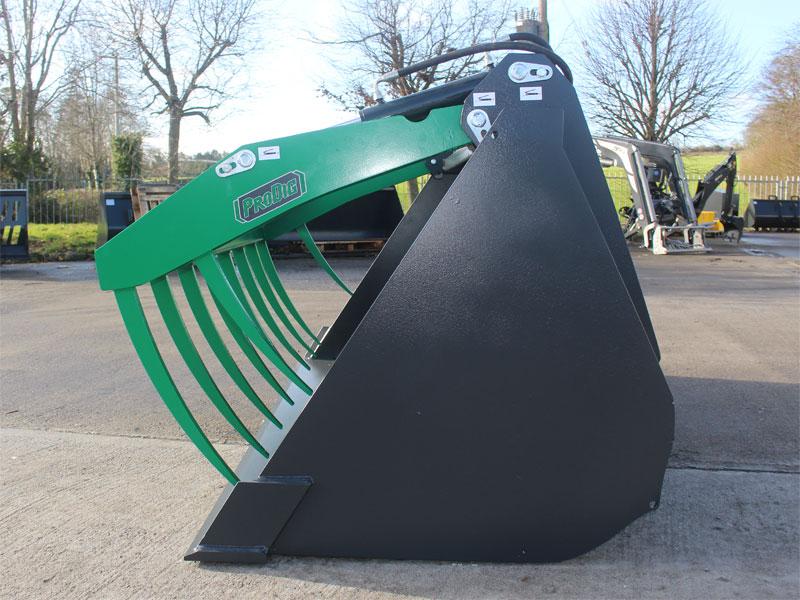

- 25mm thick curved profiled Hardox tines welded through box section.

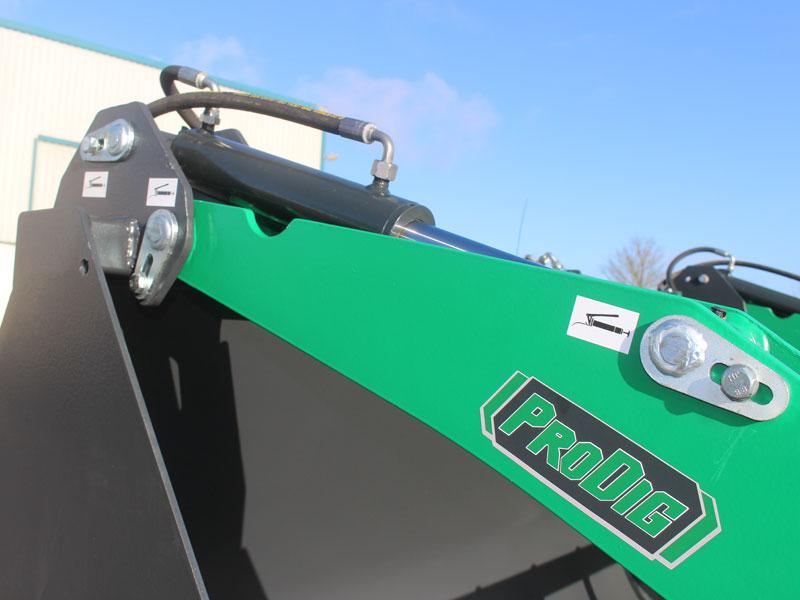

- Twin double acting hydraulic cylinders are mounted at the top of the bucket for extra downward force.
- All moving parts fitted with greasing points.
- Available with optional bolt in cut away sides.
- Not suitable for pit/clamp grass silage.
- Max machine lifting capacity: 5000kg
Technical Data
| Telehandler Grapple Bucket | |||||
| GPG 0.8 | GPG 1.1 | GPG 1.5 | GPG 1.7 | ||
| Width (mm) | A | 1880 | 2370 | 2500 | 2500 |
| Height (mm) | B | 1030 | 1030 | 1130 | 1200 |
| Depth (mm) | C | 1150 | 1150 | 1300 | 1370 |
| Opening hight | D | 1715 | 1715 | 1850 | 1990 |
| Grapple width (mm) | E | 1638 | 2048 | 2238 | 2238 |
| Capacity (m³) | 0.8 | 1.1 | 1.5 | 1.7 | |
| Weight (kg) | 410 | 475 | 615 | 670 | |
| Shell (mm) | 6 | 6 | 6 | 6 | |
| Sides (mm) | 8 | 8 | 8 | 8 | |
| Tine lenght | 540 | 540 | 750 | 750 | |
| Number of top tines | 6 (plus 2 side tines) | 7 (plus 2 side tines) | 8 (plus 2 side tines) | 8 (plus 2 side tines) | |
| Tine Spacing (mm) | 295 | 310 | 290 | 290 | |
| Tine Width (mm) | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | 25mm HARDOX | |
| Cutting edge | 150×20 | 150×20 | 200×25 | 200×25 | |
| Number of cylinders x Diameter (mm) | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod | 2x70mm Bore, 40mm Rod | |
| *Maximum working pressure (BAR) | 200 | 200 | 200 | 200 | |
| Max machine lifting capacity (kg) | 5000 | 5000 | 5000 | 5000 | |
All measurements approx (±5mm, ±5kg)
Weight may differ brackets as these vary,
Please contact us for more accurate spec
*Machines operating above 200 BAR will require a pressure relief valve.
