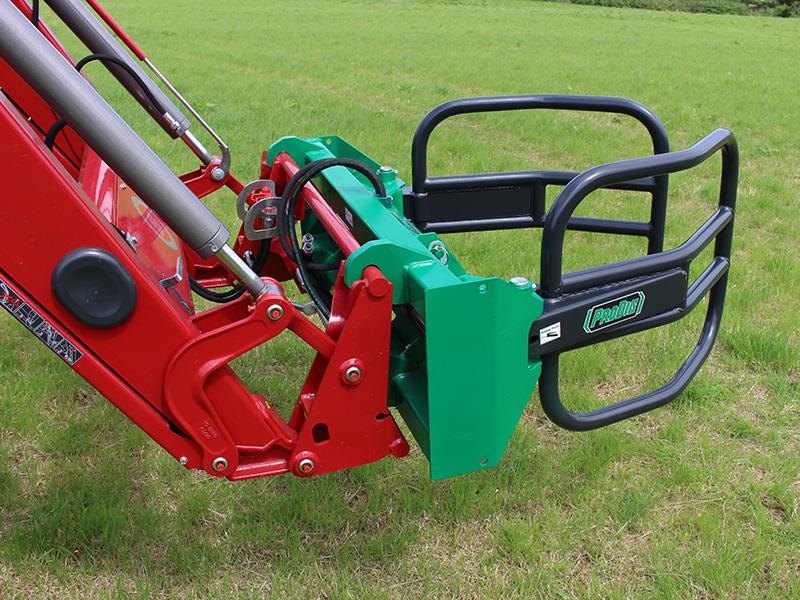

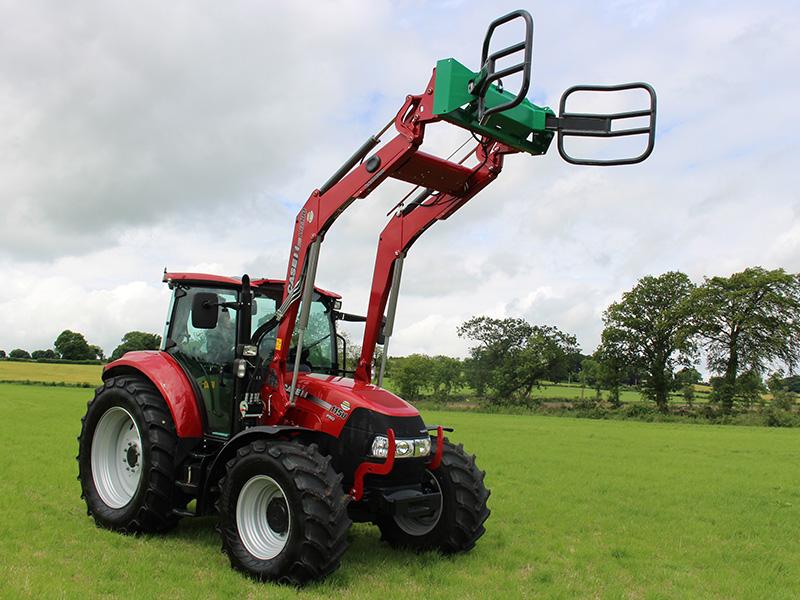

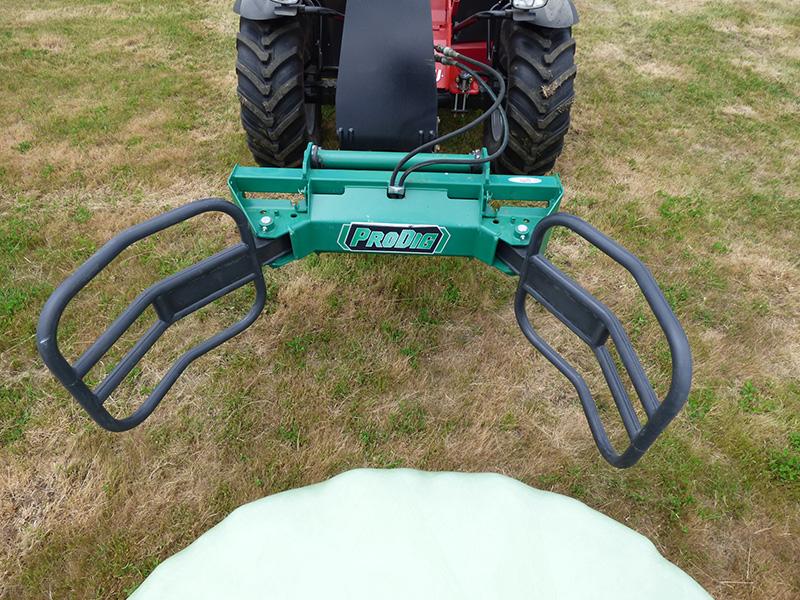

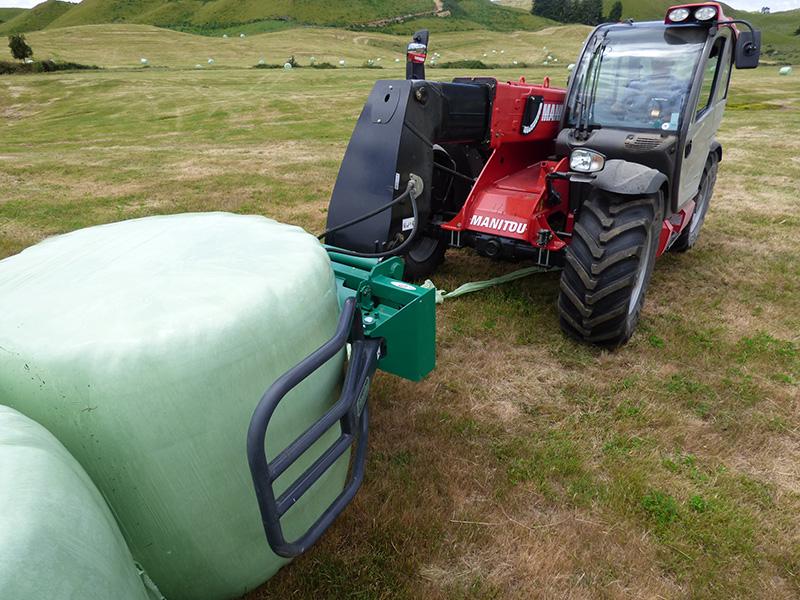

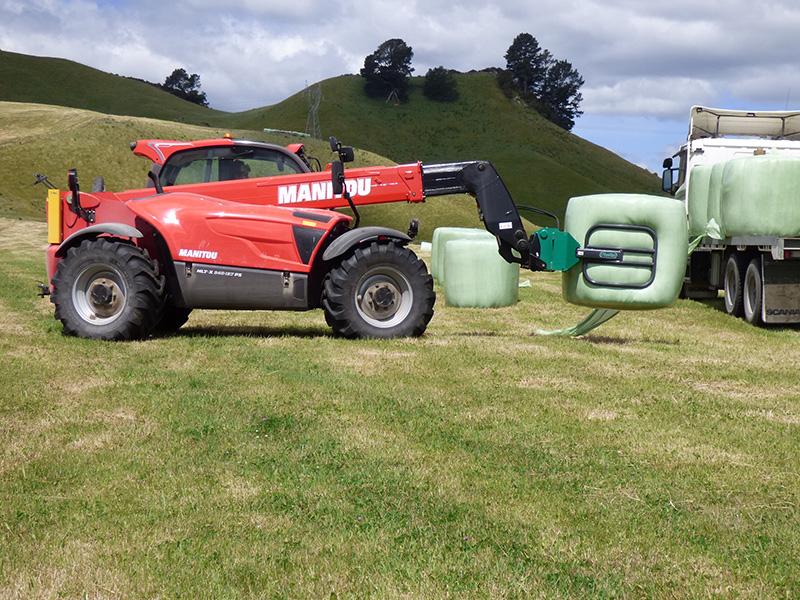

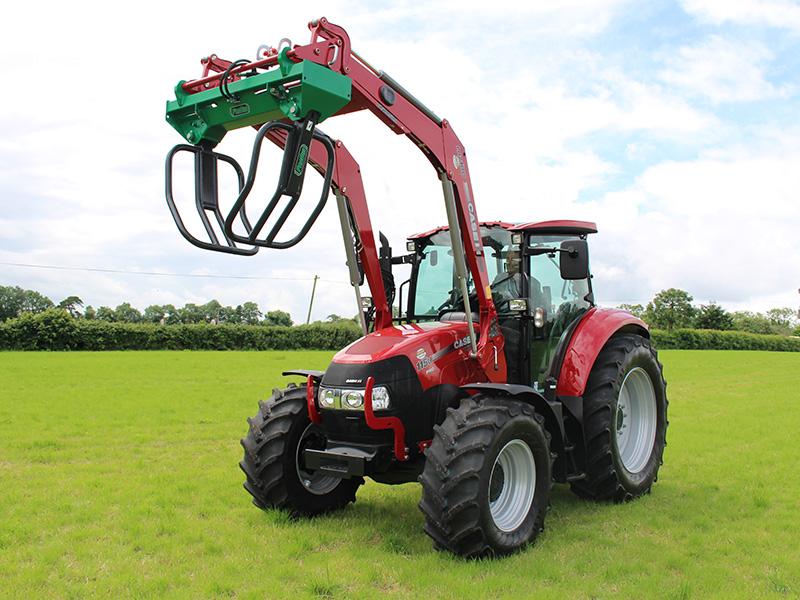

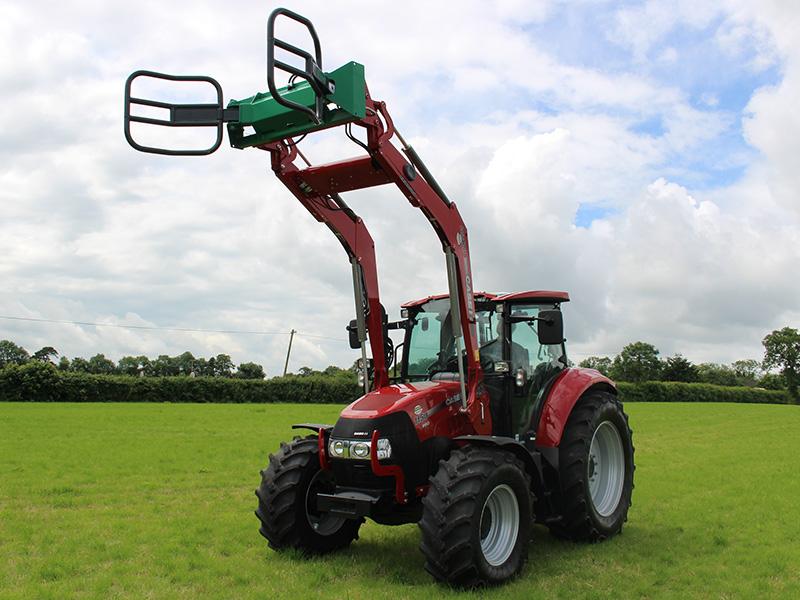

The Prodig Bale Grab is an extremely robust unit for moving bales with minimal damage to the plastic wrap. The unit is suitable for tractor loaders or tele-handlers & articulated loaders.

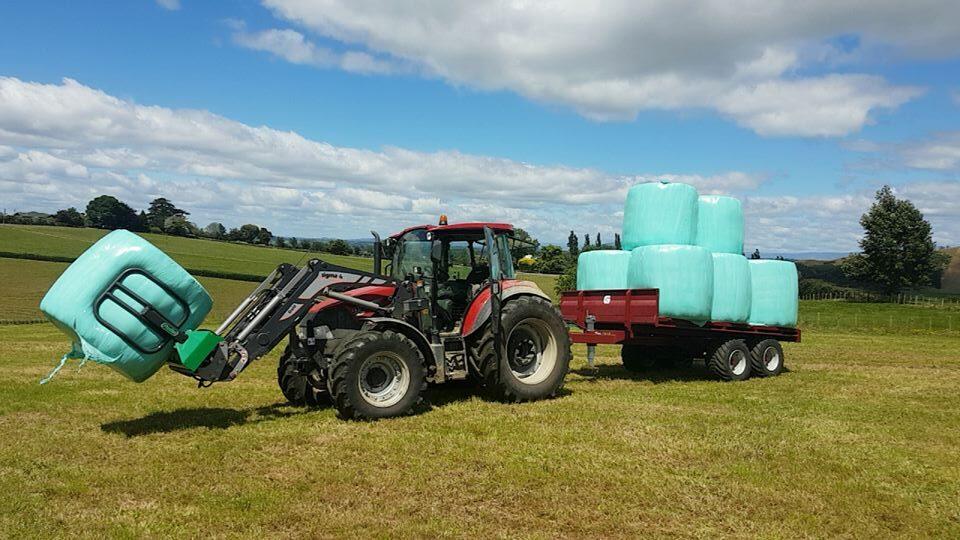

- Hydraulic bale grab for quick and efficient moving and stacking of silage or straw or hay bales.
- Narrow frame to allow for easy stacking and removal of bales without touching adjacent bales.

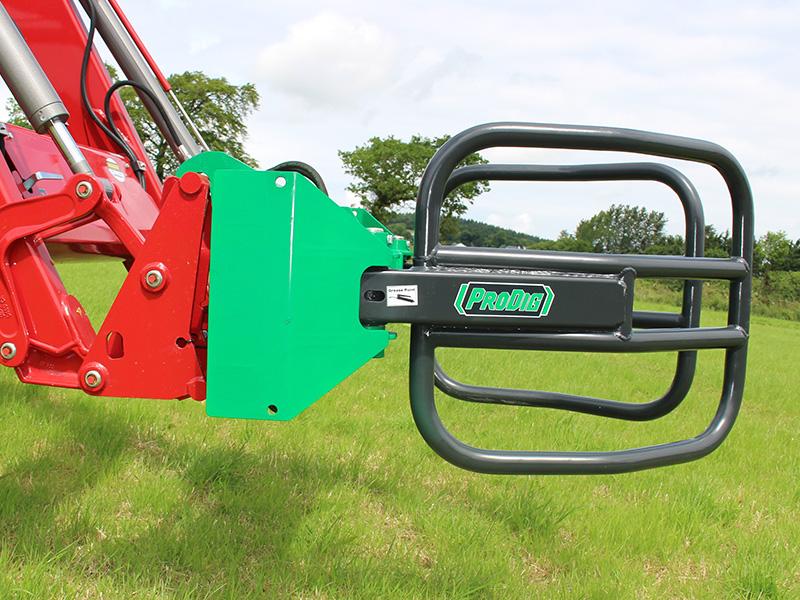

- Wrap damage is eliminated by our tubular arms covering a large area of the bale wrap.
- Slim arm profile to allow squeezing between bales easier.

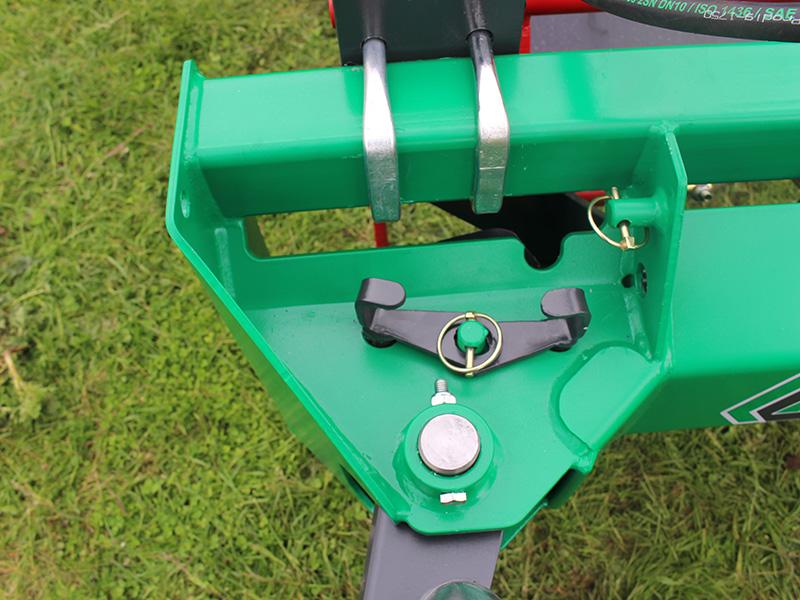

- Arms can be locked in multiple positions on either side for stacking purposes.

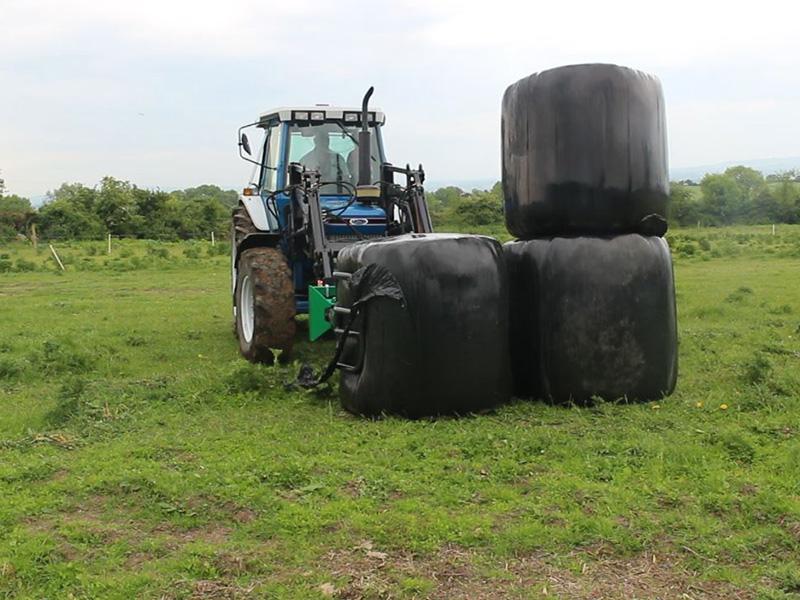

- The grab allows for stacking bales on their end or on their side.
- Excellent width capabilities from 1810mm to 78mm.
- Can handle round or small square bales for loading or unloading.
- The frame depth is kept at a minimum, so the bale sits closer to the machine.
- Optional, hydraulic cylinder with check valve for constant grip and safety.
- Bushings and grease points on all pivot points.
- Bolt on hitches available to fit all machines.
Technical Data
| Bale Grab | BG 500 |
| Height (mm) | 435 (Main Frame) |
| 700 (Arms) | |
| Width (mm) | 1372 |
| Depth (mm) | 216 (Depth of main frame) |
| 1369 (Depth of full assembly) | |
| Weight (kg) | 177 |

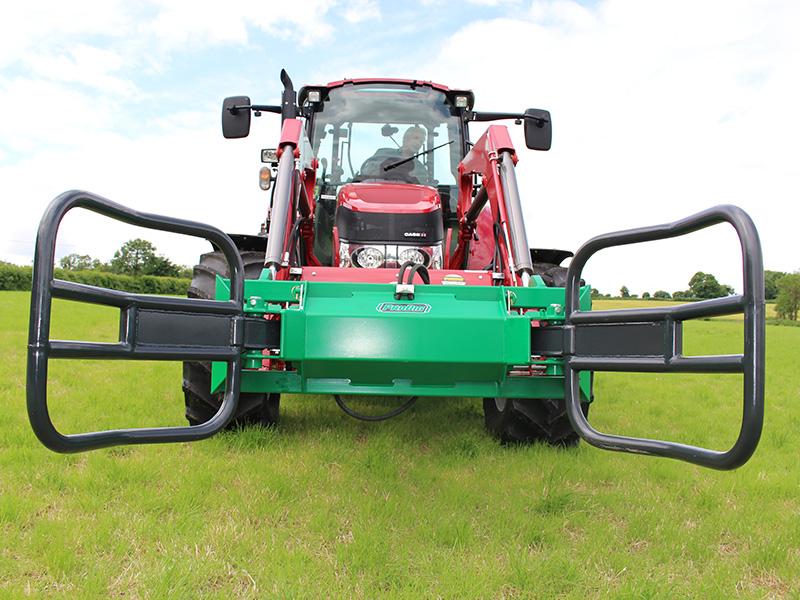

| Arms Open Spacing (mm) | 1832 |

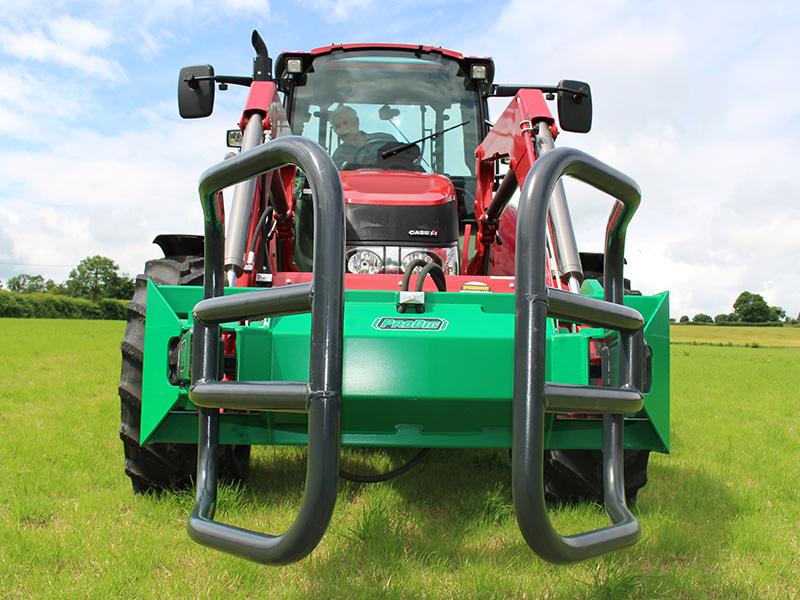

| Arms Closed Spacing(mm) | 78 |
| Number of cylinders x Diameter (mm) | 1 x 70mm Bore |
| Maximum Capacity (kg) | 1350 |
| *Maximum working pressure (BAR) | 200 BAR |
| Max bale Size (mm) | 1525 x 1525 (5ft x 5ft) |
All measurements approx (±5mm, ±5kg), Weight excludes brackets as these vary.
*Machines operating above 200 BAR will require a pressure relief valve
